Description

Description


Machine Structure and Feature For Packaging Machine
  1. New design, compact, solid, reliable, stable, low noise, and high efficiency.

  2. Weigher as measuring system.

  3. PLC operation with touch screen control, easy to operate and efficient.

  4. Photoelectric sensor control system, accurate positioning.

  5. Servo motor to control film feeding system, higher accuracy, higher speed.

  6. Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.

  7. Digital temperature controller, easy to operate.

  8. Auto counting system, easy to monitor quantity of output.

  9. Automatic measuring, filling, sealing, and date code printing.

  10. Bag length is controlled on screen display.

  11. A few automatic alarming function, reduce wastage to minimum.

Machine Structure and Feature For 10 Head Weigher
  1. Multi-mouth feeder can dispense products into each linear feeder pan effectively.

  2. Specially designed U-shaped linear feeder pans can avoid leaking problem.

  3. Weigh hopper followed by a discharge will effectively prevent blockage.

  4. Mould making process and uniformed design standards contribute to better interchangeability for spare parts.

  5. Aluminum thickened middle standing enchances the strength of the machine, making the time for stabilizing hoppers shorter.

  6. Weighing type for material detection is available, which can make accurate control of feeding time and material thickness and ensure weighing accuracy.

Parts Included In System
  1. EM-420 machine

  2. 10 head wigher

  3. Z type bucket conveyor

  4. Vibration feeder

  5. Finished product conveyor

  6. Supporting platform (optional)

Optional Accessories
  1. Hole Punching Device

  2. Sachet Linking Device

  3. Easy Tear Device

Optional Equipment
  1.  Check Weigher

  2.  Metal Detector

  3.  Air Compressor

Scope of Application

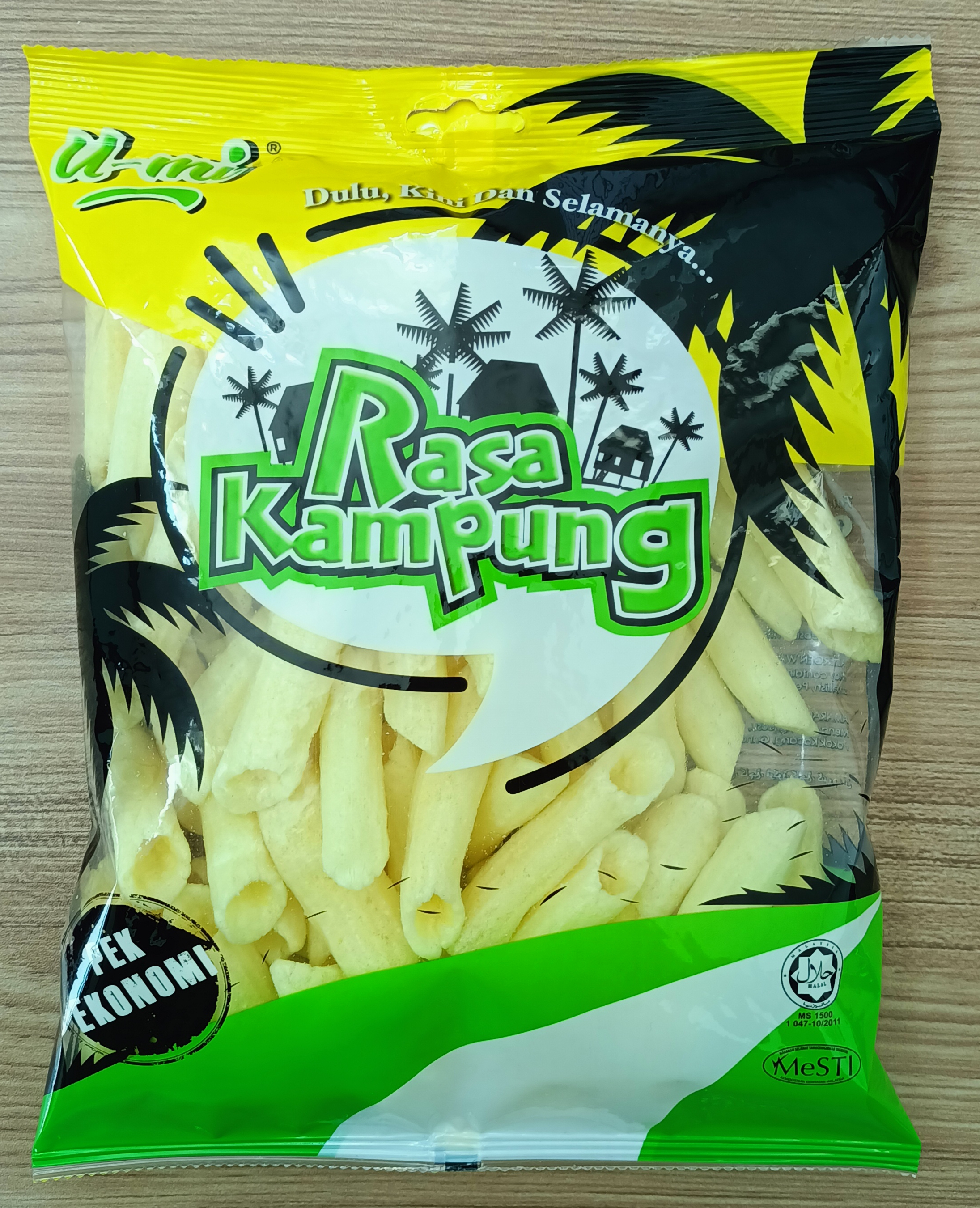

  1. Objects which required high precision measurement or fragile objects such as puffed food, snacks, chips, nuts, medicine, hardware parts, etc.

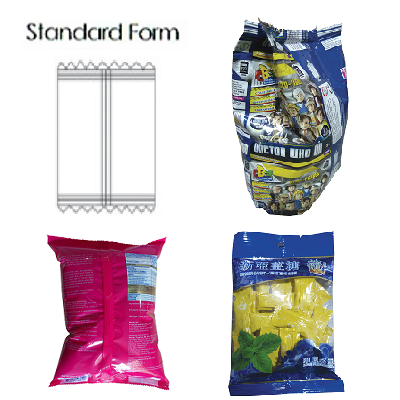

Form of Packaging
Pillow sealed bag or gusset bag.


Packaging Machine
Model      EM - 420W EM - 520W EM - 720W
Product To Be Packed         Snack / Chips / Granules Snack / Chips / Granules Snack / Chips / Granules
Capacity 10 - 20 bags / min 10 - 20 bags / min 10 - 20 bags / min
Packaging Weight   100 - 1000g 100 - 2000g 150 - 4000g
Film Width 420mm 520mm 720mm
Bag Length 60 - 300mm 80 - 350mm 100 - 450mm
Bag Width 60 - 200mm 80 - 250mm 100 - 350mm
Film Material Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE) Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE)
Power Sauce 200V / 50hZ / 2.2kW 220V / 50Hz / 3kW 200V / 50Hz / 3.6 kW
Air Consumption 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min 0.8Mpa , 0.4m3 / min
Machine Weight 450kg  750kg 900kg
Machine Dimension L1260 * W1050 * H1560mm L1500 * W1080 * H1500mm L1700 * W1620 * H1800

10 Head Weigher
Filling System 10 Head
Measuring Range 15 - 1500g (depend on product density)
Accuracy ± 0.3 - 1%
Speed max 60 dosing / min
Hopper Volume 1.6L / 2.5L
Number of Setting 50
Power Source 220V / 50Hz / 1.5kW
Machine Dimension L1720 x W1100 x H1230 mm
Material Stainless Steel 304
Machine Weight 480kg
