EM-420 Pouch Packaging Machine | Piston Filling | Conveyor | Liquid / Paste / Sauce | FULLY AUTOMATIC SYSTEM

Description

1. New design, compact, solid, reliable, stable, low noise, and high efficiency.

2. Piston pump as measuring system.

3. PLC operation with touch screen control, easy to operate and efficient.

4. Photoelectric sensor control system, accurate positioning.

5. Servo motor to control film feeding system, higher accuracy, higher speed.

6. Inverter to control motor speed, resulting a stable operation, lower noise, and lower failure rate.

7. Digital temperature controller, easy to operate.

8. Auto counting system, easy to monitor quantity of output.

9. Automatic measuring, filling, sealing, and date code printing.

10. Bag length is controlled on screen display.

11. A few automatic alarming function, reduce wastage to minimum.

1. EM-420 machine

2. Piston Pump

3. Finished product conveyor

4. Storage tank (optional)

5. Piping connected from storage tank to machine (optional)

1.  Air Compressor

2.  Additional piston pump – for higher speed and capacity.

1.   Liquid or Paste



Model	EM - 420P	EM - 520P	EM - 720P	EM - 420PPE
Product To Be Packed	Liquid / Sauce	Liquid / Sauce	Liquid / Sauce	Liquid / Sauce * EM - 420PPE is specially designed for PE bag *
Capacity	8 - 12 bags / min	8 - 12 bags / min	8 - 12 bags / min	8 - 12 bags / min
Packaging Weight	100 - 1000 ml	100 - 2000 ml	150 - 4000 ml	100 - 1000 ml
Film Width	420mm	520mm	720mm	420mm
Bag Length	60 - 300mm	80 - 350mm	100 - 450mm	60 - 300mm
Bag Width	60 - 200mm	80 - 250mm	100 - 350mm	60 - 200mm
Film Material	Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE)	Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE)	Heat - sealable laminated film (e.g. OPP / PE , OPP / CPP , PT / PE)	Monolayer LLDPE
Power Source	200V / 50Hz / 1.8kW	220V / 50Hz / 3kw	220V / 50Hz / 3.6kW	220V / 50Hz / 1.8kW
Air Consumption	0.8Mpa, 0.4m3/min	0.8Mpa, 0.4m3/min	0.8Mpa, 0.4m3/min	0.8Mpa, 0.4m3/min
Machine Weight	450kg	750kg	900kg	400kg
Machine Dimension	L1260 * W1050 * H1350	L1500 * W1080 * H1500	L1700 * W1620 * H1800	L1260 * W1050 * H1560

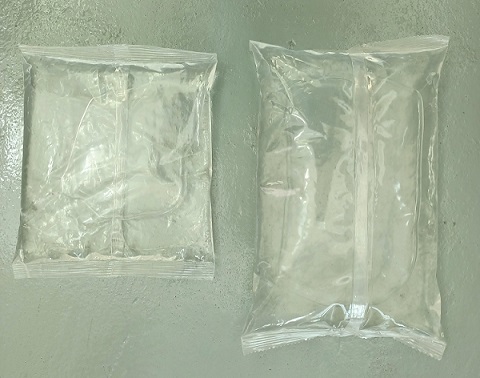

Form of Packaging
