SCHMALZ Bin Picker SBPG
Category: Handling Set
Available
For more information, visit our official website at
sktec.com.my
Description
Bin Picker SBPG
Vacuum gripper ready-to-connect for the automated ''grip into the box''
Removal from containers with a random or pre-sorted packing pattern
Handling of freeform parts thanks to a flexible suction cup that adapts optimally to the contour of the workpiece
The low weight makes it ideal for stationary handling tasks with collaborative robots
Product Highlights
Compact, efficient and easy to clean thanks to integrated vacuum generation
Optimal sealing and holding force even when gripping corners and edges thanks to special bin picking suction cup
Fast quality control of workpieces due to the optional swivel module
Low weight and dynamic geometry thanks to additive manufacturing
Safe for human robot collaboration

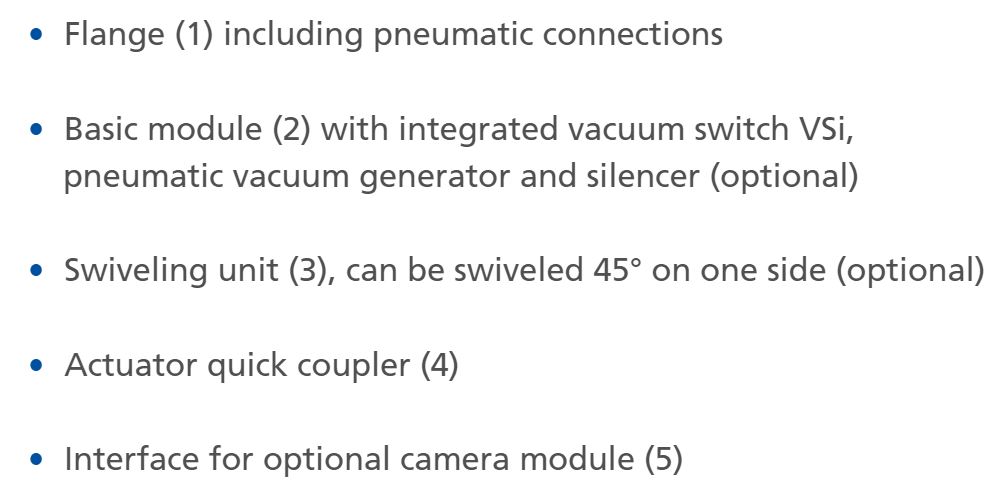

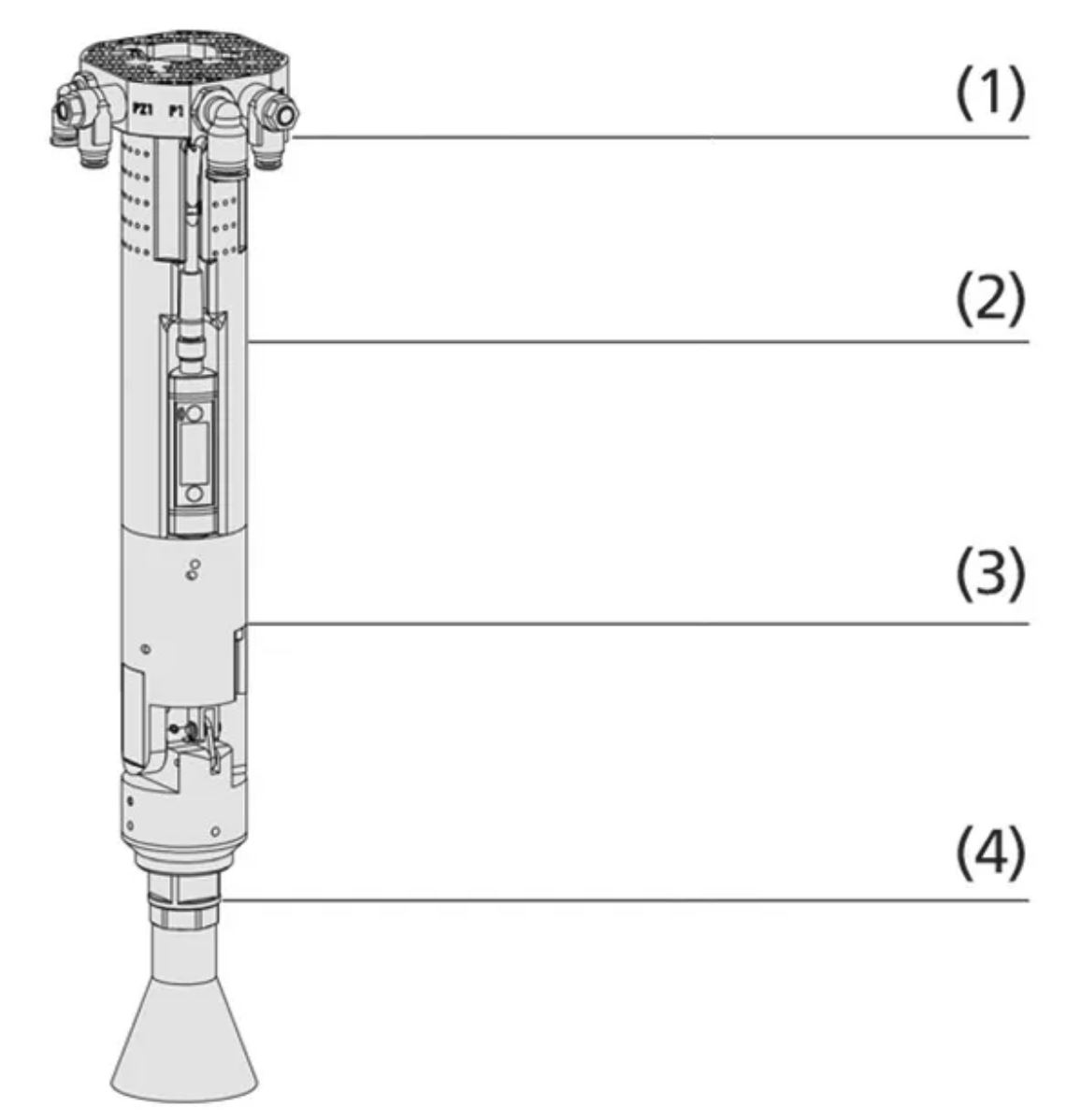

Design
Technical Data
Suction rate up to 180 l/min
Integrated or external vacuum generation
Sealing element: Bin-picking suction cup with quick-change function
