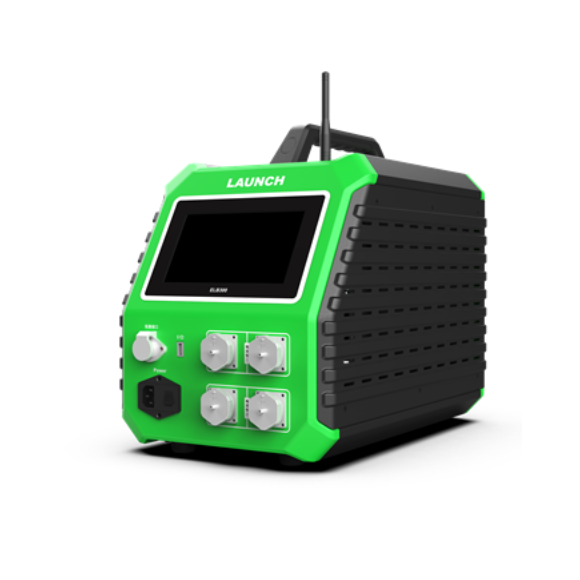

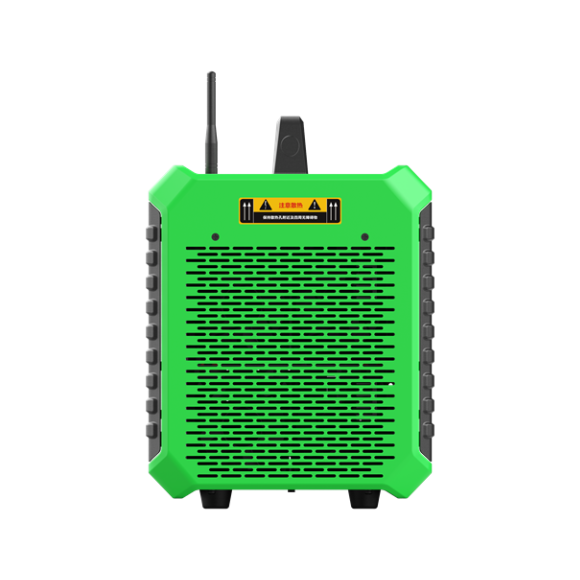

ELB300

EV Battery Pack Cell Equalizer(24 Channels)

FEATURES

The 7-inch LCD touch screen and the intuitive menu simplified the operation.
Portable, easy to carry and transport.
Applied to all common lithium battery packs testing with various voltage levels.
Equalizing maintenance test mode can activate the lithium battery performance completely.
Support intelligent equalizing function, and equalizing maintenance parameter customization.
Adopt wave width modulation technology, high efficiency, high power factor, low noise, and low electromagnetic interference.
Support multiple protection design and alarm settings of voltage, current, temperature abnormal to protect the battery and the balancer.
Support the safety protection functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection and overheating protection.
Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.

SPECIFICATION

Display	7'' capacitive LCD touch screen, 800*480
Power Input	Single phase AC 90~264V, 40~60Hz
Charging & Discharging Voltage Range	DC 1.8~4.2V
Voltage Measurement Accuracy	±0.1%FS±2mV(maximum range 5V)
Charging & Discharging Current Range	0.1~5A(Max)
Current Measurement Accuracy	±0.1%FS±0.05mV(maximum range 5A)
Battery Temperature Detection Accuracy	±2℃(-25~+85℃) Charge and discharge temperature range can be set
The Number of Channels	2*12
Charging & Discharging Power	600W Max
Battery Interface	16Pin, 24Pin
PC Data Communication	TCP/IP, USB-Device
Wireless Communication	WIFI and BT(WIFI external antenna)
Charging Mode	Constant current charging + constant voltage charging
Discharging Mode	Constant current (constant power, constant resistance discharge can be set)
Protection Function	Input overcurrent protection, overvoltage protection, output overcurrent protection, overtemperature protection
SAFETY TEST
Breaking Down Test	AC input-case: 2200Vdc 1 min AC input-case
	DC input-output: 2200Vdc 1 min DC input-case
WORKING ENVIRONMENT
Radiation Method	Forced air cooling
Temperature	Working temperature range: -5~40℃ Storage temperature: -20~70℃
Humidity	Relative humidity 0~90%(40±20℃)
Elevation	Rated altitude 2000m
SIZE AND WEIGHT
Dimensions/Weight	380275460(mm)/17kg
