The SP-UV 200 is a single beam spectromphotometer in the production series of Spectrum Instruments. It gets a technology patent - ''space seperated double beam, Non-Symmetric vertical optical path''. Compared with traditional double beam technology, simplified optical path improves reliability. The''width narrow and depth deep'' design saves placement room.

Features:
- SIngle Beam Spectrophotormeter
- Wavelength range 200 -1100rpm
- Spectral Bandwidth 5nm
- Motorized wavelength setting
- Digital 2 Line LCD Display with keypad
- Detector Silicon Photodiode

Performance Specification:
Optical Ssystem: 1200 lines/mm diffraction grating monochromator
Light path: 10mm -100mm
Spectral bandwidth: 5nm
Wavelength range: 200 - 1000nm ( 0.1nm increament )
Wavelength ccuracy: +- 1.0nm
Wavelength repeatability: +- 0.5nm
Stray light: < 0.3% T ( at 220nm Nal & 340nm, NaNO2 )

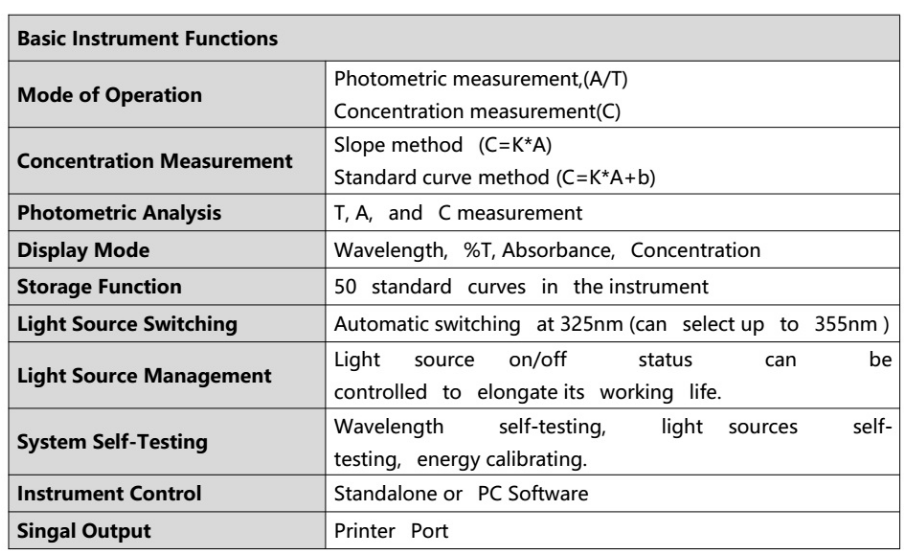

Product Details:
