Features

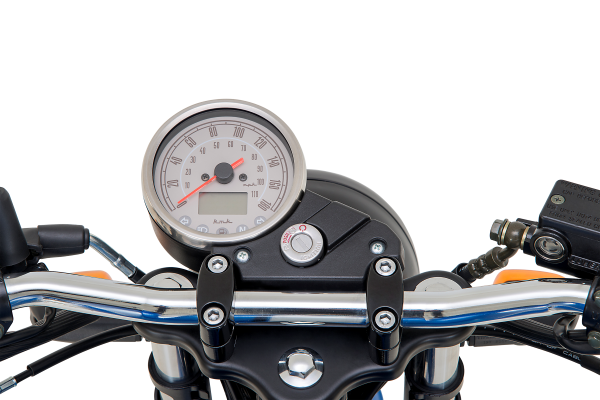

Spedometer
Combination of digital and monolog
Headlamp
Classic Design Headlamp

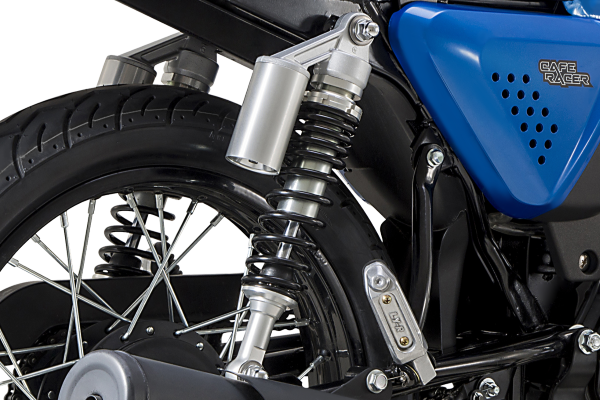

Suspension
Double Suspension with heavy duty and better absorption

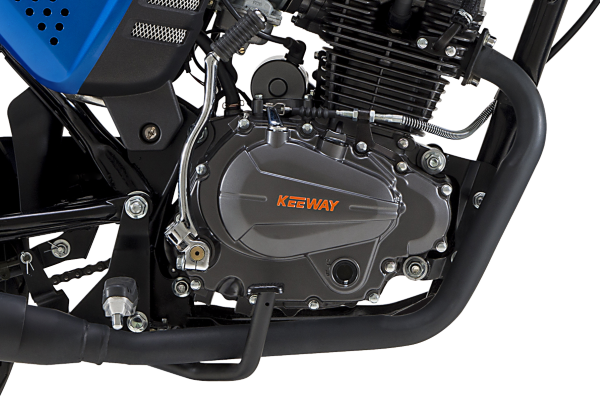

Engine
149cc,Single Cylinder,4-Stroke and 2-Valve Engine
Specification
| Engine |
|
|
| Type |
: |
1-Cylinder, 4 Stroke, SOHC, Air Cooled |
| Bore X Stroke |
: |
62 x 49.5mm |
| Displacement |
: |
149 c.c. |
| Max Power |
: |
8.4 kW @ 8,000 rpm |
| Max Torque |
: |
11.1 N.m @ 6,000 rpm |
| Compression Ration |
: |
9.3:1 |
| Fuel System |
: |
Carburetor |
| Transmission |
: |
5 Speed, Constant Mesh |
| Lubrication System |
: |
Pressure splash |
| Clutch Type |
: |
Wet Multiple Plate |
| Final Drive Type |
: |
Chain |
| Starter |
: |
Electric & Kick |
| Chassis |
|
|
| Frame Type |
: |
Bassinet type |
| Front Suspension |
: |
Telescopic Forks |
| Rear Suspension |
: |
Shock Absorber |
| Front Brake |
: |
Disc |
| Rear Brake |
: |
Drum |
| Front Tyre |
: |
2.75-17 |
| Rear Tyre |
: |
2.75-17 |
| Dry Weight (kg) |
: |
108 |
| Seat Height (mm) |
: |
770 |
| Overall Length (mm) |
: |
1,930 |
| Overall Width (mm) |
: |
786 |
| Wheelbasew (mm) |
: |
1,270 |
| Ground Clearance (mm) |
: |
160 |
| Fuel Capacity (Liter) |
: |
12.1 |
| Battery |
: |
12V-5Ah |
