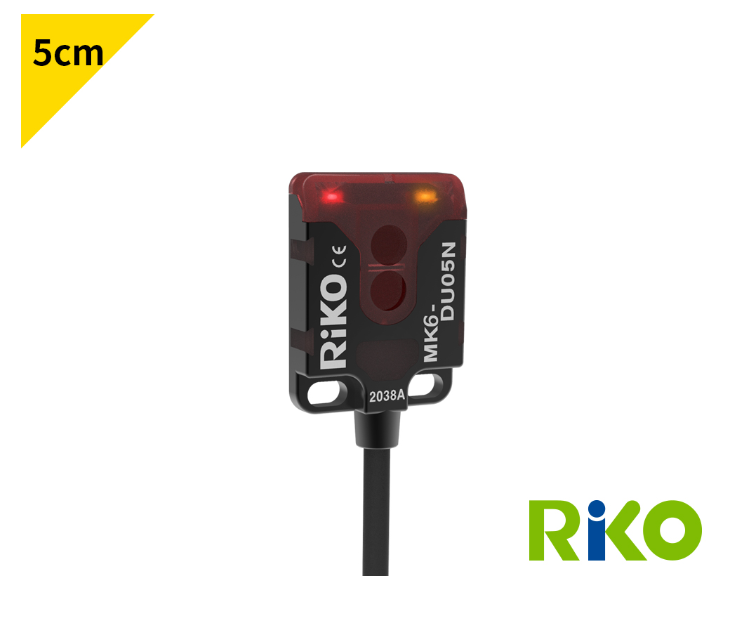

| Model | Miniature Photo Sensor |
|---|---|
| Sensing distance | Diffuse reflection |
| Detection distance | 5cm, paper 10x10cm |
| Light Emitter | 940 nm VCSEL |
| Operating voltage | DC12 ~ 24 V±10% (Ripple P-P：10% Max.) |
| Current consumption | 25 mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN L.on |
| Protection circuit | Reversed supply circuit protection, short circuit protection output. |
| Reaction time | 15 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ +60℃ ( No freezing allowed ) |
| Operating temperature | 35%~ 85% RH |
| Protection degree | IP67 |
| Casing material | ZINC / PC |
| Wiring method | Ø2.4 x 2M / 3-wires |
