KROHNE OPTIFLUX 1050 Electromagnetic Flowmeter (Compact Version)

TECH IMPRO AUTOMATION SOLUTION SDN BHD

Category: FLOWMETER Available

For more information, visit our official website at improtechonline.com

Visit Official Site Contact Us

Description

KROHNE Distributor Malaysia
OPTIFLUX 1050

Electromagnetic flowmeter for basic applications with conductive liquids

Cost-effective flow measurement of liquids (≥5 μS/cm) up to +120°C / +248°F
Extra isolation of electronics for use in high humidity areas
Wafer-style design: DN10…150 / ⅜…6'', max. PN40 / ASME Cl 300
4…20 mA, pulse, frequency, status, HART®, Modbus

General information

Product type	Flowmeter
Product family name	OPTIFLUX
Product positioning	For basic applications with conductive liquids
Measurement principle	Electromagnetic
Measured media	Liquids

Operating conditions

Process pressure	max. 16 barg/ 230 psig
Process temperature	-25…+120°C/ -13…+248°F

Materials

Liner	Perfluoroalkoxy alkane (PFA)

Process connections

Flange connections	EN (1092-1): DN10…150 ASME (B 16.5): ⅜…6'' JIS (B 2220): 10…150A
Other connections	Sandwich (wafer) connection: DN10...150 ⅜…6'' 10…150A

Approvals/Standards

Certificates/Approvals Marine	ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS

Communication

Analogue outputs	4…20 mA
Discrete outputs	Pulse, Frequency, Status
Digital outputs	HART®, Modbus RTU

Videos

myDevice

OPTICHECK

PICK briefly explained - Digital access to the manufacturer documentation of your KROHNE devices

Adjustment of the units at the transmitter

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Changeover current output 4-20 mA to 0-20 mA

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Coil temperature/coil resistance calibration

IFC 050 | 100 | 300

Electronics replacement

IFC 050

Explanation/connection current output

IFC 050

Explanation/connection frequency output

IFC 050

Explanation/connection pulse output

IFC 050

Explanation/connection status output

IFC 050

Parameterization current output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization frequency output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization pulse output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization status output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization status output as limit switch

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Prametrization pipe detection

IFC 050 | 100 | 300

Setting the measuring range on the display (quick setup)

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Zero point calibration

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Links

Electromagnetic flowmeters

KROHNE Academy Online

This course deals with the principle of electromagnetic flow measurement, the construction of electromagnetic flowmeters and all relevant areas.

View free eLearning course (External link)

Accessories

OPTICHECK Master

Handheld for in-depth verification, device commissioning and monitoring

On-site performance check and verification (level 0,1,2) without process interruption
Convenient commissioning of field devices, e.g. zero calibration
Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details

OPTICHECK DTM

DTM for advanced device verification and commissioning

Usable with any FDT frame application from the control room or on site
Advanced verification (level 0,1) without process interruption
Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details

Applications

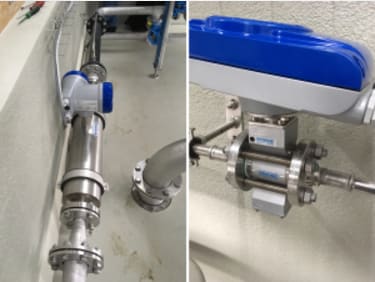

Flow and concentration measurement for automated sludge thickening

Application Note | Water & Wastewater

Control loop for the efficient dosing of flocculants in the secondary clarifier
Measurement of total solid content and flow with just one instrument
Increased process stability thanks to effective prevention of sludge flotation

View this article

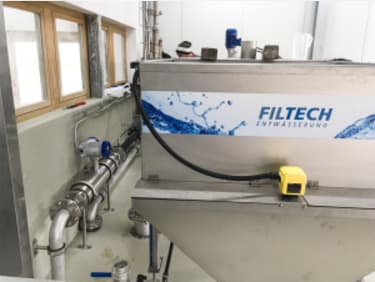

Measurement of flow and total solid content for a flocculant station

Application Report | Water & Wastewater

Control loop for the efficient use of flocculants
Flowmeters fitted to a sludge thickener
Increased stability in sludge thickening operation

View this article

Downloads

Title

Document Type

Handbooks

IFC 050

Handbooks

Downloads

Handbooks

OPTIFLUX 1000

Handbooks

Downloads

Quick Starts

IFC 050

Handbooks

Downloads

Quick Starts

OPTIFLUX 1000

Handbooks

Downloads

Supplementary instructions Communication

IFC 050

Modbus

Handbooks

Downloads

Technical Data Sheets

IFC 050

Datasheets

Downloads

Technical Data Sheets

OPTIFLUX 1000

Datasheets

Downloads

Ex certificates

ENVIROMAG 2000 | 2100
IFC 100
OPTIFLUX 1000 | 1100 | 2000 | 2100 | 4000 | 4100 | 5000 | 5100 | 6000 | 6100

Ordinary Location Canada, Ordinary Location US, -, CSA

Certificates

Downloads

Ex certificates

ENVIROMAG 2000
IFC 300
OPTIFLUX 1000 | 1300 | 2000 | 2300 | 4000 | 4300 | 5000 | 5300 | 6000 | 6300

Ordinary Location Canada, Ordinary Location US, -, CSA

Certificates

Downloads

Ex certificates

IFC 100
OPTIFLUX 1000 | 2000 | 4000 | 5000 | 6000
WATERFLUX 3000 | 3100

Ordinary Location Canada, Ordinary Location US, -, CSA, 2043191

Certificates

Downloads

Ex certificates

IFC 300
OPTIFLUX 1000 | 1300 | 2000 | 2300 | 4000 | 4300 | 5000 | 5300 | 6000 | 6300

USA Ex, Ex d or XP, Ex i or IS, Ex nA or Ex ec or NI, Ex t or DIP, Class I Division 2, Class II Division 2, Class III Division 1, Class III Division 2, FM16US0329X

Certificates

Downloads

Ex certificates

OPTIFLUX 1000 | 1300 | 2000 | 2300 | 4000 | 4300 | 5000 | 5300 | 6000 | 6300

Canada Ex, Ex i or IS, Ex nA or Ex ec or NI, 1665151

Certificates

Downloads

Marine approvals

IFC 050 | 100 | 300
OPTIFLUX 1000 | 1050 | 1100 | 2000 | 2050 | 2100 | 4000 | 4050 | 4100 | 4300 | 5000 | 5100
OPTIPROBE
WATERFLUX 3000 | 3050 | 3100

DNV Det Norske Veritas, Norway, MRA000002R, TAA00000JA

Certificates

Downloads

Marine approvals

IFC 050 | 100 | 300
OPTIFLUX 2000 | 2050 | 2100 | 2300 | 4000 | 4050 | 4100 | 4300 | 5000 | 5100 | 5300
OPTIPROBE

Bureau Veritas (BV), France, 49968A0BV, 49968A1BV

Certificates

Downloads

Marine approvals

IFC 050 | 100 | 300
OPTIFLUX 2000 | 2050 | 2100 | 4000 | 4050 | 4100 | 5000 | 5100
OPTIPROBE

Korean Register of Shipping (KRS), Korea for ALTOMETER, RTD36713AE001

Certificates

Downloads

Marine approvals

IFC 050 | 100 | 300
OPTIFLUX 2000 | 2050 | 2100 | 4000 | 4050 | 4100 | 5000 | 5100
OPTIPROBE

Korean Register of Shipping (KRS), Korea for KMTS, SHI36710AE001

Certificates

Downloads
