KROHNE OPTIFLUX 2100 Electromagnetic flowmeter (Compact)

TECH IMPRO AUTOMATION SOLUTION SDN BHD

Category: Flowmeter Available

For more information, visit our official website at improtechonline.com

Visit Official Site Contact Us

Description

Overview

The OPTIFLUX 2100 is an electromagnetic flowmeter (EMF) for standard water and wastewater applications. It is the ideal solution for all general flow applications where reliable flow measurement with sufficient yet not extremely high accuracy is required. Installation in measurement chambers subject to (constant) flooding is possible with the remote IP68 / NEMA 6P rated version.

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Bi-directional flow measurement over a wide dynamic range
Optional for subsoil installation and constant flooding
Proven and unsurpassed life time, huge installed base
Standard wet calibration
PP or hard rubber liner: suitable for low concentrated chemicals
Tamper proof
Standard measurement accuracy: ±0.3% or ±1mm/s of measured value (MV)
Diagnostics incl. conductivity, electrode error, ambient and process temperature etc.
Full bore design: No moving parts, no wear, no pressure loss
Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
For hazardous areas: ATEX, IECEx, FM, CSA
On-site verification of flowmeter with OPTICHECK service tool

Specifications

Depending on selected device configuration

General information

Product type	Flowmeter
Product family name	OPTIFLUX
Product positioning	For all standard water and wastewater applications
Measurement principle	Electromagnetic
Measured media	Liquids

Operating conditions

Process pressure	max. 40 barg/ 580 psig
Process temperature	-5…+90°C/ +23…+194°F

Materials

Liner	Polypropylene (PP), Hard rubber

Process connections

Flange connections	EN (1092-1): DN25…1200 ASME (B 16.5): 1…48'' JIS (B 2220): 25…1000A

Approvals/Standards

Certificates/Approvals Ex	ATEX, IECEx, NEPSI, FM, CSA
Certificates/Approvals Marine	ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
Certificates/Approvals Potable Water	DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS

Communication

Analogue outputs	4…20 mA
Discrete outputs	Pulse, Frequency, Status
Digital outputs	HART®

Videos

myDevice

OPTICHECK

Exchange of water meters with different lengths

KROHNE Water & Wastewater

Online planning tool for the creation of tender texts

PICK briefly explained - Digital access to the manufacturer documentation of your KROHNE devices

Adjustment of the measured value pages of the transmitter

GFC 300, IFC 100 | 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Adjustment of the units at the transmitter

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Changeover current output 4-20 mA to 0-20 mA

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Coil temperature/coil resistance calibration

IFC 050 | 100 | 300

Electronics replacement

IFC 100

Explanation/connection current output

IFC 100

Explanation/connection pulse output

IFC 100

Explanation/connection status output

IFC 100

Parameterization current output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization frequency output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization pulse output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization status output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization status output as limit switch

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Prametrization pipe detection

IFC 050 | 100 | 300

Setting the measuring range on the display (quick setup)

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Zero point calibration

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Links

Electromagnetic flowmeters

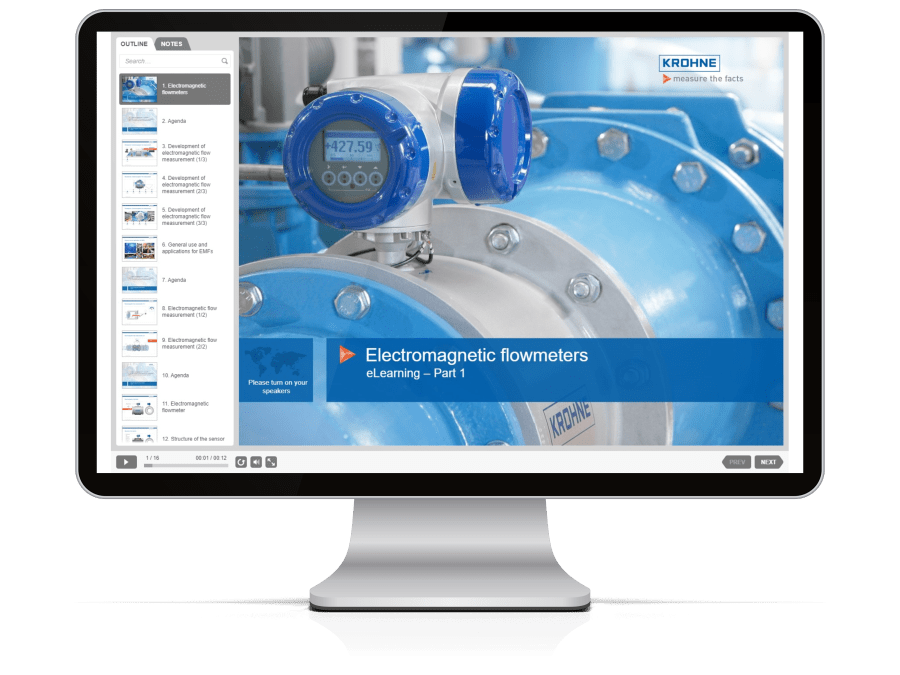

KROHNE Academy Online

This course deals with the principle of electromagnetic flow measurement, the construction of electromagnetic flowmeters and all relevant areas.

View free eLearning course (External link)

Accessories

OPTICHECK Master

Handheld for in-depth verification, device commissioning and monitoring

On-site performance check and verification (level 0,1,2) without process interruption
Convenient commissioning of field devices, e.g. zero calibration
Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details

OPTICHECK DTM

DTM for advanced device verification and commissioning

Usable with any FDT frame application from the control room or on site
Advanced verification (level 0,1) without process interruption
Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details

Applications

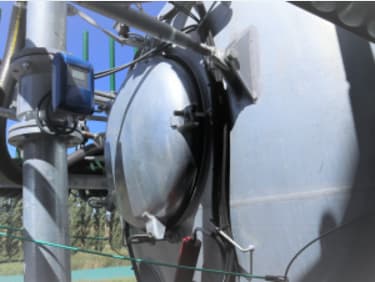

Flow and level measurement on a liquid manure spreader

Application Report | Agriculture

Effective nutrient management of liquid slurry in line with environmental regulations
Process instrumentation for even distribution of fertilizer
Prevention of nutrient loss and fertilizer run-off

View this article

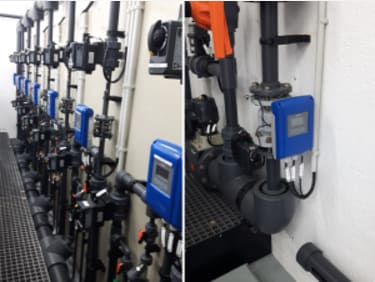

Dosing of sodium hypochlorite solution for drinking water disinfection

Application Note | Water & Wastewater

Increased process safety and reduced consumption of liquid bleach in the chlorination plant of a water purveyor
Reliable and long-term stable flow measurement of an aggressive liquid by using an electromagnetic flowmeter with ceramic measuring tube
Additional flow instrumentation for the pumping station from one source
Reduced service costs: Performance verification of all flowmeters with one single service tool

View this article

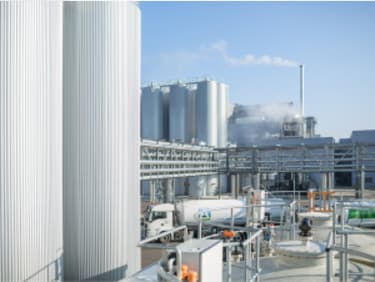

Equipping a cheese dairy with flow, level and analysis instruments

Application Report | Food & Beverage

Automation of a production site for premium cheese
Providing information on various plant operations – from raw milk reception to cheese preparation to sterilisation and wastewater management
Cross-company and cross-country project management to fulfil customer requirements on time

View this article

Portable flow measurement of wine and juice

Application Report | Food & Beverage

Electromagnetic flow metering to automate transfer operations
Monitoring the quantity of juice and wine moved from one tank to another
Highly flexible solution for temporary flow measurement and pump control

View this article

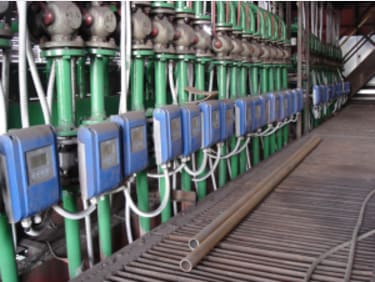

Detecting the leakage of coolant in a blast furnace

Application Report | Metal & Mining

Protection of furnace lining and shell through internal cooling system
Electromagnetic flow measurement of chemically purified water
Advanced leakage monitoring system with over 530 flowmeters

View this article
