Description: GI-C series high-vacuum butterfly valve can control the airflow in the Vacuum system from 0°to 90°. he applicable active media of this valve are air, non-corrosive gas.
Product info
GI-C series high-vacuum butterfly valve can control the airflow in the Vacuum system from 0°to 90°. he applicable active media of this valve are air, non-corrosive gas.
Specifications
Main technical performance:
|
Scope (Pa) |
105～1.3x10-5 |
|
Valve Leakage Rate(Pa.L/S) |
≤1.3x10-6 |
|
Medium temperature（℃） |
-25～+80(Sealing Material NBR) |
|
Flange Standard |
JB919 |
|
Installation location |
Random |
|

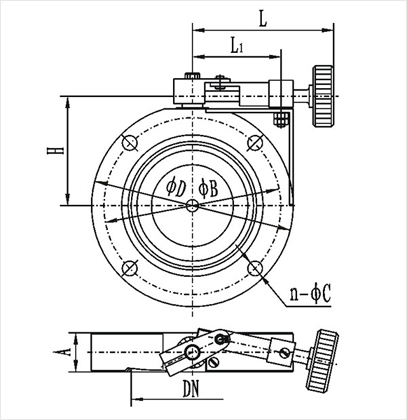

Model |
Nominal Diameter(DN) |
ΦD |
ΦB |
H |
A |
L |
L1 |
n-ΦC |
|
GI-32 |
32 |
78 |
64 |
51 |
22 |
62 |
29 |
4-Φ7 |
|
GI-40 |
40 |
85 |
70 |
55 |
65 |
32 |
||
|
GI-50 |
50 |
110 |
90 |
69 |
71 |
45 |
4-Φ9 |
|
|
GI-63 |
63 |
130 |
110 |
72 |
26 |
87 |
55 |
|
|
GI-80 |
80 |
145 |
125 |
80 |
30 |
85 |
63 |
|
|
GI-100 |
100 |
170 |
145 |
93 |
110 |
75 |
4-Φ12 |
|
|
GI-150 |
150 |
220 |
195 |
122 |
35 |
155 |
98 |
8-Φ12 |
|
GI-200 |
200 |
275 |
250 |
156 |
40 |
159 |
117 |
|
|
GI-250 |
250 |
330 |
300 |
259 |
45 |
167 |
132 |
|
|
GI-300 |
300 |
380 |
350 |
284 |
55 |
197 |
162 |
8-Φ14 |
