Beta Three U12Ba 300W (RMS) 12” LF Active Speaker

Brand: Beta Three
Product Code: U12Ba

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The U Active Series delivers extraordinary performance at unmatched value.

• High output SPL and sensitivity
• 1 x 12” high power low frequency transducer with 50mm voice coil
• Heavy duty protective grill
• Injection molded
• Built-in power amplifier module
• Master volume control
• XLR input and output connectors
• Built-in variable high cut filter
• Cabinet design for FOH
• Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction
• Integral 35mm pole receptacle for mounting full range or mid/high speaker
  cabinet

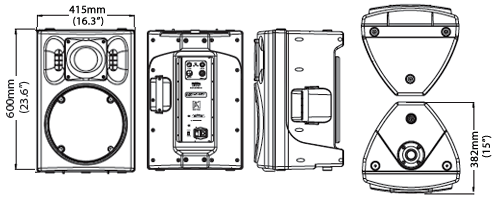

Cabinet Dimension:

Specifications
Construction	Plastic
Transducers	1 x 12”LF
Frequency Response (-3dB)	45Hz-250Hz
Rated Power	300W (RMS)
Amplifier Type	Class H
Maximum SPL (1W @ 1m)	120dB (Peak)
Input Impedance	Balanced 20kΩ, Unbalanced 10kΩ
Rated Impedance	4Ω
Connector	2 xXLR
Power Supply	110V/220V
Dimensions (WxDxH)	415mm(16.3”)x391mm(15.4”)x600mm(23.6”)
Packaging Dimensions (1piece/pack)	465mm(18.3”)x435mm(17.1”)x680mm(26.8”)
Net Weight (1piece/pack)	23.2kg(51.1lb)
Gross Weight (1piece/pack)	25.4kg(56lb)

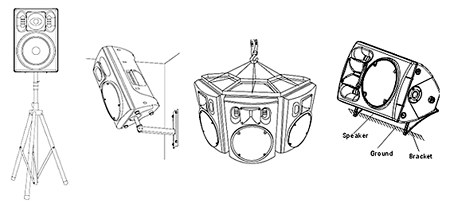

Installation drawing:
