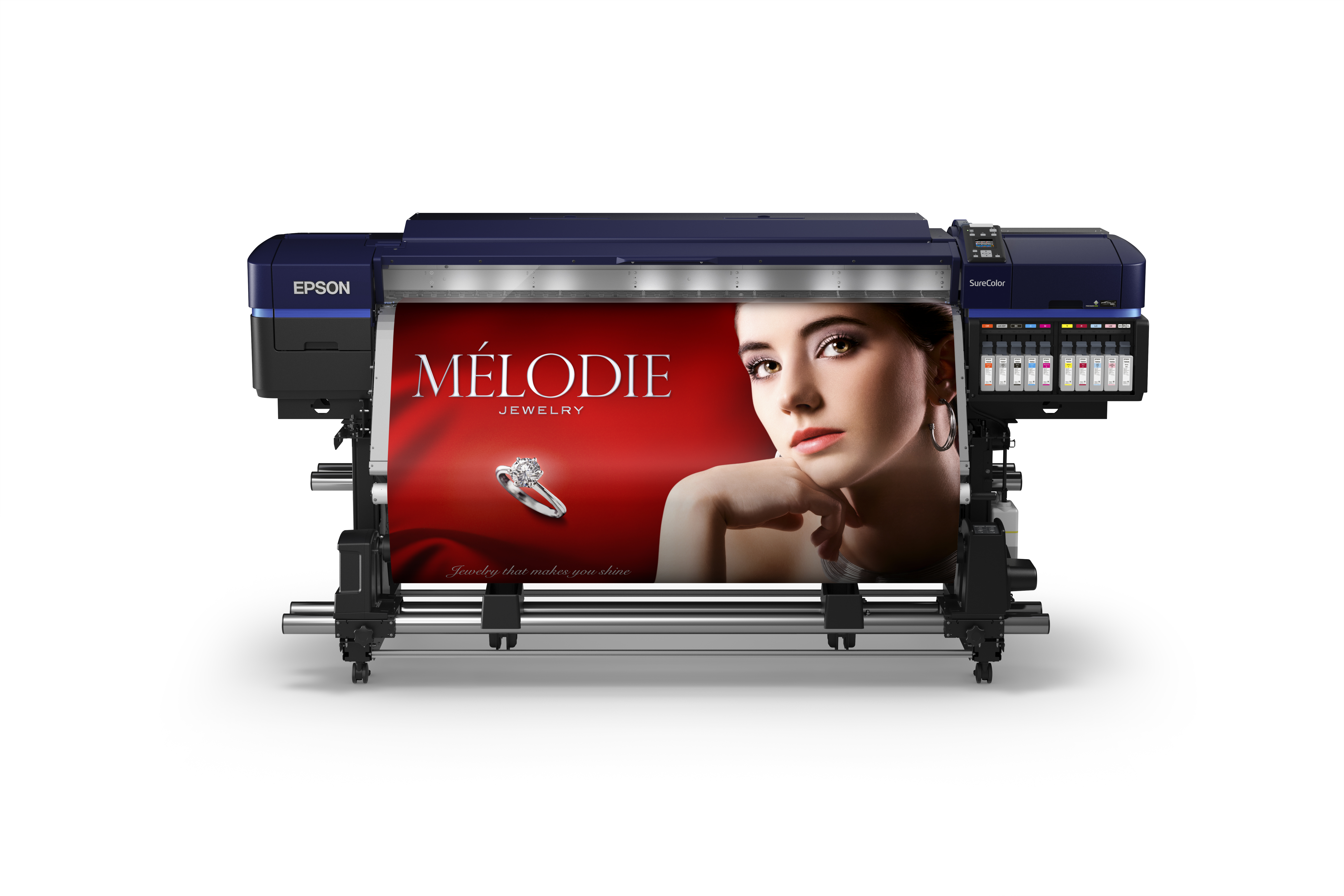

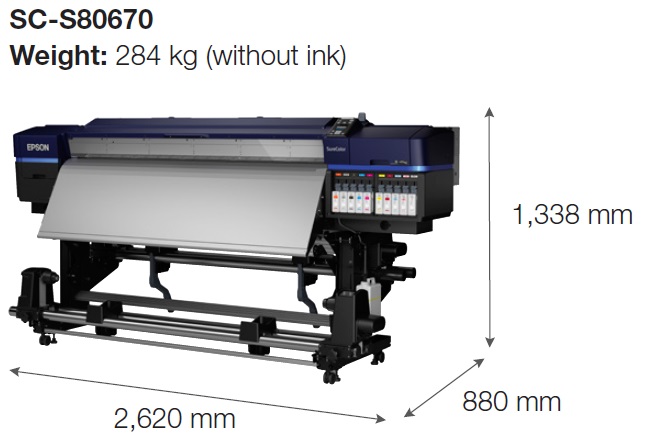

EPSON SC-S80670

The Epson SureColor SC-S80670 offers the widest colour gamut to meet most demanding jobs for a wide variety of indoor and commercial applications with the 10-colour UltraChromeTM Epson UltraChrome GS3 ink and option of white or metallic silver colours.

Widest colour gamut to meet most demanding jobs with 10-colour configuration
Up to 64-inch width and 1.0 mm thickness media
Epson UltraChromeTM GS3 ink Technology with Red
2-years limited warranty


Exceptional performance that exceeds client expectations
Produce industry-leading image quality with Epson's advanced PrecisionCore™ printhead, Epson Precision Dot - an Epson's proprietary advanced image processing technology, and the new Epson UltraChrome GS3 eco-solvent ink. The 10-colour ink set with red and option of white or metallic silver packs the widest colour gamut in Epson’s SureColor S-series printer range. Deliver speedy performance and consistent print quality with dual PrecisionCore printheads.

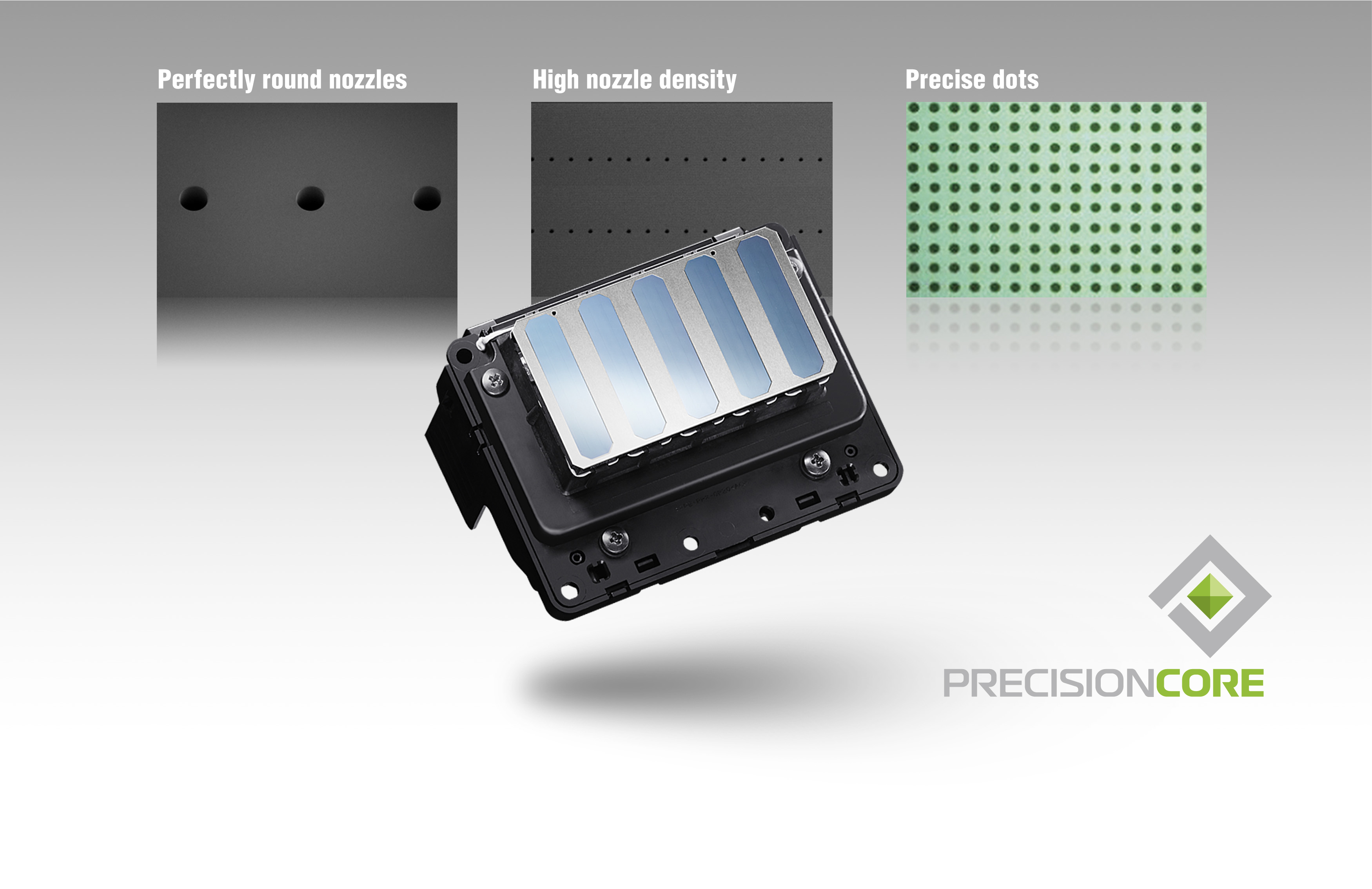

Deliver consistent print quality for every image with Epson's advanced PrecisionCore printhead - a thin film piezo printhead technology that operates at lower temperatures as compared to thermal inkjet printhead.


Printhead Guard
Increase the longevity of the printhead by preventing damage to printhead nozzles in case of media jam


Superb reliability with newly-developed technologies

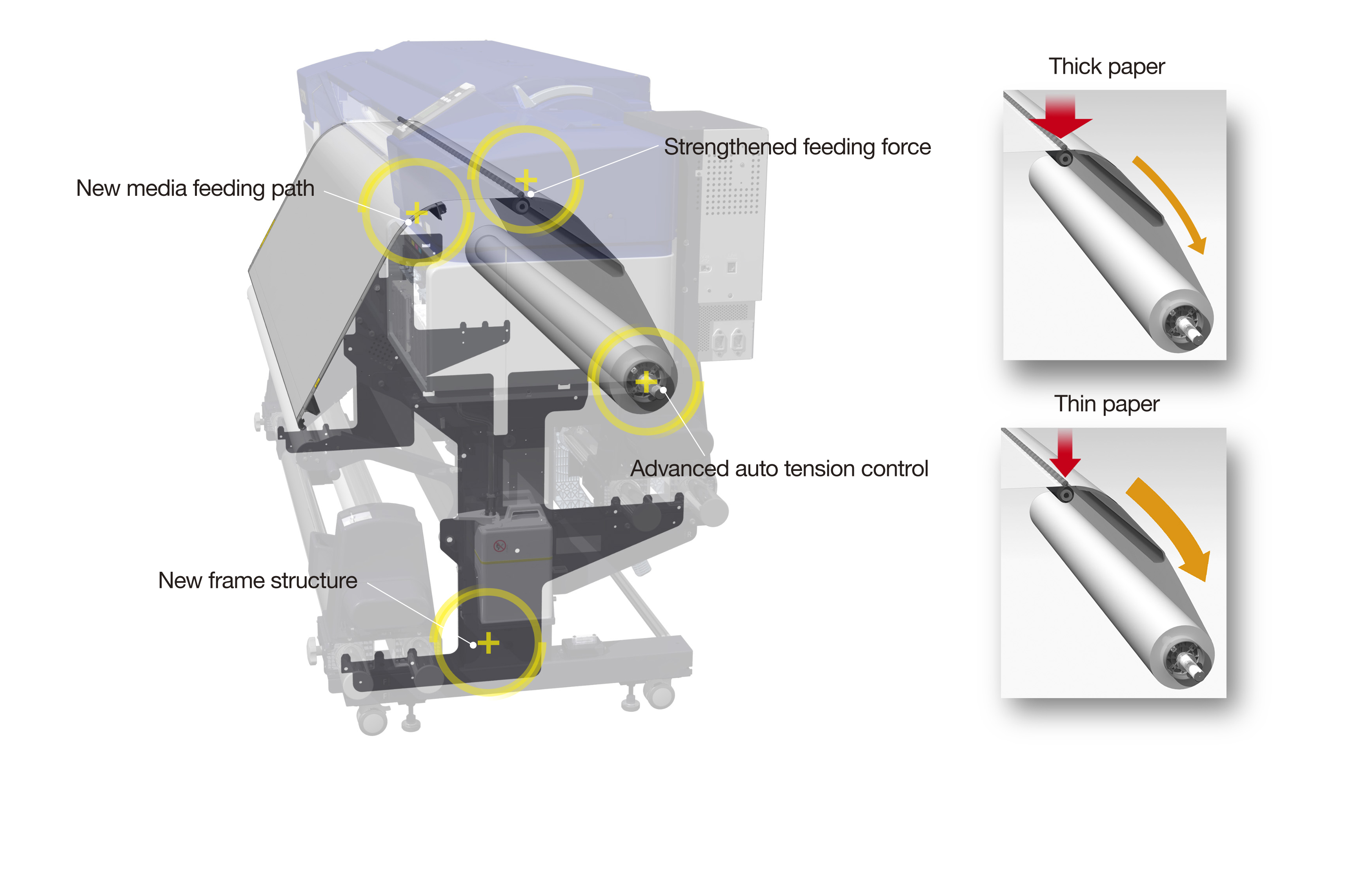

Experience fast and ultra-reliable high-volume printing with the newly developed precision media feeding system, which ensures consistent media feed for truly unattended roll-to-roll printing, and new hardware enhancements to the printhead to withstand head strikes.

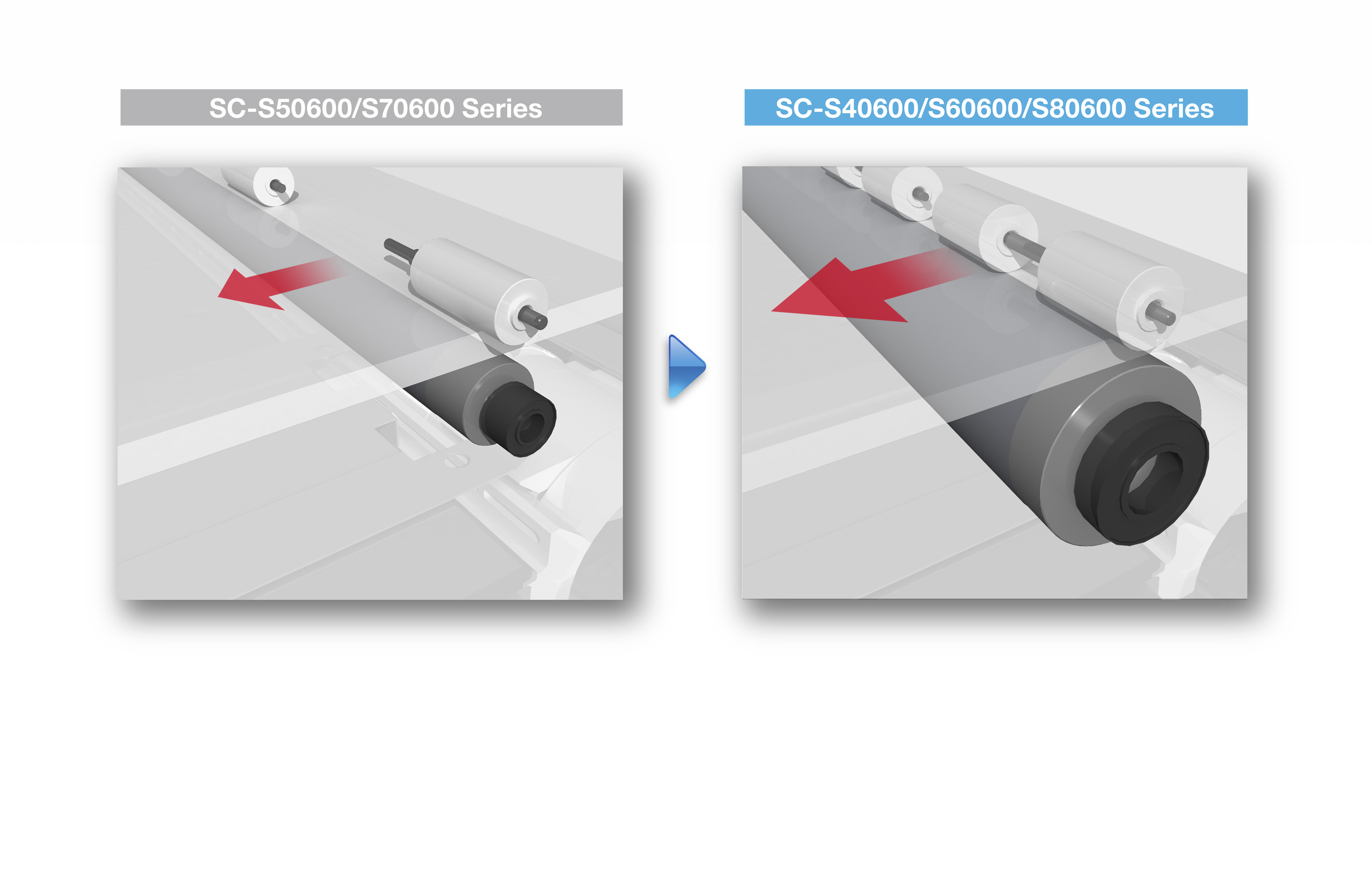

Pinch rollers with adjustable tension
Optimized for consistent media feed enables true unattended roll-to-roll printing
Automatically correct any initial media skew after media is loaded


Designed for ease of use

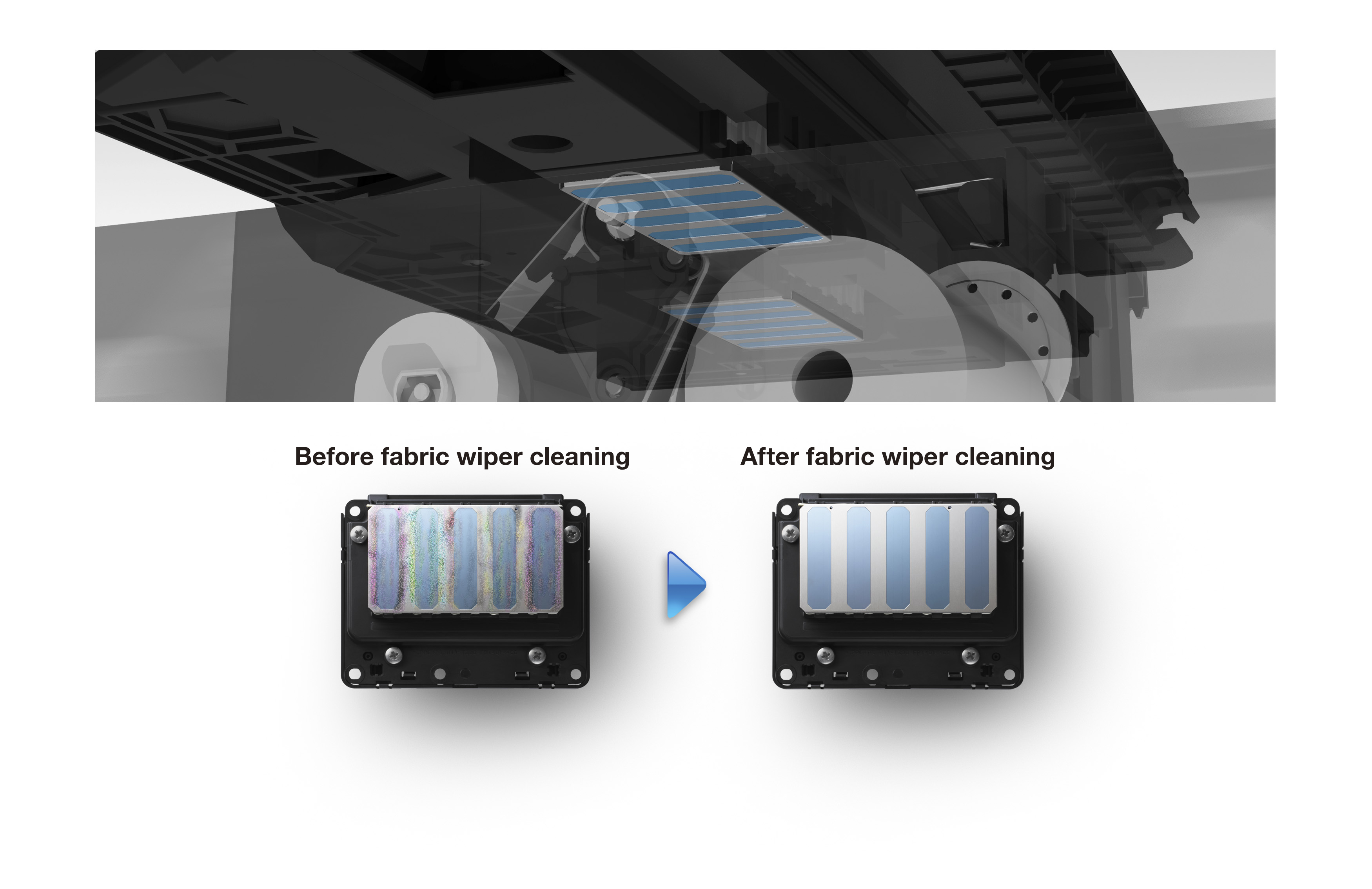

Automatic media alignment and setup allows for fast switching between media types. Automatic printhead cleaning with newly developed fabric printhead wiper system that virtually eliminates printhead maintenance.


Better Products for a Better Future

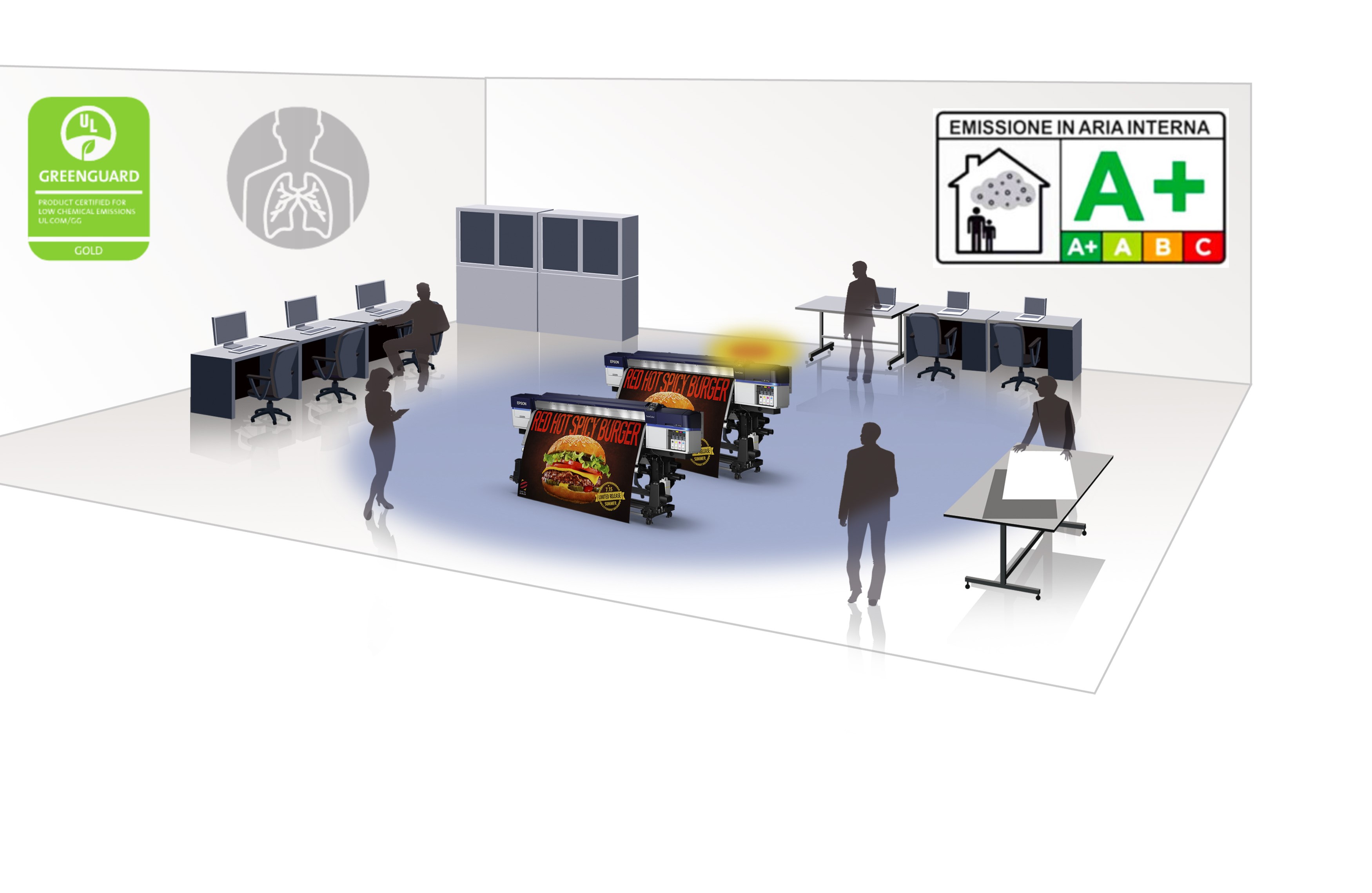

Do your part to create a sustainable society for future generations with an eco-friendly product as certified by Nordic EcoLabel. When operating indoors as the new Epson UltraChrome GS3 eco-solvent ink is virtually odourless. It features a safe pigment formulation that is 100% free of nickel and fluorine compounds, while maintaining a high degree of outdoor durability. It is also GREENGUARD GOLD CERTIFIED and meets the French-VOC A+ Class criteria for low chemical emissions.


No special ventilation is required

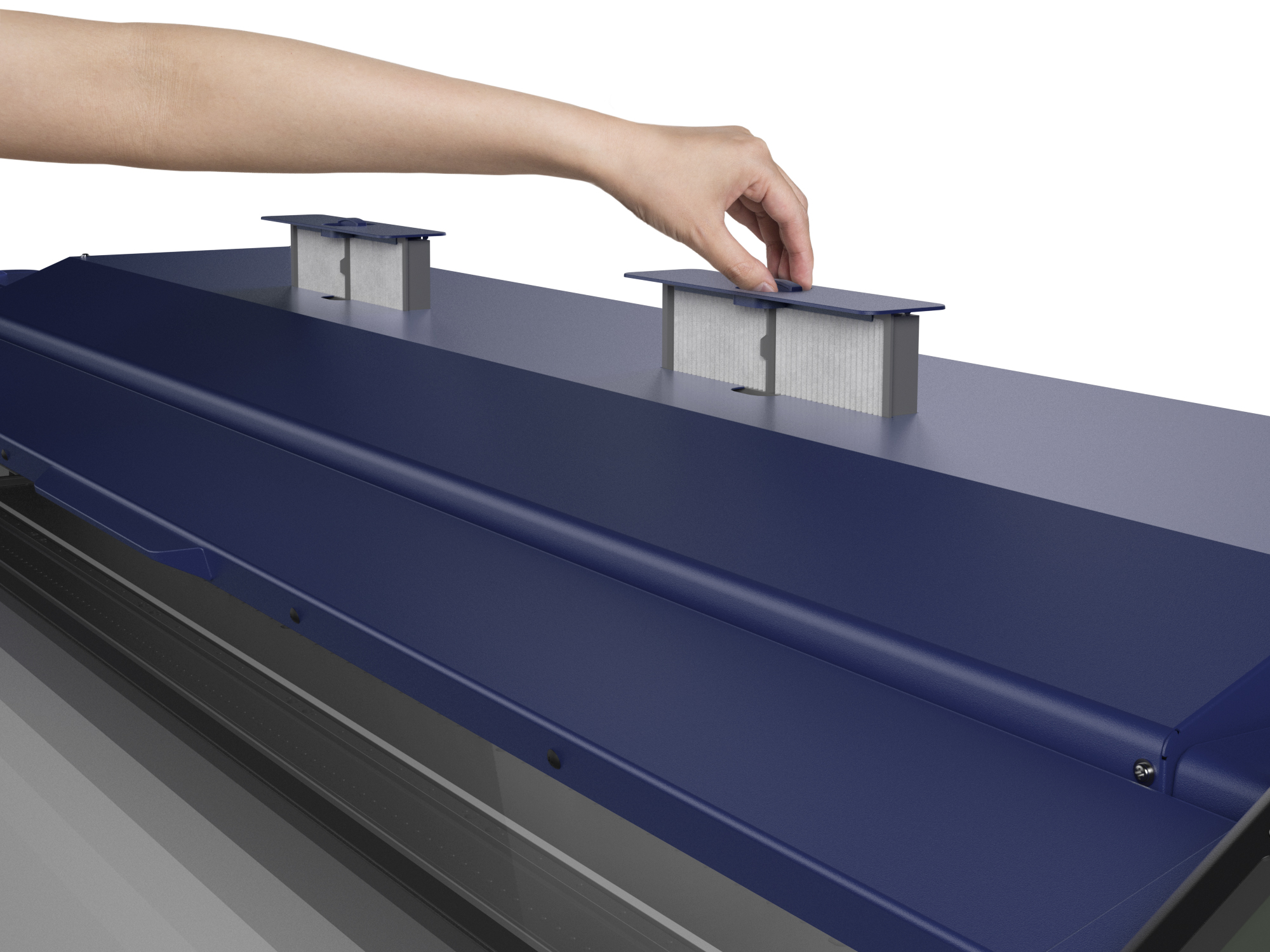

Built-in air circulation system to remove ink mist from inside printer to prevent ink mist from settling on the sensors and printer drive mechanisms which may cause printer failure


Affordable Prints with Peace of Mind
Keep running costs down with a new and improved Epson UltraChrome GS3 eco-solvent ink formulation that reduces ink consumption.


Epson UltraChrome GS3 eco-solvent ink
Deliver with confidence through outdoor prints that last up to 3 years without lamination with the new Epson UltraChrome GS3 eco-solvent ink.


Ink Flow Regulator
Ink stirring mechanism in the tube that helps reduce ink sedimentation which leads to lower possibilities of uneven color and banding on prints especially after prolong period of not using printer -> less ink wastage cleaning printhead to recover print quality


The Epson SureColor S80670 is Pantone Certified
The Epson SureColor S80670 is the only printer in its class that carries a Pantone Certification for color accuracy with gamut coverage up to 98.2%.
*Rated 98.2% Pantone on ILFORD Nano Solvent Premium Photo Paper Gloss at 1440x1440dpi 36pass and 96.5% on Avery MPI1105 at 1440x1440dpi 36pass.


Two-year warranty
Enjoy peace of mind for your business workflow with Epson's commitment to product quality and the provision of a two-year warranty, inclusive of the printhead.

Epson Earn Inaugural Pick Awards for Outstanding Eco-Solvent 54''/64'' Wide Format Printers

-Epson SureColor S40600
Outstanding Entry-Level CMYK Eco-Solvent/Latex 54''/64'' Printer

-Epson SureColor S60600
Outstanding High Production CMYK Eco-Solvent/Latex 54''/64'' Printer

-Epson SureColor S80600
Outstanding Gamut Expansion Eco-Solvent/Latex 54''/64'' Printer

Epson holds number one position for large format signage printer amongst ASEAN countries

-Q3 of 2016 to Q1 of 2017



Epson SureColor S80600 Receives Readers’ Choice Top Product Award From Wide-Format & Signage

-''The 64-inch SureColor S80600 features newly developed Epson UltraChrome GS3 9-color solvent ink – including an all-new Red solvent along with the option for white or metallic silver inks – resulting in outstanding photographic print quality, durability, and media compatibility.''

Epson SureColor Featuring Application:


Car Decal (Static Cling)




Print & Cut Labels



Direct Print Flags



Metallic Sticker



Printable Reflective Film



Printable Wallpaper


Perforated a.k.a OneWay Vision






SPECIFICATION:

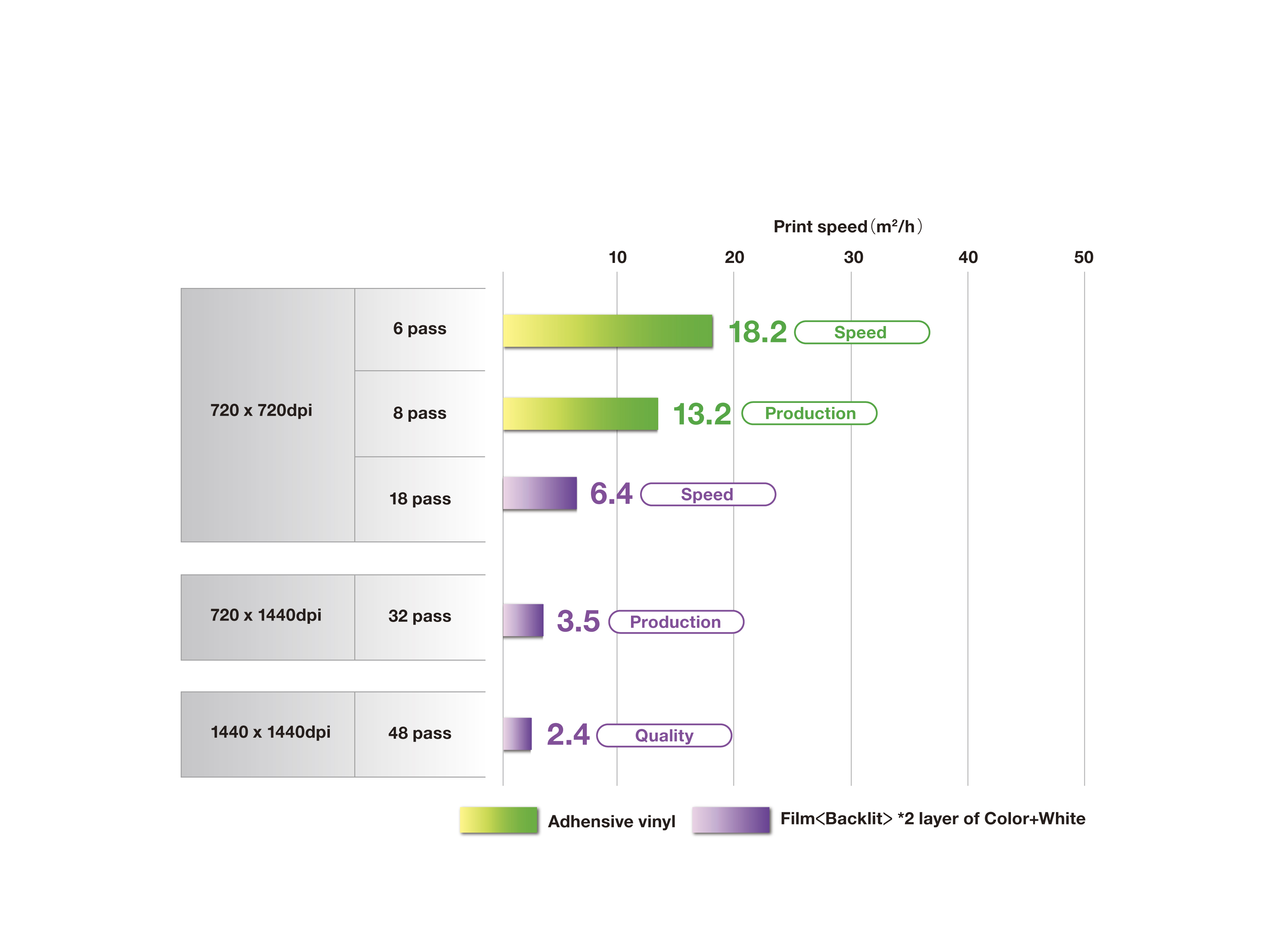

Printing speed:

Print:

Printing Technology:PrecisionCore™ TFP® Print Head 10-channel, drop-on-demand, inkjet print head Variable-Sized Droplet Technology
Maximum Print Resolution:Up to 1440 x 1440 dpi
Print Speed:Up to 95.1 sqm/h
Nozzle Configuration:360 nozzles each colour (x10)

Ink:

Ink Type:UltraChrome® GS3 Ink

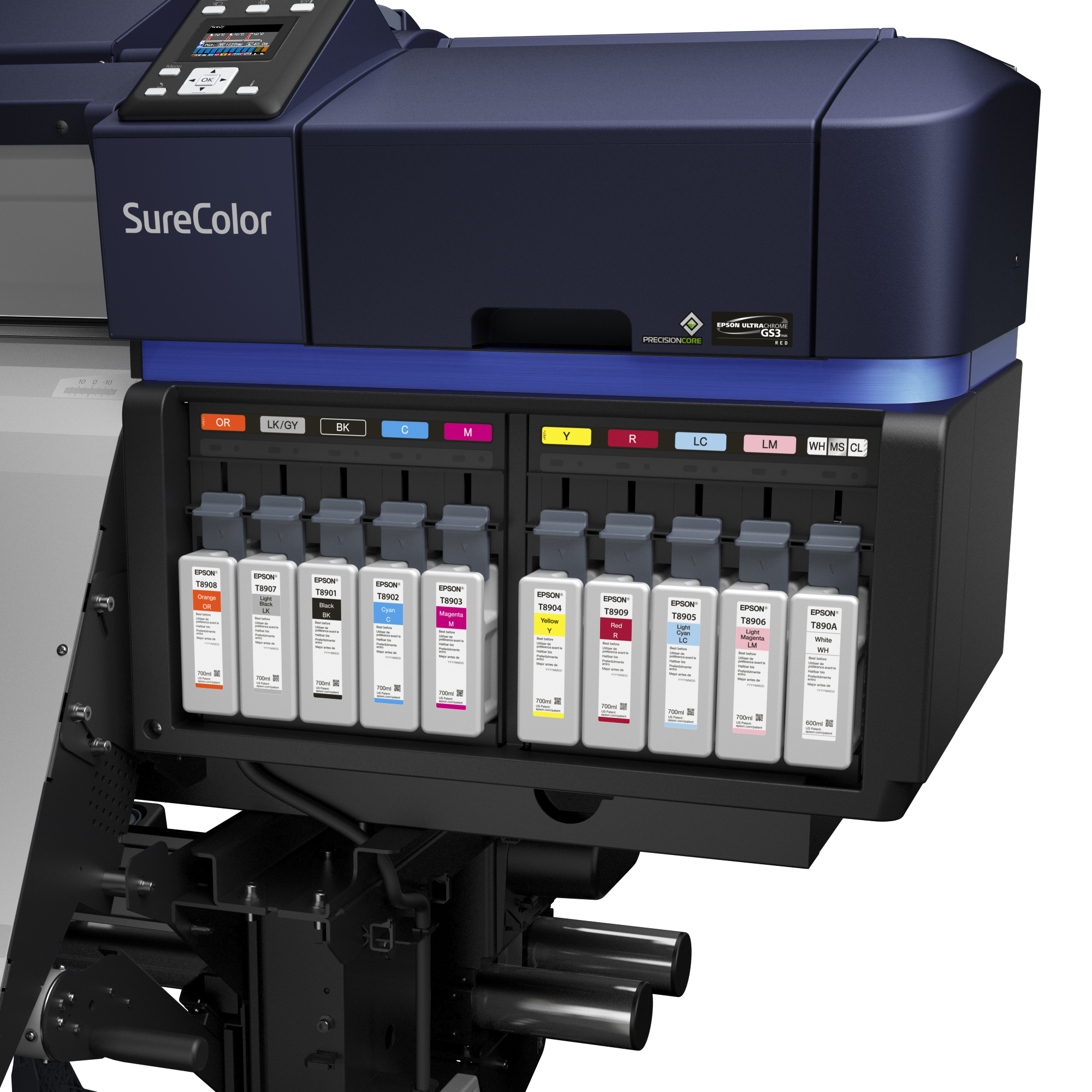

Ink Configuration: C, M, Y, K, LK, LC,LM,OR,R and WH or MS or CL
Replacement Ink Cartridges: Cyan, Magenta, Yellow, Black, Light Black, Light Cyan, Light Magenta, Orange, Red (700 ml) White (600 ml) Metallic Silver (350 ml) Cleaning Cartridge (350 ml)

Ink Supply System:

Ink Shelf Life:2 years from printed production date or 6 months after open

Printable Area and Accuracy:

Maximum Paper Width:1626 mm (64'')
Minimum Paper Width: 300 mm (11.8'')

Maximum Printable Length: Limited by software application, operating system, media length and RIP used

Roll Media Handling:

Media Width: 11.8'' (300 mm) to 64'' (1626 mm )
Media Thickness:Up to 1 mm
Roll Core Size: 2 or 3 inch
Roll Outer Diameter: Up to 250mm
Reel Outer Diameter:Up to 200 mm
Roll Weight:Up to 45 Kg

General:

Operating Systems: Windows Vista/7/8/8.1/10 (64bit) or later, Mac OS 10.6 or later

Printer Details:

Printer Language:ESC/P raster

Software Included:Bundled Software:
ONYX RIPCenter
Epson Control Dashboard (Access via browser)
EpsonNet Setup
EpsonNet Config
EpsonNet Print (Windows only)

Web Download Software:
LFP Accounting Tool
Epson LFP HDD Utility

Interfaces:Hi-Speed USB 2.0, Ethernet 100BASE-TX / 1000BASE-T

Power:

Rated Voltage:AC 100-240 V
Rated Frequency:50-60 Hz
Power Consumption:Operating: Approx. 650W
Standby Approx. 380W
Sleep: Less than 14W
Power Off: Less than 1.5W
Rated Current:10A - 5A
Power Supply Voltage:AC 100-240 V x 2 outlets

Paper Handling:

Media Handling:Roll Paper: One Roll, Rear-loading
Auto Take Up: IncludedAuto Take Up:StandardSupported Media Sizes:Roll Paper Width: 11.8'' (300mm) to 64'' (1626mm)
