Features
1.Special device its can clamp two different size of workpiece at the same time.
2.Take apart fixed block from the vise center so as to clamp larger workpiece.
3.There are fixed-height of vise body and jaws so that can be used in both the vertical and horizontal position
4.Apply to small CNC machine center. Serveral vises can be combined and used together.
5.Soft jaws is optional.

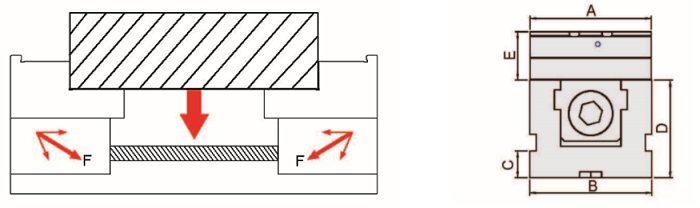

6. Special angle lock design can prevent workpiece be floated during clamping and machining. Thus, it has the best solution in clamping the workpiece.
Model : SDV
Description

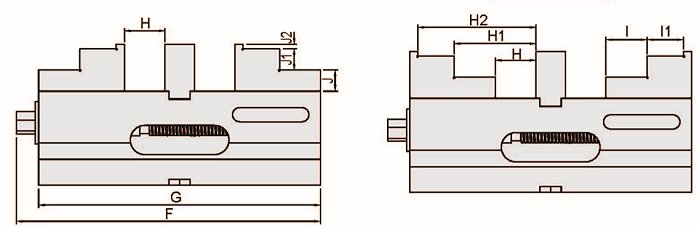

Unit/mm
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
H1 |
H2 |
I |
I1 |
J |
J1 |
J2 |
|
SDV-100 |
100 |
101 |
22 |
80 |
40 |
260 |
240 |
0-35 |
35-70 |
66-100 |
35 |
31 |
18 |
18 |
4 |
