LAUNCH X-831M 3D WHEEL ALIGNER

LAUNCH X-831M 3D WHEEL ALIGNER

Technical Data

• Power Supply : 1PH AC220V + 10% 50Hz
                              1PH AC110V + 10% 60Hz
• 19 inch colorful LCD
• Toe-in : 0~+ 20°
• Camber : 0~+ 10°
• Caster : 0~+ 20°
• Axle inclination : 0~+ 20°
• Thrust angle : 0~+ 5°

Working Environment

• Storage temperature : -10°C~55°C
• Working temperature : 0°C~40°C
• Relative humidity : ≤85%
• Light requirement : No direct strong lights irridate
                                     the target and reflect to the camera.

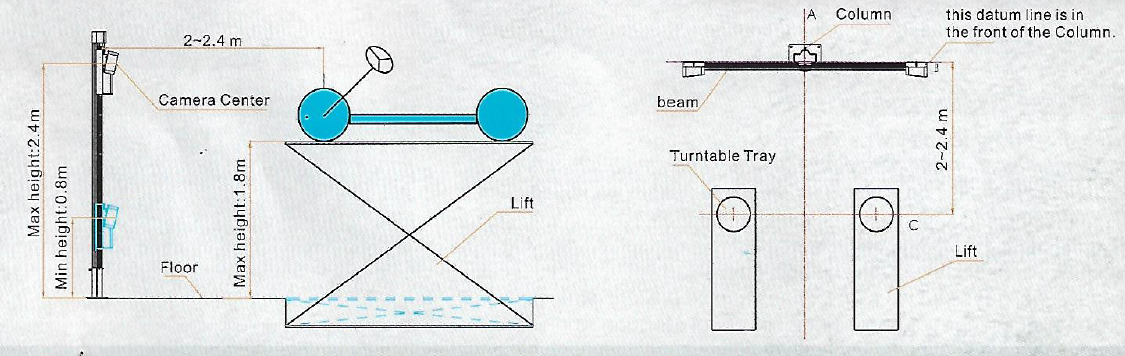

• Lift height : 0~1800mm
• The lift height difference : <2mm (front to rear)
