详情
Designed for
Multi application from household maintenance to renovation works
Features
-
British Certified EN 131 with commercial loading up to 150kg
-
Available from 8 to 16 rungs
-
10 types of ladder configuration to suit any task
-
Compact size for easy storage in vehicle or at home
-

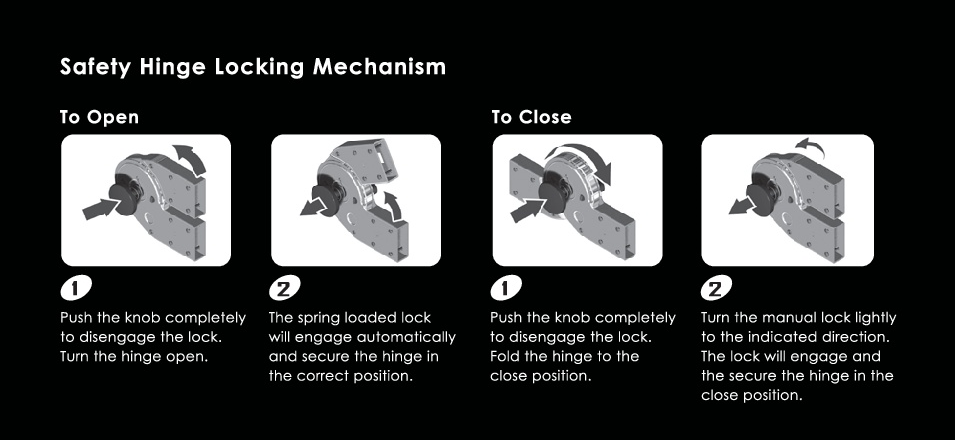

Revolutionary fast-activating safety hinge ensures that configuration is sturdy at all times in the quickest possible time
-
Rigid box section stile in heavily ribbed pattern assures superior strength
-
Angular bottom legs for better anchoring on ground or walls
|
Item Code |
Rung Nos |
Straight Length (mm/ft) |
Folded Length (mm/ft) |
A’Type Height (mm/ft) |
Platform Height (mm/ft) |
|
YMPRH08 |
8 |
2569 |
8.43 |
755 |
2.48 |
1279 |
4.20 |
758 |
2.49 |
|
YMPRH10 |
10 |
3139 |
10.30 |
1041 |
3.42 |
1555 |
5.10 |
1033 |
3.39 |
|
YMPRH12 |
12 |
3709 |
12.17 |
1041 |
3.42 |
1830 |
6.00 |
1033 |
3.39 |
|
YMPRH14 |
14 |
4279 |
14.04 |
1326 |
4.35 |
2105 |
6.91 |
1308 |
4.29 |
|
YMPRH16 |
16 |
4849 |
15.91 |
1326 |
4.35 |
2380 |
7.81 |
1308 |
4.29 |
Maximum Static Load 150kg
