Swan Oil Less Air Compressor 5HP, 8Bar, 485L/min, 230kg SDU-205

详情

Description

Model: SDU-205

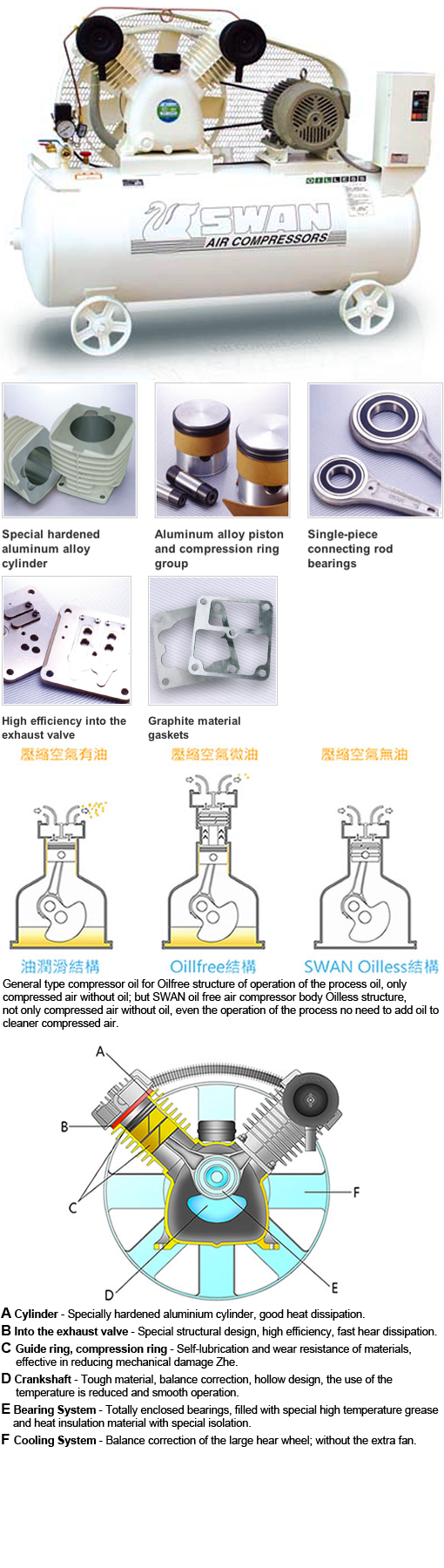

The SWAN exclusive patented oil free air compressor body, the real oil Oilless structural design, Oil-free clean compressed air, greatly reduce the cost of the Clean Air System, To provide better air quality. Environmental protection, without the addition of lubricants, oil-free clean compressed air quality, suited to the needs of the electronics, hospitals, laboratories, food manufacturing industry.

Features

• No oil in the compressor. Completely eliminate oil from the compressed air system.
• Low maintenance and less operational costs.
• Air receiver made by stainless steel or painted with powder coating for rustproof.
• Various options for different application.
• The best solution for Pure, oil-less quality air.

Control System

• Pressure Switch System 'P' Type
  The automatic pressure switch will stop and restart the compressor according to air demand.
  It is normally recommended for intermittent operation and smaller compressor units.

Specifications

Motor	5 hp
Working Pressure (kg/cm²)	8 Bar
Compressor Speed	700 rpm
F.A.D	485 L/min
Tank Capacity	240 Liter
Compressor Block Physical Dimension (L x W x H)	625mm x 460mm x 600mm
Weight (Bare Head only)	71kg
Compressor Unit Physical Dimension (L x W x H)	1450mm x 650mm x 1000mm
Weight (Whole Unit)	230kg
