详情
Description
Model: SVU-205N
8Bar, 5HP, 3phase, 545L/min.
N Series : Designed for long operating hours.

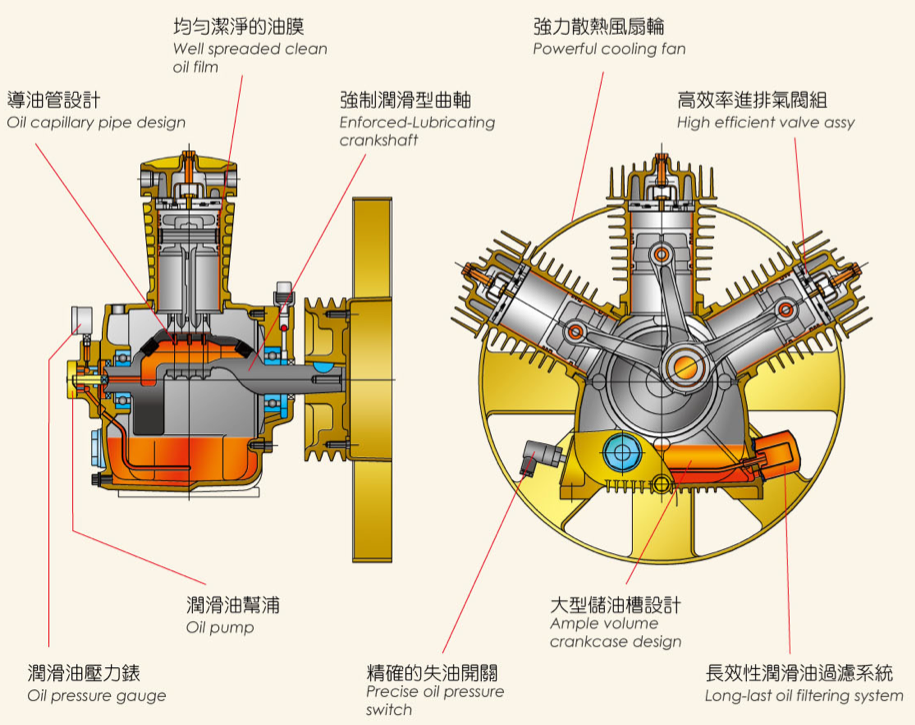

Features
-
Big Crankcase oil sump.
-
Special oil-filled crankshaft.
-
Built-in enforced lubrication system provides highly reliabe solutions.
-
Oil pressure protection mechanism.
-
Effective air circulative cooling system.
-
Unloading design.
-
Design for heavy duty industries.

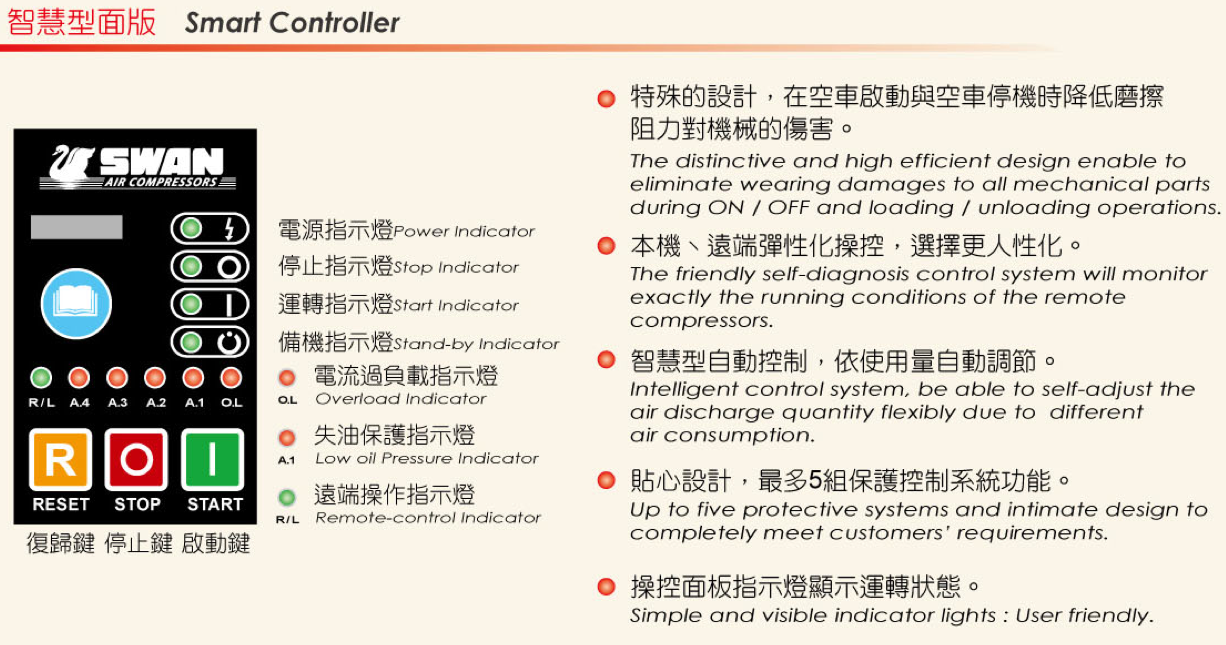

Control System
-
Automatic Unloader System 'U' Type
The automatic unloading system allows for the control of loaded and unloaded compressor states through a range of preset pressure valves.
This system is recommended where the duty cycle exceeds 50% and for all larger compressures unit.
Specifications
|
Motor |
3.7kw / 5hp, 415V, 3 Phase |
|
Working Pressure (kg/cm²) |
8 Bar (Max. 10 Bar) |
|
Compressor Speed |
620 rpm |
|
F.A.D |
545 L/min |
|
Tank Capacity |
155 Liter |
Compressor Block Physical Dimension
(L x W x H) |
560mm x 400mm x 450mm |
|
Weight (Bare Head only) |
70 kg |
Compressor Unit Physical Dimension
(L x W x H) |
1400mm x 520mm x 980mm |
|
Weight (Whole Unit) |
168 kg |
