TP060 Most Productive Welding Head

详情

• Most popular tube to tube-sheet welding expert
• Suitable for tube to tube-sheet welding, with self-fusion or wire feeding, AVC tracking and no-twist designing

Product Description

This is a specially designed TIG welding head for tube to tube-sheet, which is used for carbon steel, stainless steel, mainly for protrusion tube and flush tube connection with or without wire feeding. The standard one is small torch; it can weld high protection requirement material such as Titanium alloy with tow cover. OD ≤32mm, use positioner and manipulator to fix; ≥32mm, use mandrel to fix.

Support equipment: i-Arc400 Programmable Orbital Welding Power Source.

Application: chemical, food, medicine, heat exchanger, power plant, military facility, nuclear facility and so on.

Features

• With/without wire feeding TIG DC/Pulse welding
• No-wire-twist design and special wire feeding design to meet complex single- or multi-layer welding requirements
• Durable welding torch design, suitable for tungsten electrode up to Φ3.2mm, improve duty cycle significantly
• Pneumatic expandable mandrel for positioning, connecting to the balancer accurately and reliably, which is suitable for tube to tube-sheet structure welding in boiler industry
• Compatible with manipulator and suitable for heat exchanger industry
• Suitable for materials of carbon steel, stainless steel, zirconium alloy flush tube and protruded tube
• Unique arc length control AVC design

Specification

Material	Carbon steel, stainless steel, titanium alloy(with cover)
Tube OD(mm)	Φ16 - Φ60(5/8' - 2 1/2')(extendable to Φ89)
Connection	Protrusion tube, flush tube
Tungsten OD(mm)	￠2.4(standard), ￠3.2
Wire Diameter(mm)	Φ0.8, Φ1.0
Rotation Speed(rpm)	0.37~7.39
Welding Angle	0º ~ 30º option
Arc Adjusting Distance(mm)	18
Max Wire Feeding Speed(mm)	1800
Protective Gas	Ar
Cooling	Water
Cooling Flow(ml/min)	≥600
Duty Cycle	300A 60%
Weight(kg)	12(no cable)

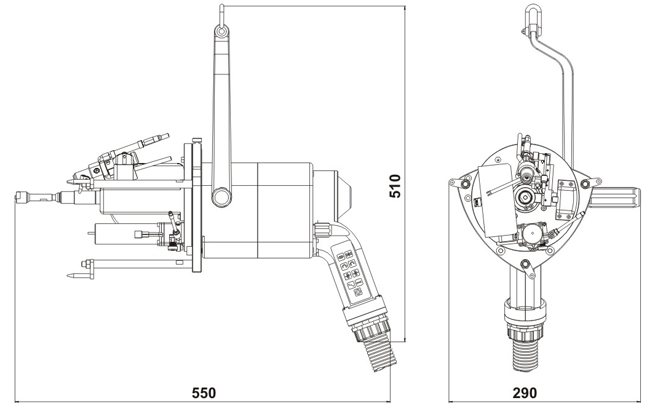

Dimension(mm)	550x290x510
