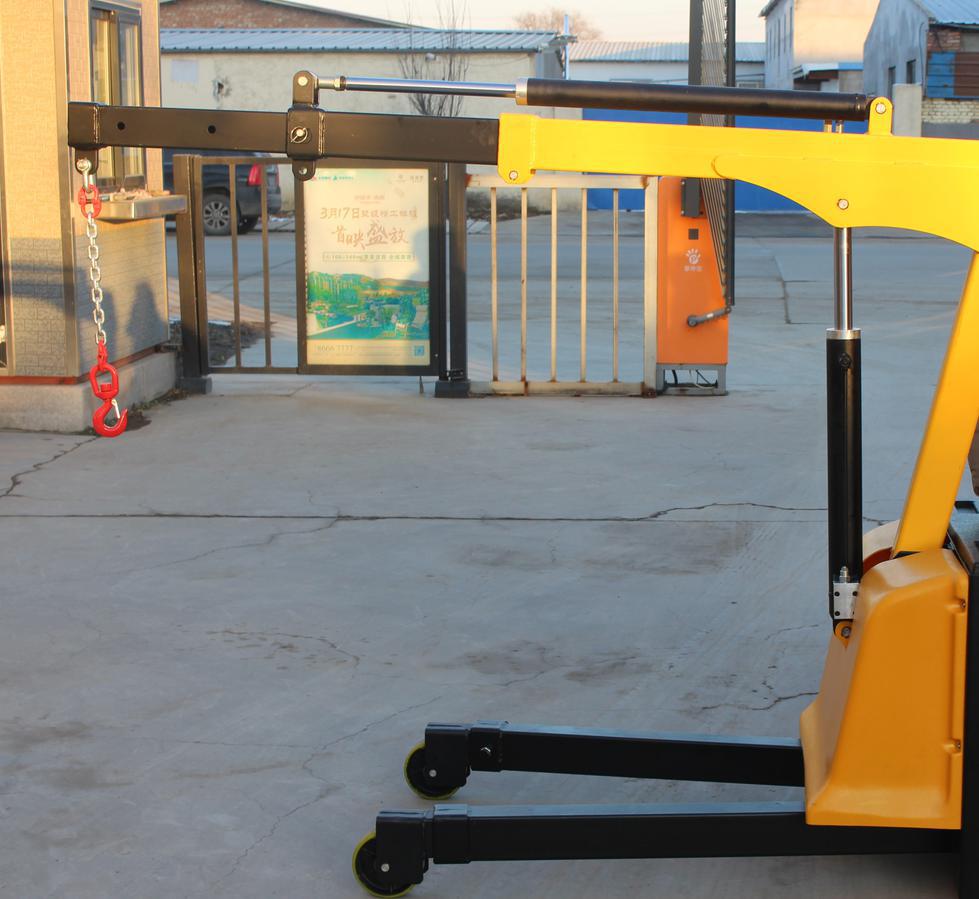

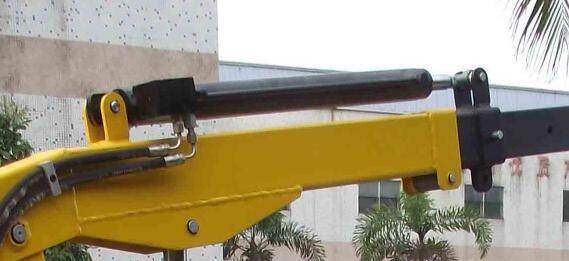

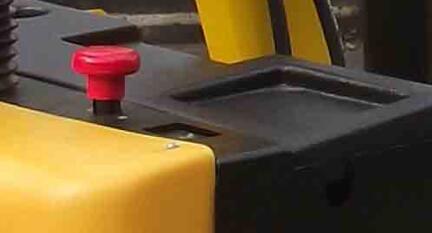

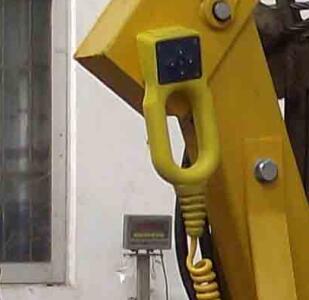

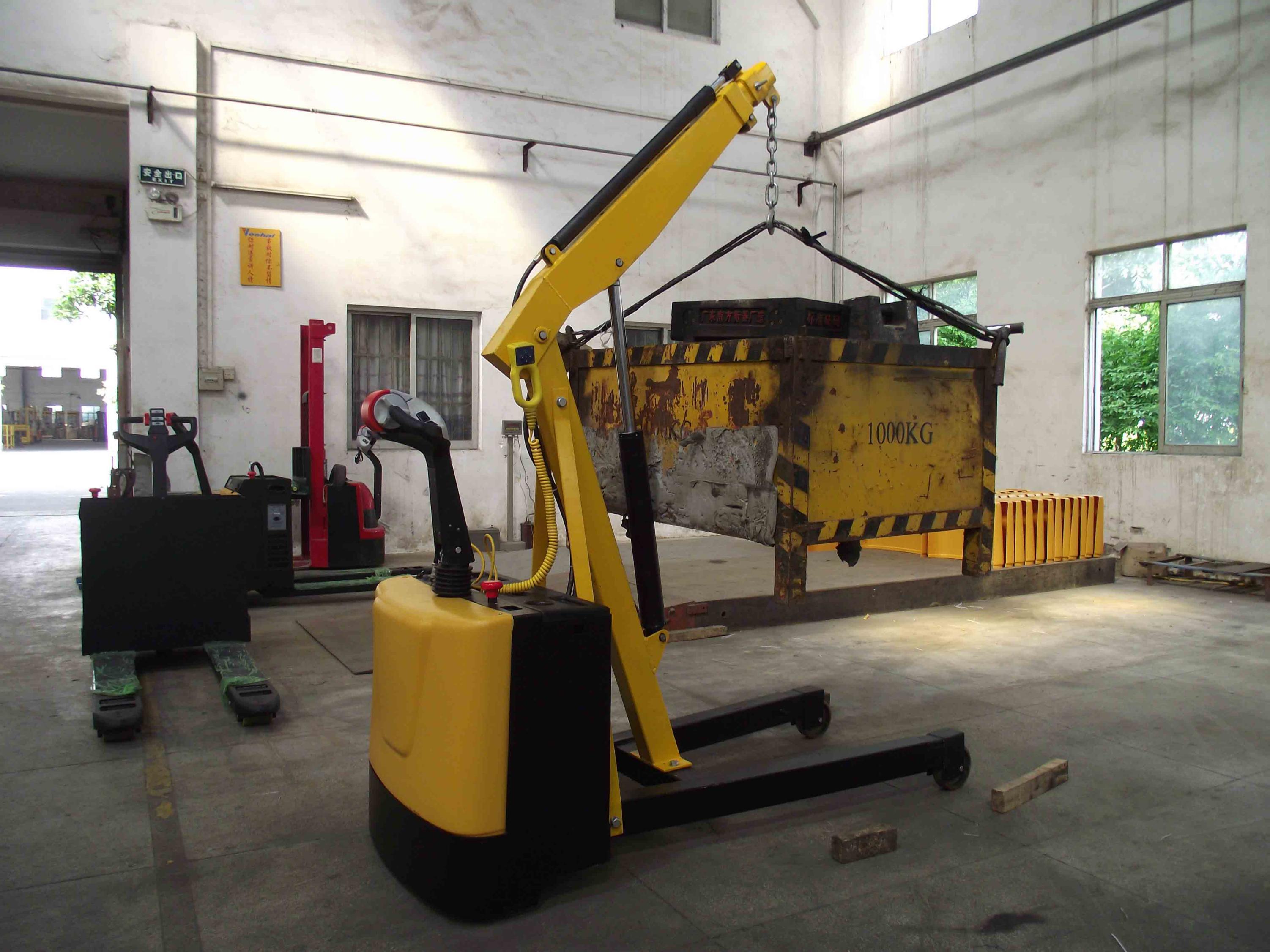

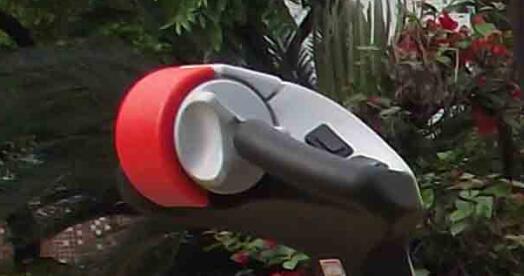

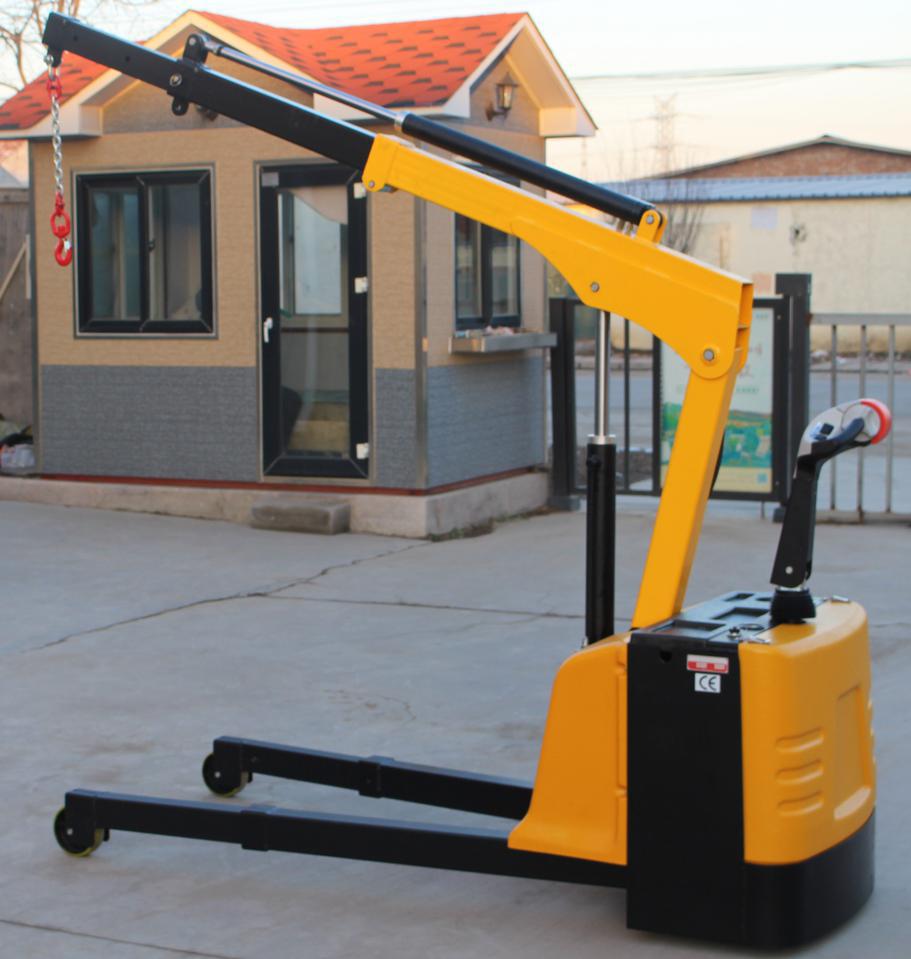

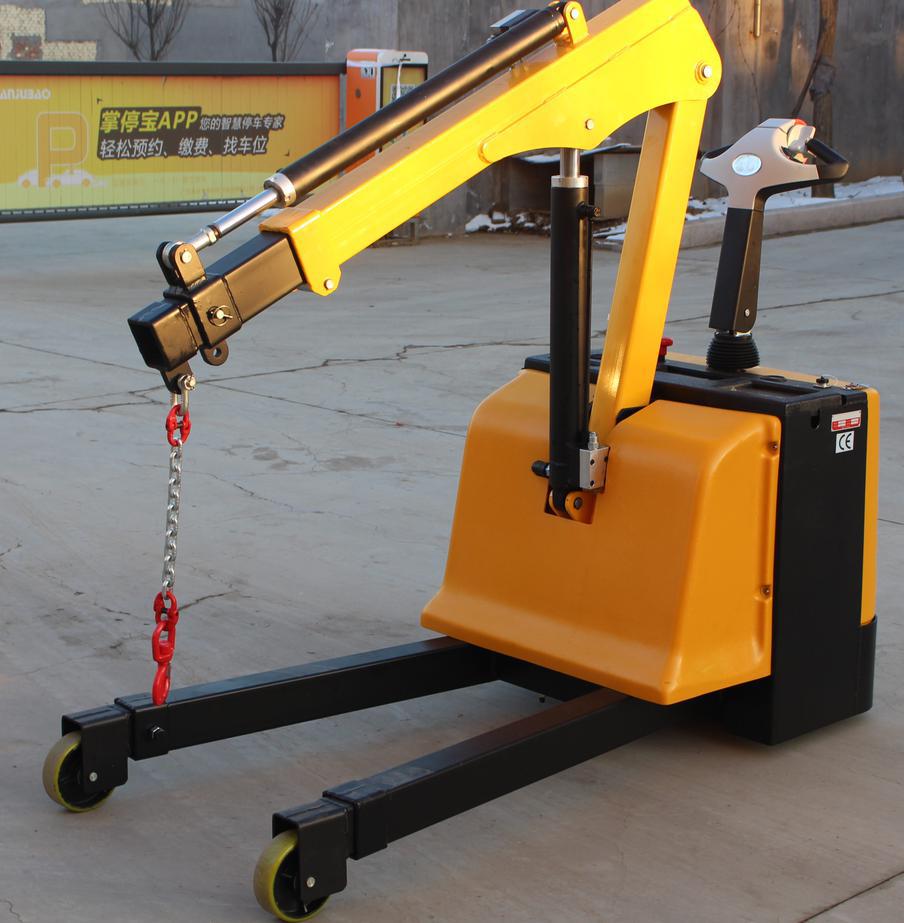

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hours operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch
Capacity | Capacity | Lift Range | Max Height | Rotating | Battery | Drive Speed | Lift | Max Length | Retracted | Net | |
Model | (Retracted) | (Extended) | Retracted/ | Crane | Left/Right (掳) | Power | Unload/Loaded | Speed | Legs | (W X L X H) mm | Weight |
(Kg) | (Kg) | Extended (mm) | Extended (mm) | Km/h | mm/s | Extended (mm) | (Kg) | ||||

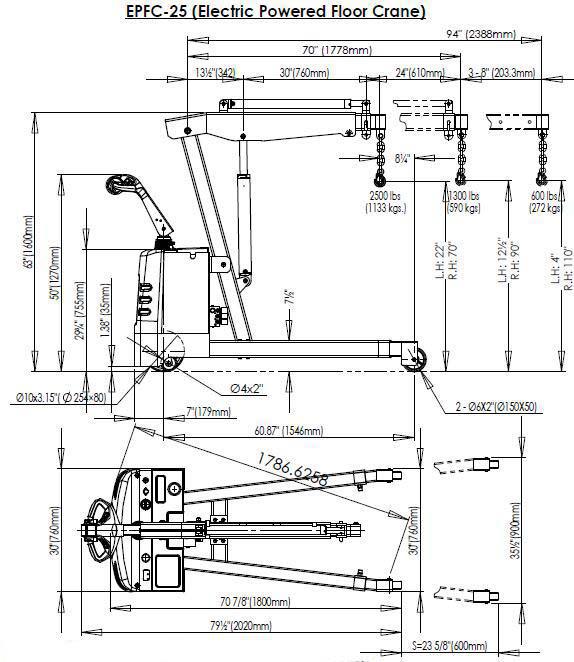

EPFC-25 | 1000 | 500/250 | 2220/3310 | 813 | 2 X 12V/85Ah | 2.2/2.8 | 18 | 600 | 762 X 2032 X 1600 | 500 | |
EPFC-CB-15 | 650 | 350/150 | 2250/3340 | 813 | 2 X 12V/95Ah | 2.2/2.8 | 18 | 889 X 2794 X 1727 | 770 | ||
EPSC900R | 900 | 450/250 | 2500 | 2650/3180 | 60 + 60 | 2 X 12V/120Ah | 4.5/4.0 | 35 | 2090 X 2000 X 1635 | 900 |
