Double Sided Reflective Metalized Paper Film,8x8 Fiberglass Scrim Reinforced (K736M): 马来西亚的首选 K Innovation Sdn Bhd

详情

DOWNLOAD TDS

Product Description
DOUBLE SIDED RETARDANT ALUMINIUM PAPER FOIL/FILM, POLYESTER YARN REINFORCED
PRODUCT FEATURE

Metalized Film (high optical density) with high reflectivity (>0.75-0.95) & low emissivity (<0.05-0.25) surface
Reinforced with polyester yarn to increase the mechanical product strength and durability.
Coupling with minimum of 10mm air space can cut down heat transfer by conduction & convection to negligible figure.
Suggestion Size :

Width(m) Length (m)

1.22 – 1.25 ± 2% 60 ± 2%

Optimum packing pallet =120 rolls

Customize size available upon request and machine capacity

TECHNICAL SPECIFICATION

GRAMMAGE	105 – 115gsm
THICKNESS	125 – 175 microns
TENSILE STRENGTH (ASTM D 828)	MD: 7 - 9 kN/m CD: 5 - 7 kN/m
PERMEABILITY (ASTM E96-80)	Max – 0.01g/h/m²
TEAR RESISTANCE	Excellent
VAPOUR BARRIER	Excellent
CORROSION (95% RH@50°C,30 DAYS)	None
CORROSION (95% RH@50°C,30 DAYS)	None

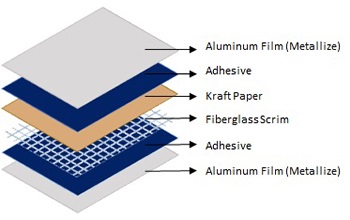

STUCTURE	FILM \| 2 WAY \| KRAFT \| FILM
REINFORCEMENT	Bidirectional Fiberglass Scrim (8x8 threads/100m)

Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice

RECOMMENDED APPLICATION

Foil facing for bulk installation
Foil backing for mineral wool
Backing Material PU Foam
Building wrapping
Wall insulation
Concrete / Clay title roofing
Metal roofing
