Integrated Turbo Pumping Systems
Agilent TPS-compact Turbo Pumping System

The TPS-compact is a portable,  fully Integrated, hydrocarbon-free turbo pumping station. Available with either the TwisTorr 74 FS or 305 FS turbomolecular pumps and backed by the Agilent 3 m3/h (60 L/min) dry scroll pump technology, it offers the fastest pumpdown on the market in a compact package. The large pressure display is capable of reading a variety of active gauges.

The TPS-compact pumping system can operate on worldwide voltages and is CE/CSA-UL certified. An all-in, ready to use dry pumping solution with large pressure display, active gauge reading option.

The system is ideal for medium-size chambers up to 100 L, in university laboratories, industrial applications, and medical applications. The simple to use, on/off switch gives you high vacuum with the flip of a switch.

To request more information or to guide you in your turbo pumping system configuration, pls email to us [email protected] .

Features

X


X


  • Dry, integrated 3 m3/h scroll pump (IDP-3) for fast roughing
  • Plug and pump design for easy, one-switch operation
  • Compact footprint for easy portability
  • Onboard electronics and display to read full range gauge pressure from atm to base pressure
  • Wide range vacuum gauge reading capability. Large pressure data display
  • Ready for Vacuum Link app to give full pump control through your mobile phone
  • Multiple turbo pump sizes to meet your application needs
  • High turbo pump compression ratio enabling low base pressure, down to 1 x 10-9 mbar
  • Analog I/O provides accurate control of the system and pressure driven setpoint
  • Serial RS232 communication protocol with A-plus software enables pump operation, control, and recording of system parameters (i.e., pressure)
  • Serial or analogical communication, pressure driven setpoint, analog setpoint
  • Wide voltage range (90–240 V) for worldwide operation
  • CE/CSA certification
  • Fast roughing, compact footprint, dry and robust system
  • New generation turbo pumps TwisTorr 74 FS and 305 FS, and dry scroll backing pump IDP-3
  • Wheels option available

-
X3582-64005 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 100 CF-F (6 in CFF), IDP-3 scroll primary pump, 230 V 50-60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64006 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 160 ISO-K, IDP-3 scroll primary pump, 230 V 50-60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64003 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 160 CF-F (8 in CFF), IDP-3 scroll primary pump, 115 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64004 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 100 ISO-K, IDP-3 scroll primary pump, 230 V 50-60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64001 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 100 CF-F (6 in CFF), IDP-3 scroll primary pump, 115 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64002 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 160 ISO-K, IDP-3 scroll primary pump, 115 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64010 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 160 ISO-K, IDP-3 scroll primary pump, 100 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64000 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 100 ISO-K, IDP-3 scroll primary pump, 115 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64011 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 160 CF-F (8 in CFF), IDP-3 scroll primary pump, 100 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64009 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 100 CF-F (6 in CFF), IDP-3 scroll primary pump, 100 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64007 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 160 CF-F (8 in CFF), IDP-3 scroll primary pump, 230 V 50-60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote
X3582-64008 TPS-compact turbo pumping system, TwisTorr 305 FS turbo pump, DN 100 ISO-K, IDP-3 scroll primary pump, 100 V 60Hz TwisTorr 305 FS Turbo Pump 1 Each Request Quote


-

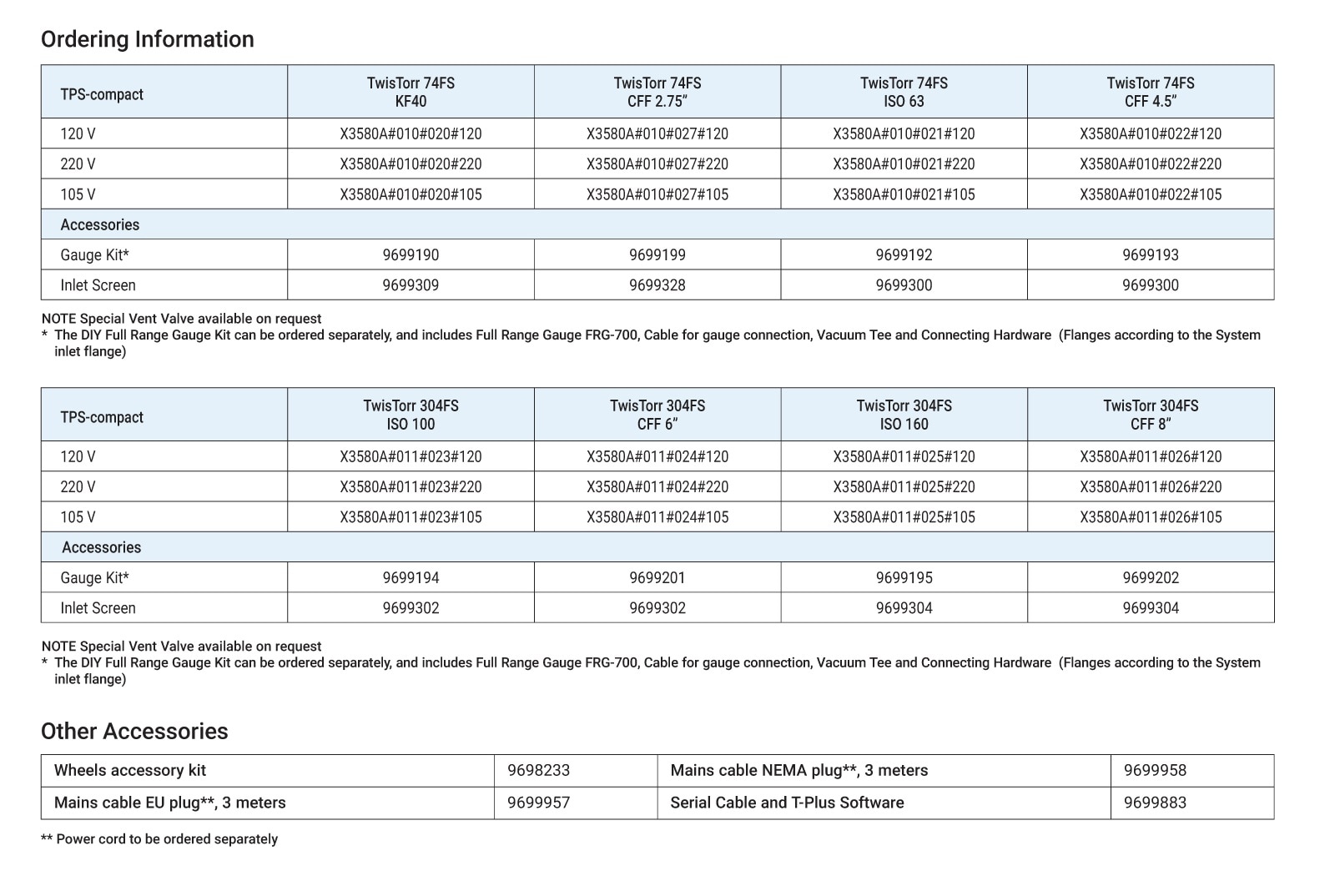

Some old models :
TPS-Compact Models Order Part Number (Pls refer to
TPS-compact user manual for detail):
X3580-64000, X3580-64001, X3580-64002, X3580-64003, X3580-64004, X3580-64005, X3580-64006, X3580-64007, X3580-64010, X3580-64011, X3580-64012, X3580-64013, X3580-64014, X3580-64015, X3580-64016, X3580-64017, X3580-64020, X3580-64021, X3580-64022, X3580-64023, X3580-64024, X3580-64025, X3580-64026, X3580-64027





Specifications

Technical Specifications

  Equipped with TwisTorr 74 FS Equipped with TwisTorr 304 FS
Pumping speed N2: 48 L/s (ISO 63, with inlet screen)* N2: 180 L/s (with inlet screen)*
Base pressure** 1x10-9 mbar [CFF flanges]
1x10-8 mbar [ISO flanges]
1x10-9 mbar [CFF flanges]
1x10-8 mbar [ISO flanges]
Pumpdown time (15 L volume) 46 sec (100 mbar); 104 sec (1 mbar);
160 sec (1x10-4 mbar);
210 sec (5x10-5 mbar); 400 sec (1.3 x 10-5 mbar)
80 sec (16 mbar); 110 sec (3 mbar);
155 sec (6 x 10-5); 200 sec (1 x 10-5)
Turbo pump rotational speed 70,000 RPM 60,000 RPM
Start-up time 144 sec. 150 sec.
Operating ambient temperature 5 °C to 35 °C 5 °C to 35 °C
Input voltage and frequency 115 Vac 60 Hz or 220-240 Vac 50/60 Hz
or 100 Vac 50/60 Hz
115 Vac 60 Hz or 220-240 Vac 50/60 Hz
or 100 Vac 50/60 Hz
Maximum input power 260 VA 310 VA
Bakeout temperature 120 °C at inlet [CFF flanges]
80 °C at inlet [KF/ISO flanges]
120 °C at inlet [CFF flanges]
80 °C at inlet [ISO flanges]
Communications RS-232 - Analogical I/O RS-232 - Analogical I/O
Weight kg (lbs.) 16.7 kg [36.8 lbs] 20.1 kg [44.3 lbs]
* Pump nominal speed: TwisTorr 74 FS N2: 60 L/s; Twistorr 304 FS N2: 250 L/s
** According to standard DIN 28 428.



Specifications and Drawing

TPS-compact Pumping Speed vs Pressure & Presssure vs Time Graphs


TPS-compact with 74 FS Outline Drawing

TPS-compact with 304 FS Outline Drawing


Literature
https://www.hexoind.com/index.php?ws=download )

Turbo Pumping Systems Brochure

Vacuum pumping systems that really fit your needs: features and benefits of TPS-mini, TPS-compact, TPS-mobile, and TPS-flexy.


TPS-compact data sheet

TPS-compact data sheet: turbo pumping system technical specifications and ordering information.


A-PLUS software release 2.0.2

A-PLUS software (formerly T-plus) - release 2.0.2 - communication, control and monitoring software designed to leverage the intelligence of Agilent vacuum products. 2 versions: 32-bit and 64-bit versions of Windows.


TPS-compact user manual

Instructions for use and technical specifications for the TPS-compact


TPS-compact Gas Ballast Quick Reference Card



TPS-compact Gas Ballast Quick Reference Card

Technical Overviews

The New TPS-compact and TPS-mobile Turbo Pumping Systems

Agilent turbo pumping systems, TPS-compact and TPS-mobile, now featuring Agilent TwisTorr 305 FS turbomolecular pump and TwisTorr 305 FSQ high flow turbomolecular pump. This document provides technical details and ordering information for these turbo pumping stations.
