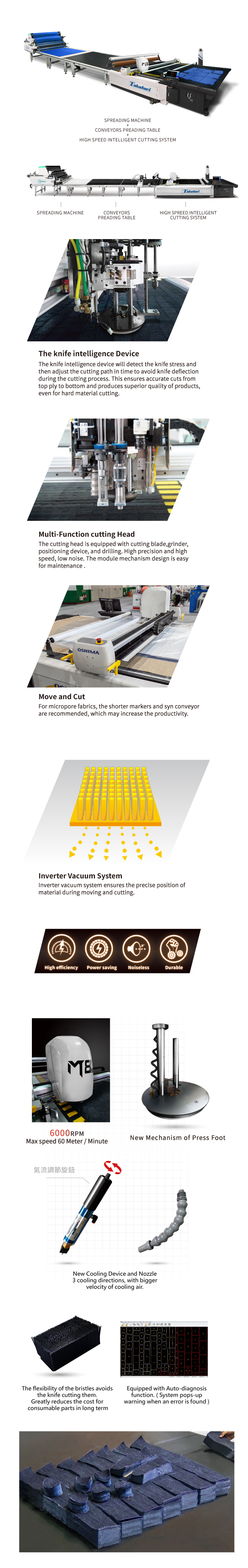

Features:
High efficiency, and high accuracy, Easy operation and better safety, high efficiency and easy operation.
Intelligent cutting design,ensures the precision.
Depth of cutting can be set,including I notch,internal and external V notch.
Preview and stimulation.
Cutting data can be saved.
Moving function,that may combine with spreading machine for mass production.
KI device detects the knife stress to adjust the cutting path without deflection.
Main Device:
Compensation device of cutting.
Moving and cutting.
Automatic blade width detecting device.
Stable vacuum control.
Knife cooling device.
Drill device.
The knife intelligence device.
Specification:
|
Model |
M6S/M8S |
|
Cutting Area WxL |
M6S/M8S:1900x1900mm |
|
Cutting Height |
M6S:Highest after compression 60mm(Max60mm)
M8S:Highest after compression 80mm(Max80mm)
(After compressed) |
|
Cutting Speed |
Max 50m/min (Mechanical 60m/min) |
|
Cutting Method |
Reciprocating |
|
Power |
3P/380V 50HZ/60HZ |
|
Consumption |
Max 38KVA(25KW) |
|
Air Supply |
Pressure:0.5MPa above |
Dimensions
LxWxH (mm) |
M6S/M8S:5100x2900x1900
(Including Outlet Chimney 2500-2800mm) |
