Model Number: SB-RSFR-125H

Working temperature: -45ºC ~ 125ºC

Structure

Halogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.

Usage

It is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.

Characteristics

Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
Shrink ratio: 2:1
Shrink temperature: 84ºC ~ 120ºC

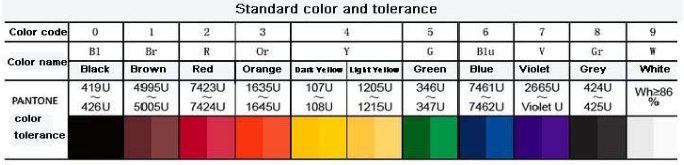

Table 1: Color Reference

Table 2: Specification

Property		Unit	Test Method	Standard
Tensile Strength		MPA	≥10.4(before aging)	GB/T 1040
Tensile Strength			≥7.3(after aging)	158ºC*168h
Breakage Elongation (%)		%	≥200(before aging)	GB/T 1040
Breakage Elongation (%)			≥100(after aging)	158ºC*168h
Heat Shock		-	no sticking & no cracking	250ºC*4h
Cold Blend		-	no cracking	-30ºC*4h
Breakdown Strength		KV/mm	≥15	GB/T 1408
Dielectric Withstand	600V	-	Pass	no breakdown for 2500V, 60s
Dielectric Withstand	300V	-	Pass	no breakdown for 1500V,60s
Volume Resistivity		Ω. cm	≥1×1014	GB/T 1410
Corrosion Performance		-	pass	158ºC*168h
Copper Stability		-	pass	158ºC*168h
Flammability		-	pass	VW-1

Table3: Dimension

1) halogen free flame-retardant heat shrinkable tube

Inner Diameter	As Supplied(mm)		After Recovery(mm)		Standard Package (m/spool)	Application Range (mm)
Inner Diameter	Inner Diameter	Wall Thickness	Inner Diameter	Wall Thickness	Standard Package (m/spool)	Application Range (mm)
Φ0.6	0.9±0.2	0.20±0.05	≤0.40	0.33±0.10	400	0.4~0.7
Φ0.8	1.1±0.2	0.20±0.05	≤0.50	0.33±0.10	400	0.6~0.8
Φ1.0	1.5±0.2	0.20±0.05	≤0.65	0.36±0.10	400	0.75~0.9
Φ1.5	2.0±0.2	0.20±0.05	≤0.85	0.36±0.10	400	0.95~1.4
Φ2.0	2.5±0.2	0.23±0.05	≤1.00	0.45±0.10	400	1.1~1.8
Φ2.5	3.0±0.2	0.23±0.05	≤1.30	0.45±0.10	400	1.35~2.3
Φ3.0	3.5±0.2	0.23±0.05	≤1.50	0.45±0.10	400	1.6~2.7
Φ3.5	4.0±0.2	0.23±0.05	≤1.80	0.45±0.10	400	1.85~3.2
Φ4.0	4.5±0.2	0.25±0.05	≤2.00	0.45±0.10	400	2.1~3.6
Φ4.5	5.0±0.2	0.28±0.05	≤2.30	0.56±0.10	200	2.35~4.0
Φ5.0	5.5±0.2	0.28±0.05	≤2.50	0.56±0.10	200	2.6~4.5
Φ6.0	6.5±0.2	0.28±0.05	≤3.00	0.56±0.10	200	3.1~5.4
Φ7.0	7.5±0.3	0.28±0.05	≤3.50	0.56±0.10	100	3.7~6.3
Φ8.0	8.5±0.3	0.30±0.08	≤4.00	0.56±0.10	100	4.2~7.2
Φ9.0	9.5±0.3	0.30±0.08	≤4.50	0.56±0.10	100	4.7~8.0
Φ10	10.5±0.3	0.30±0.08	≤5.00	0.56±0.10	100	5.2~9.0
Φ11	11.5±0.3	0.30±0.08	≤5.50	0.56±0.10	100	5.7~10
Φ12	12.5±0.3	0.30±0.08	≤6.00	0.56±0.10	100	6.2~11
Φ13	13.5±0.3	0.30±0.08	≤6.50	0.56±0.10	100	6.7~12
Φ14	14.5±0.3	0.35±0.10	≤7.00	0.70±0.10	100	7.3~13
Φ15	15.5±0.4	0.35±0.10	≤7.50	0.70±0.10	100	7.8~14
Φ16	16.5±0.4	0.35±0.10	≤8.00	0.70±0.10	100	8.3~15
Φ17	17.5±0.4	0.35±0.10	≤8.50	0.70±0.10	100	8.8~16
Φ18	19.0±0.5	0.35±0.10	≤9.00	0.70±0.10	100	9.3~17
Φ20	22.0±0.5	0.35±0.10	≤10.00	0.83±0.15	100	10.4~19
Φ22	24.0±0.5	0.40±0.12	≤11.00	0.83±0.15	100	11.4~21
Φ25	26.0±0.5	0.40±0.12	≤12.50	0.90±0.15	50	12.8~24
Φ28	29.0±0.5	0.45±0.12	≤14.00	0.90±0.15	50	14.4~29
Φ30	31.5±1.0	0.45±0.12	≤15.00	1.00±0.15	50	16~29
Φ35	36.5±1.0	0.45±0.12	≤17.50	1.00±0.15	50	18~34
Φ40	41.5±1.0	0.45±0.12	≤20.00	1.00±0.15	50	21~39
Φ45	46.5±1.0	0.50±0.15	≤22.5	1.00±0.15	25	23.5~44
Φ50	≥50	0.50±0.15	≤25.0	1.10±0.15	25	26~49
Φ60	≥60	0.60±0.15	≤30.0	1.20±0.15	25	35~55
Φ70	≥70	0.65±0.15	≤35.0	1.30±0.20	25	40~65
Φ80	≥80	0.65±0.15	≤40.0	1.30±0.20	25	45~75
Φ90	≥90	0.65±0.15	≤45.0	1.30±0.20	25	50~85
Φ100	≥100	0.65±0.20	≤50.0	1.30±0.20	25	55~95
Φ120	≥120	0.65±0.20	≤60.0	1.30±0.20	25	65~115
Φ150	≥150	0.65±0.20	≤70.0	1.30±0.20	25	80~145
Φ180	≥180	0.65±0.30	≤90.0	1.30±0.30	25	95~175
Φ210	≥210	0.65±0.30	≤105.0	1.30±0.30	25	110~205
Φ230	≥230	0.65±0.30	≤115.0	1.30±0.30	25	120~225
Φ250	≥250	0.65±0.30	≤125.0	1.30±0.30	25	130~240

2) halogen free flame-retardant ultra thin heat shrinkable tube

Inner Diameter	As Supplied(mm)		After Recovery(mm)		Package (m/spool)	Application Range (mm)
Inner Diameter	Inner Diameter	Wall Thickness	Inner Diameter	Wall Thickness	Package (m/spool)	Application Range (mm)
Φ0.6CB	0.9±0.2	0.13±0.05	≤0.40	0.20±0.10	200	0.4~0.7
Φ0.8CB	1.0±0.2	0.13±0.05	≤0.50	0.20±0.10	200	0.6~0.8
Φ1.0CB	1.40±0.20	0.13±0.05	≤0.65	0.20±0.10	200	0.7~1.0
Φ1.5CB	1.90±0.20	0.13±0.05	≤0.85	0.20±0.10	200	0.9~1.4
Φ2.0CB	2.40±0.20	0.13±0.05	≤1.00	0.22±0.10	200	1.1~1.8
Φ2.5CB	2.90±0.20	0.13±0.05	≤1.30	0.25±0.10	200	1.4~2.3
Φ3.0CB	3.40±0.20	0.13±0.05	≤1.50	0.28±0.10	200	1.6~2.7
Φ3.5CB	3.90±0.20	0.13±0.05	≤1.80	0.28±0.10	200	1.9~2.3
Φ4.0CB	4.40±0.20	0.15±0.05	≤2.00	0.30±0.10	200	2.1~3.6
Φ4.5CB	4.90±0.20	0.15±0.05	≤2.30	0.30±0.10	100	2.4~4.0
Φ5.0CB	5.50±0.20	0.15±0.05	≤2.50	0.32±0.10	100	2.6~4.5
Φ6.0CB	6.50±0.20	0.15±0.05	≤3.00	0.32±0.10	100	3.1~5.4
Φ7.0CB	7.50±0.30	0.15±0.05	≤3.50	0.32±0.10	100	3.7~6.3
Φ8.0CB	8.50±0.30	0.15±0.05	≤4.00	0.32±0.10	100	4.2~7.2
Φ9.0CB	9.50±0.30	0.15±0.05	≤4.50	0.35±0.10	100	4.7~8.0
Φ10CB	10.50±0.30	0.15±0.05	≤5.00	0.35±0.10	100	5.2~9.0
Φ11CB	11.50±0.30	0.18±0.05	≤5.50	0.40±0.10	100	5.7~10.0
Φ12CB	12.50±0.30	0.20±0.05	≤6.00	0.40±0.10	100	6.2~11.0
Φ13CB	13.50±0.30	0.20±0.05	≤6.50	0.40±0.10	100	6.7~12.0
Φ14CB	14.50±0.30	0.20±0.05	≤7.00	0.40±0.10	100	7.3~13.0
Φ15CB	15.50±0.40	0.20±0.05	≤7.50	0.40±0.10	100	7.8~14.0
Φ16CB	16.50±0.40	0.22±0.05	≤8.00	0.40±0.10	100	8.3~15.0
Φ17CB	17.50±0.40	0.22±0.05	≤8.50	0.40±0.10	100	8.8~16.0
Φ18CB	18.50±0.40	0.22±0.05	≤9.00	0.42±0.10	100	9.3~17.0
Φ20CB	20.50±0.50	0.25±0.05	≤10.0	0.45±0.10	100	10.5~19.0
Φ22CB	22.50±0.50	0.25±0.05	≤11.0	0.45±0.10	100	11.5~20.5

Color: Standard color is black (other color available upon request).
