DYNAMOMETERS
Product Description

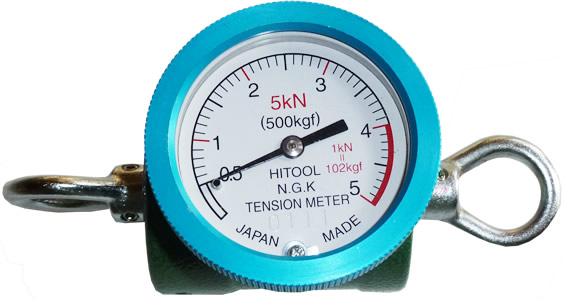

A Dynamometer is also used as a tension meter. Mainly functions to measure tension, traction and also weight. The dynamometer is designed to be small, compact, lightweight to be carry around during line work. The dynamometer is constructed to work perfectly well even in harsh field conditions such as cold and even humid/hot environments.
Product Benefits
** Optional maximum reading indicator pointer kit available for easy installation.
** Optional easily installed screw-on face with twin steel protective bars also available.
** Each tool is serial numbered and supplied in a heavy duty fabric case with calibration certificate.
** Available in sizes 5kN up to 100kN.
** Accuracy of +/- 3%
** Compact, Lightweight, rugged construction
** Designed for line work.
** Accepts harsh field conditions(cold&heat)
** Graduated in kilonewtons (kN).
** Accuracy +/- 3% Full Scales.
** Both pulling eyes rotate 360 degrees.
** Optional maximum reading indicator pointer kit available for easy installation.
** Optional easily installed screw-on face with twin steel protective bars also available.
** Each tool is serial numbered and supplied in a heavy duty fabric case with calibration certificate.
** Available in sizes 5kN up to 100kN.

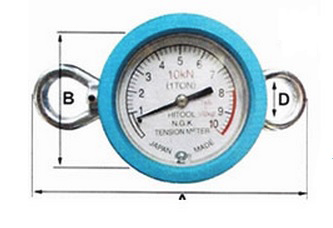

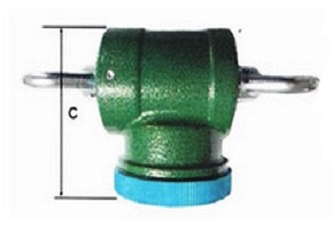

Product Specification
|
Item Code |
Capacity |
Weight |
A |
B-Body |
C |
D |
Weight |
|
DSSB-CLA-DYMTM5-0.5TON |
5 kN |
0.9 kg |
160 mm |
75 mm |
90 mm |
20 mm |
0.9 kg |
|
DSSB-CLA-DYMTM10-1TON |
10kN |
1.0 kg |
190 mm |
75 mm |
90 mm |
25 mm |
1.0 kg |
|
DSSB-CLA-DYMTM20-2TON |
20kN |
1.1 kg |
190 mm |
75 mm |
90 mm |
25 mm |
1.1 kg |
|
DSSB-CLA-DYMTM30-3TON |
30kN |
1.9 kg |
240 mm |
75 mm |
95 mm |
35 mm |
1.9 kg |
|
DSSB-CLA-DYMTM50-5TON |
50kN |
2.6 kg |
250 mm |
90 mm |
120 mm |
35 mm |
2.6 kg |
|
DSSB-CLA-DYMTM100-10TON |
100kN |
6.0 kg |
350 mm |
110 mm |
140 mm |
50 mm |
6.0 kg |
Product Image
.bmp)
.bmp)
.jpg)
