INSULATED SPADE TERMINALS

Product Description

Insulated Spade Terminals are known as fast disconnectors as they are able to quickly and safely disconnect electrical components and devices. They are made up of 99.95% of original pure copper (CU) elctroplated with tin (Sn) for the finishing to prevent any form of corrosion under any weather condition. The insulation material of the spade terminals is made up of polyvinyl-chloride (PVC).

It is in compliance with Brittish Standard (B.S), Japan (JLS), Germany (DIN) and United States of America (USA)

Product Specification

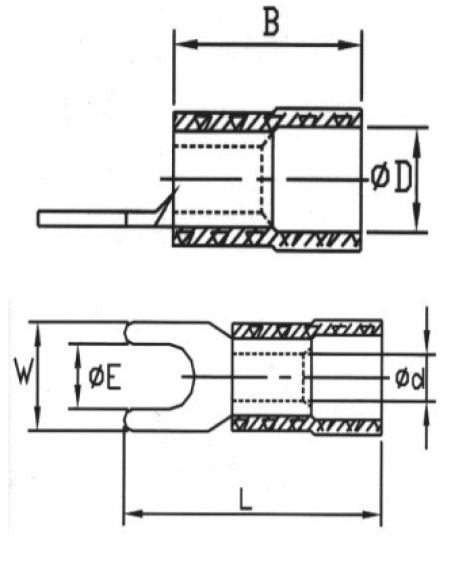

Item Code	Colour	Wire Range (mm2) #AWG	Hole Size	Dimensions (mm)
Item Code	Colour	Wire Range (mm2) #AWG	ØE	ØD	Ød	W	B	L
DSSB-CNT-VF1.25-3YS	Red	(0.25 - 1.65) 22 - 16	3.7	4.00	1.70	5.7	10.40	21.8
DSSB-CNT-VF1.25-3YW DSSB-CNT-VF1.25-3YS			3.7			6.2		21.8
DSSB-CNT-VF1.25-3YW DSSB-CNT-VF1.25-3YS			3.2			5.7		21.8
DSSB-CNT-VF1.25-4YS			4.3			6.4		21.8
DSSB-CNT-VF1.25-4YW			4.3			7.2		21.8
DSSB-CNT-VF1.25-5Y			5.3			8.0		21.8
DSSB-CNT-VF1.25-6Y			6.7			10.7		21.8
DSSB-CNT-VF2-3YSA	Blue	(1.04 - 2.63) 16 - 14	3.2	4.60	2.30	5.7	10.40	21.8
DSSB-CNT-VF2-3YS			3.7			5.7		21.8
DSSB-CNT-VF2-3YW			3.7			6.2		21.8
DSSB-CNT-VF2-4YS			4.3			6.4		21.8
DSSB-CNT-VF2-4YW			4.3			7.2		21.8
DSSB-CNT-VF2-5Y			5.3			8.0		21.8
DSSB-CNT-VF2-6Y			6.7			10.7		24.8
DSSB-CNT-VF3.5-4Y	Yellow	(2.63-4.60) 12 - 10	4.3	5.60	3.20	8.0	13.3	24.8
DSSB-CNT-VF3.5-5Y			5.3			8.0		24.8
DSSB-CNT-VF3.5-6Y			6.7			12.0		30.8
DSSB-CNT-VF5.5-3Y	Yellow	(4.60 - 6.64) 12 - 10	3.7	6.6	3.5	8.2	13.6	26.5
DSSB-CNT-VF5.5-4Y			4.3			8.2		26.5
DSSB-CNT-VF5.5-5Y			5.3			9.0		26.5
DSSB-CNT-VF5.5-6Y			6.4			12.0		31.2
DSSB-CNT-VF5.5-8Y			8.4			15.0		34.5
DSSB-CNT-VF8-5Y	Red	(6.64 - 10. 52) 8	5.3	8.3	4.5	9.0	17.5	32.0
DSSB-CNT-VF8-6Y	Red	(6.64 - 10. 52) 8	6.7	8.3	4.5	12.0	17.5	32.5
DSSB-CNT-VF14-5Y	Red	(10.52 - 16.78) 10	5.3	9.7	5.9	12.0	23.0	40.5
DSSB-CNT-VF14-6Y	Red	(10.52 - 16.78) 10	6.7	9.7	5.9	12.0	23.0	40.5

Product Image
