BI-METAL CABLE LUG






Product Description


The Bi-Metal Cable Lug is tested to IEC 1238-1:1998
** All lugs are pre-filled with jointing compound, plugged and individually labeled.
** All dimensions are based on French Standard : Standard De France HN 68-S-90 & TNB-MALAYSIA

Manufactured from solid aluminium and solid copper, friction Welded
For Hexagon Die and Indent Die

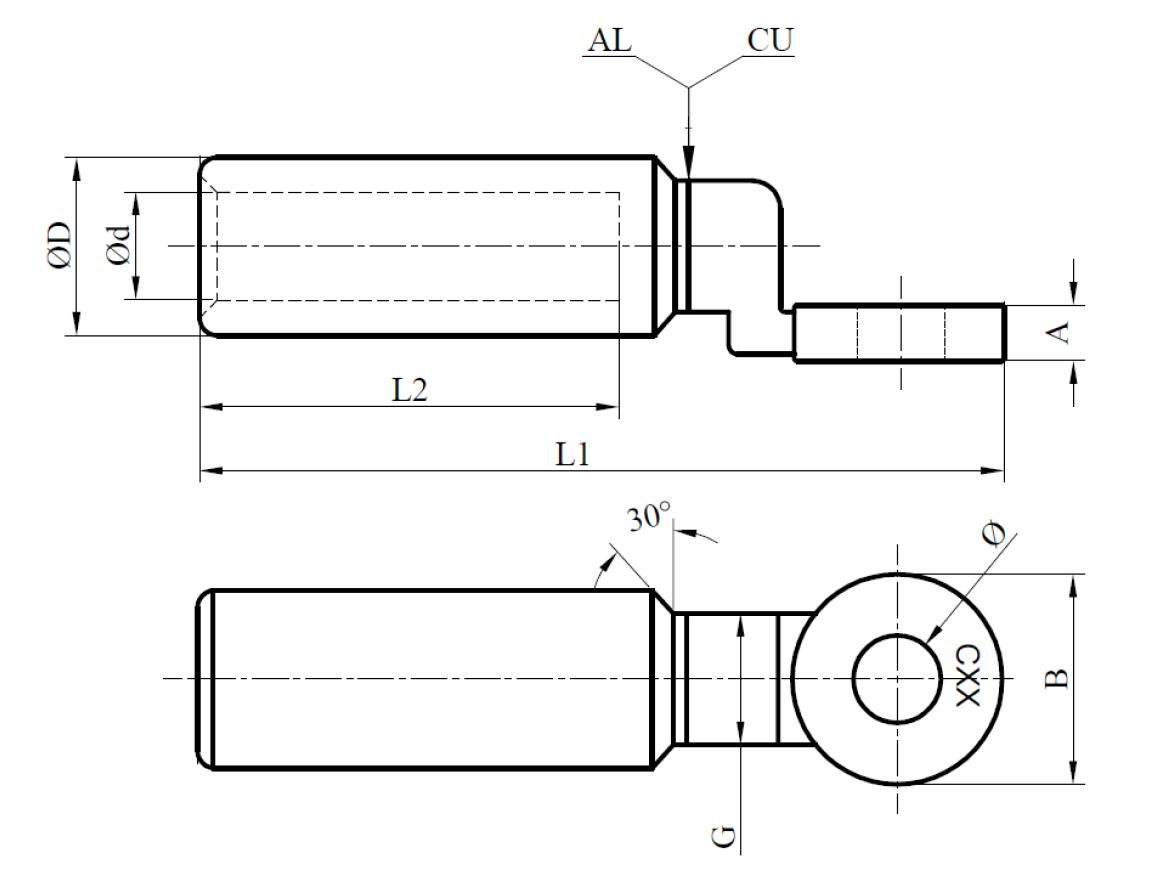

Product Specification



Item Code  Conductor
(mm2)		 Stud Hole
(mm2)		 B A L1 L2 D d G
DSSB-CNT-LUG-BI16 16 10.5 20 4 80 43 16 5.5 12
DSSB-CNT-LUG-BI25 25 10.5 20 4 80 43 16 6.5 12
DSSB-CNT-LUG-BI35 35 10.5 20 4 80 43 16 8.5 12
DSSB-CNT-LUG-BI50 50 12.8 24 5 88 43 20 9.5 14.8
DSSB-CNT-LUG-BI70 70 12.8 24 5 88 43 20 11.0 14.8
DSSB-CNT-LUG-BI95 95 12.8 24 5 88 43 20 12.5 14.8
DSSB-CNT-LUG-BI20 120 12.8 30 6 110 59 25 13.7 18.8
DSSB-CNT-LUG-BI50 150 12.8 30 6 110 59 25 15.5 18.8
DSSB-CNT-LUG-BI85 185 12.8 35 7 116 59 32 17.0 23.8
DSSB-CNT-LUG-B240 240 12.8 35 7 116 59 32 19.5 23.8
DSSB-CNT-LUG-BI300 300 16.5 36 7.5 155 93 40 23.3 28
DSSB-CNT-LUG-BI400 400 16.5 36 7.5 155 93 40 26.0 28
DSSB-CNT-LUG-BI500 500 17.0 60 X 60 10 195 94 47 29.1 36.8
DSSB-CNT-LUG-BI630 630 17.0 60 X 60 10 195 94 47 32.5 36.8
DSSB-CNT-LUG-BI800 800 blank 80 x 80 10 260 125 60 39.0 45
DSSB-CNT-LUG-BI1000 1000 blank 80 X 80 10 260 125 60 43.0 45

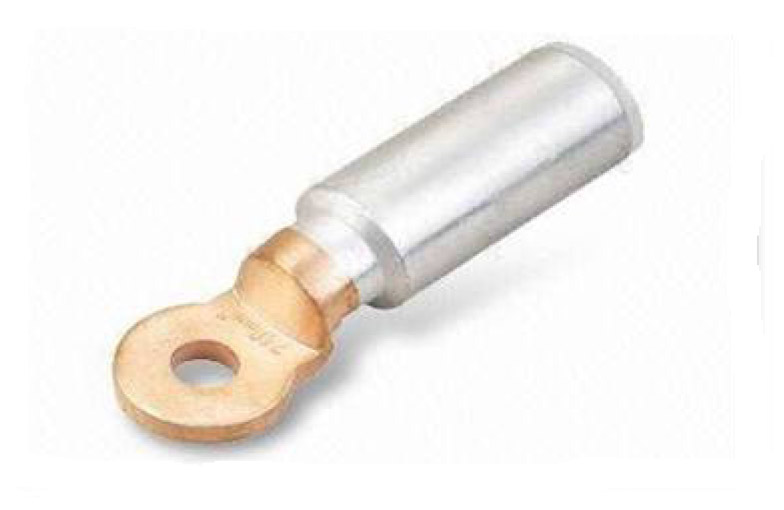

Product Image
