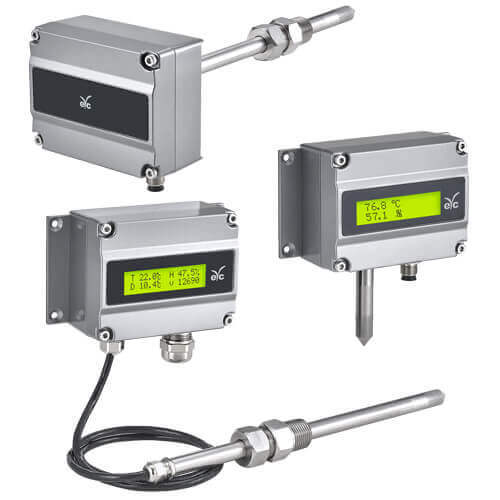

Features : IP65 / Process temp.：up to 200°C / S.S. probe proof pressure：10 bar, metal connector
Input：Capacitive Humidity Sensor & Pt100 Ω A class
Measuring range：
THM801：-40 ... +80°C / THM802：-40 ... +120°C /
THM803：-40 ... +200°C(as request) ;
0 ... 100%RH；-40 ... +60dp°C
Output：0 ... 20 mA / 4 ... 20 mA / 0 ... 1 V / 0 ... 5 V / 0 ... 10 V
Accuracy(at+25°C)：Temp.：±0.15°C±0.002°C x t actul
●Additional option：( ILAC/TAF ) Test report - Standard calibration laboratory ( TAF accreditation：3032, complying with ISO/IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA
Description
· IP65 IP rating, rugged aluminum case, fit in variety harsh environment
· Capable of temperature compensation
· Linear adjustment temperature & humidity by computer, analogue output or option RS-485
· Measure high accuracy temperature & humidity, reaction quickly, the sensor can work well after temporary condensation, long term stable in high humidity environment
· Process temp.：up to 200°C, S.S. probe proof pressure：10 bar, metal connector : installation repeatedly
· Switch multifunction physical quantities：[%RH]、[°C]、[mbar]、[g/kg]、[g/m3]、[kj/kg]
· Calibration physical quantities, measuring range, analogue output, station, etc
· Free calibration software : Data logger / Record 65535 datas / Charts
Specification
Measuring range
Temp.：THM801：-40 ... +80°C / THM802：-40 ... +120°C / THM803：40 ... +200°C(as request) ; Humidity：0 ... 100%RH；dew point：-40 ... +60 dp°C
Accuracy (at 25°C)
Temp.：±0.15°C±0.002°C x tactual
Humidity(0% ... 90%)：Nonlinear error：± 1.2%RH；Hysteresis error：± 0.8%RH；Repeatability error：± 0.4%RH
humidity(90% ... 100%)：± 2%RH
Thermal sensitivity Temperature error：0.05 % RH / °C
Output：0 ... 20 mA / 4 ... 20 mA / 0 ... 1 V / 0 ... 5 V / 0 ... 10 V
Signal Connection：3-Wire
Load Resistance
Current output：Max. 500 Ω
Voltage output：Min. 10 KΩ
Output Calibration(Zero & Span)adjustment range：Software；Keyboard
Power Supply：DC 8 ... 35 V / AC 12 ... 30 V
IP rating：Body : IP65；Probe : IP20
