Output：RS-485 / 0 … 10 V / 4 … 20 mA
RS-485：Digital output with Modbus RTU protocol, 0 ... 6000 PPM
Measuring range：0 … 2,000 / 0 … 5,000 / 0 … 20,000 (PPM) (Max.：50,000 PPM)
Accuracy：±40 PPM±3% of reading(at 25°C)
IP rating：IP54(Clamp)；IP65(Flange)
Description
-
Using patented state-of-the-art non-dispersive infrared(NDIR)wave-guide technology and offers reliable measurements
-
Comply to EMC directive 2014 / 30 / EU
-
CO2 Measuring range：0 … 2,000 / 0 … 5,000 / 0 … 20,000(PPM) (Max.：50,000 PPM)；IP65 / IP54
-
Digital output(RS-485 Modbus RTU protocol, 0 ... 6000 PPM), analog output(0 … 10 V, 4 … 20 mA)
-
Maintenance-free in most HVAC ventilation applications
-
High tolerance to extreme humidity environment conditions
-
Non-frill design, direct DDC connection
eYc GS07 is a state-of-the-art non-dispersive infrared(NDIR)carbon dioxide(CO2 )transmitter. The direct insertion design and miniature size make it easy to install in the ventilation duct. eYc GS07 provides measurement in analog outputs(0 … 10 V, 4 … 20 mA)and digital output(RS-485 Modbus RTU protocol). With CO2 demand controlled ventilations, eYc GS07 helps to save money by decreasing the energy consumption while maintaining a healthier indoor climate
Specification
Measuring range：0 … 2,000 / 0 … 5,000 / 0 … 20,000 (PPM) (Max.：50,000 PPM)
Output：RS-485 / Voltage or current
RS-485：Digital output with Modbus RTU protocol, 0 ... 6000 PPM
Voltage or current signal terminal CO2
Operating temperature range：0 … 50°C
Storage temperature range：-40 … +70°C
Operating humidity range：0 … 100% RH(Sensor in powered-up condition)
Operating environment：Residential, commercial and industrial spaces
Warm-up time：≦1 min(at full specs≦15 min)
Sensor life expectancy：＞15 years
Duct air velocity：Direct insertion sensor, no minimum airspeed requirement
Maintenance interval：No maintenance(with ABC algorithm)
Power input：AC / DC 24 V±20%, 50 Hz or 60Hz(Half-wave rectifier input)
Power consumption：＜1 W average
Connection wires：M12 male connector for power input(G+, G0)& voltage / Current output(Out) with M12 female quick connection cable(AWG24 wires)
Sensing method：Non-dispersive infrared(NDIR)waveguide technology with Automatic Background
Calibration(ABC)and passive gas diffusion(No moving parts)
Response time(T1/e)：＜10 sec(at 30 cc/min. flow rate) / ＜3 min diffusion time
Repeatability：±30 PPM±1% of reading
Accuracy：±40 PPM±3% of reading(at 25°C)
Annual zero drift：＜±10 PPM(with ABC function)
Pressure dependence：+1.6% reading per hPa
Installation support：Background level calibration adjustment jumper trigger(bCAL)
Dimension：94x30 mm diameter

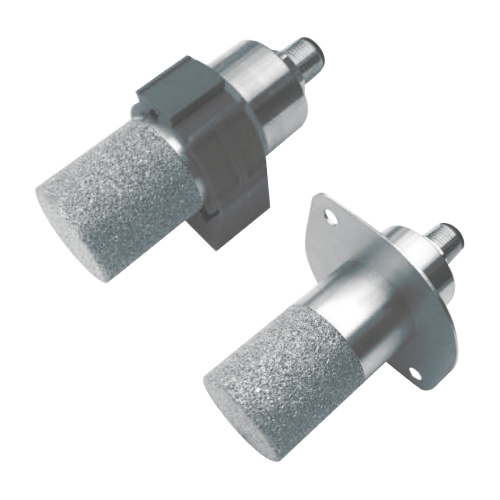

Installation method：Clamp or Flange
IP rating：P54(Clamp)；IP65(Flange)
Compliance with EMC directive：2014 / 30 / EU
Application
Greenhouses / Mushroom farming / Industrial safety / AHUs in high RH regions
