Description
-
Prodec perforated acoustic panels are improved by acoustic engineers to providebest sound emission in an interior decorative way.
-
Our panels have two types as full holed and dual-diameter.
-
Full holed models, perforated as thick as the panels.
-
Dual-diameter models, perforated from both sides and holes, become double roomy panels.
-
There are also different types of hole sizes, spacings, and arrangements to choose.
Specification
|
Standard Size |
: |
600×600mm / 600x1200mm |
|
Thickness |
: |
12mm / 15mm / 18mm |
|
Core |
: |
Standard MDF| Fireproofing MDF| ECO MDF| MGO| Composite |
|
Finish |
: |
Melamine| Wood Veneer| Paint| HPL |
|
Item |
: |
E16/6 | E16/8 | E32/6 | E5/1.5 | V32/6 | V16/6 | U60-30-6 |
Application Place
Studios, Auditoriums, Meeting rooms, Gymnasiums

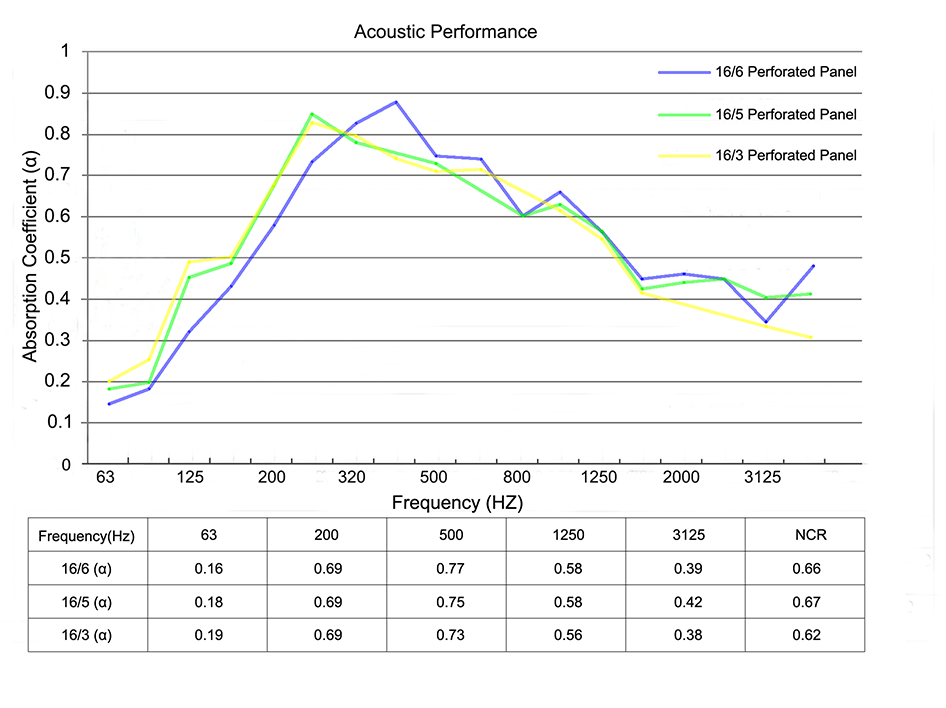

Acoustic Performance
TEST CONDITION
-
15mm thickness acoustic panel
-
Fill 50mm thickness 32kg/m3 acoustic cotton at the back
-
50mm Back Space

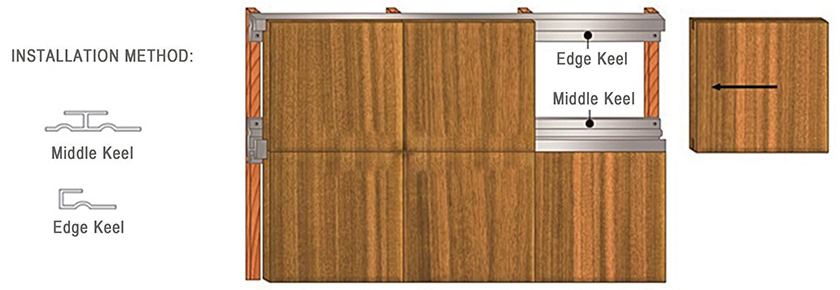

Installation Method
This system components including middle keel and edge keel, apply to all perforated panel, easy and cost-efficient.
-
Mount wood battens or light steel keels on the wall according to the design.
-
Install fiberglass/rock wool between the battens/keels.
-
According to the work drawing, install profile(middle keel edge keel) and fix our perforated acoustic panels on the wood batten piece by piece form left to right or from down to up.
