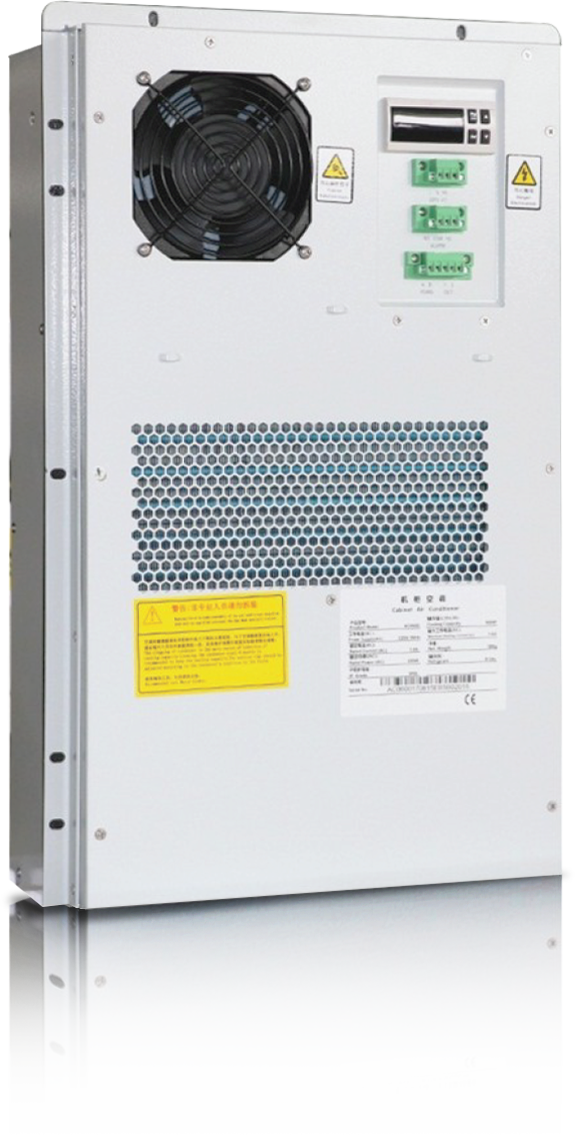

PyroCool - HPC800T

Description

HPC series panel air conditioner is an industrial grade high reliability temperature control equipment applied to cabinets with relatively concentrated heat source. It effectively solves the cabinet heating problem with the advantages of short air duct and uniform cooling air-out.

• Applicable to both outdoor/indoor cabinet cooling.
• Flexible and convenient installation.
• Available as both AC & DC powered (contact us for the DC powered version).
• Low noise, high energy efficiency, corrosion resistant and outstanding high temperature performance.
• IP55 Protection.
• RS485 communication interface.
• Dry contact alarm output, NO/NC option.
• Compressor manufactured and supplied by Hitachi, fan from EBM Papst.
• Using environmentally friendly refrigerant R134a.
• Closed loop cooling protects equipment against high temperature, dust & humidity.

Model Number	HPC800T (2730 BTU)
Product name	800W AC Cabinet Air Conditioner
Product Type	AC Air Conditioner
Power supply	220VAC~50Hz
Cooling capacity (W)	800
Power consumption (W)	300
Range of working temperature (°C)	-40 ~+55
Running current (A)	1.4
Dimension (mm)	L320*D170*H550
Dimension with flange (mm)	L352*D170*H582
Refrigerant type	R134a
IP level	IP 55
Noise level (dB)	60
Weight (kg)	15
Installation	Door mounted (Embedding slightly)
Certification	CE
Color	Electrostatic coating (RAL7035)
Temperature control mode	Digital display thermostat
Power supply connection	Three-core conductor (2~5m long)



Package	Standard: Foam corner protector + individual carton Optional: Extra wooden case
Standard Single Carton Pack	Net weight: 15kg Gross Weight: 17kg Size: L436*D237*H665mm Extra case: Size and weight varies according to the quantity in one case
