15-50% Rh Dry Cabinet C15U/C15B Series
15-50% Rh Dry Cabinet C15U/C15B Series



15-50% Rh Dry Cabinet C15U/C15B Series

OS Electronics Sdn Bhd flag
分类: Industrial Dry Cabinet 当前有货
欲了解更多详情，请游览我们的官方网站 osjutze.com
游览官方网站 联络我们
详情

Rh Dry Cabinet C15 Series has an adjustable humidity range (15-50% RH). This kind of dry cabinet box is designed to protect measuring devices, electronic devices, PCB, medicine, some metal materials, and so on. And please also note the dry cabinet could only remove the humidity, and could not add humidity. And Dry Box Desiccator C15 Series has two series, C15U, and C15B.



Specifications of 15-50% Rh Dry Cabinet C15U/C15B Series

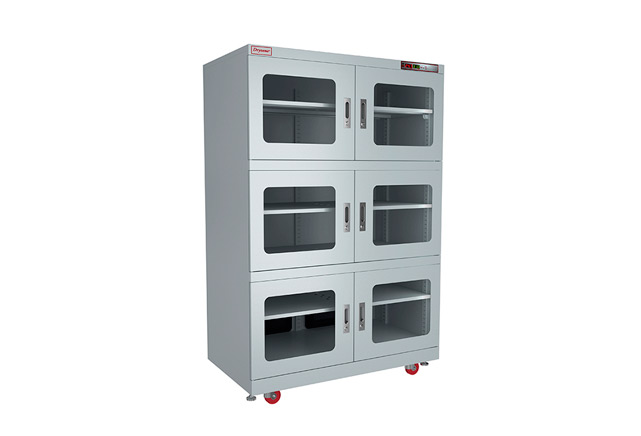

C15U-1200-6 Desiccant Dry Cabinet

C15U-1200-6 Desiccant Dry Cabinet

Outside Dimension

W1200*D695*H1820MM

Internal Dimension

W1198*D645*H1618MM

Capacity

1250L

Shelves

5 shelves

Power Consumption

9.5w/h(Ave); 145w/h(Max)

Color

White

Voltage

230V/110V



C15U-1200-6 Desiccant Dry Cabinet

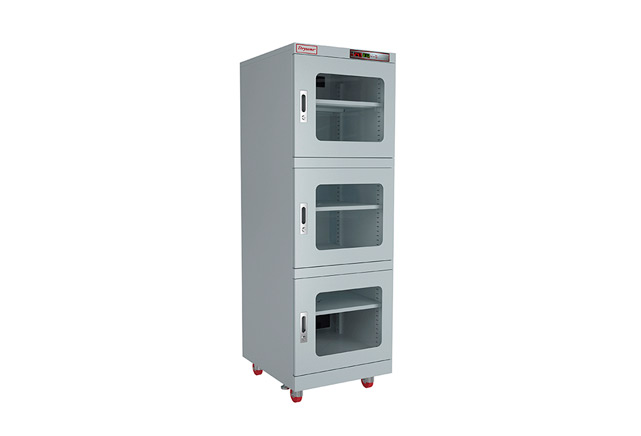

C15U-600 Dry Cabinet Box

C15U-600 Dry Cabinet Box

Outside Dimension

W600*D695*H1820MM

Internal Dimension

W598*D645*H1618MM

Capacity

624L

Shelves

5 shelves

Power Consumption

6.5w/h(Ave); 145w/h(Max)

Color

White

Voltage

230V/110V



C15U-600 Dry Cabinet Box

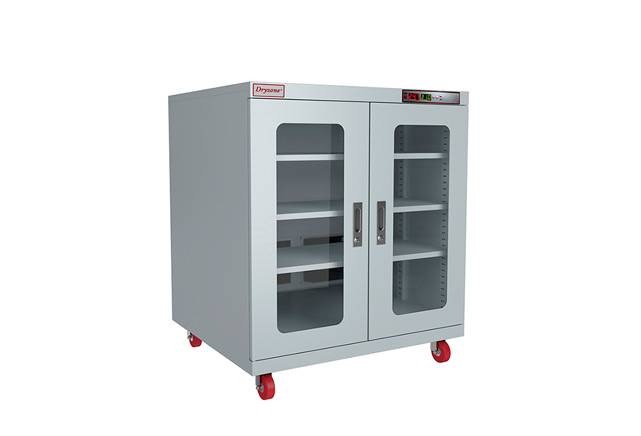

C15U-575 Dry Box Desiccator

C15U-575 Dry Box Desiccator

Outside Dimension

W905*D823*H1050MM

Internal Dimension

W903*D773*H869MM

Capacity

607L

Shelves

3shelves

Power Consumption

5.5w/h(Ave); 145w/h(Max)

Color

White

Voltage

230V/110V



C15U-575 Dry Box Desiccator

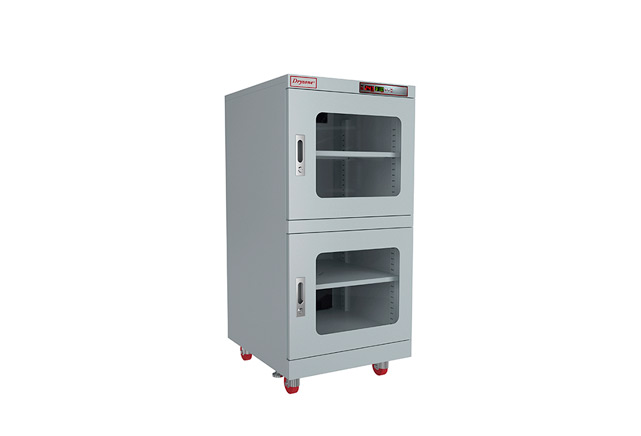

C15U-400 Rh Dry Cabinet

C15U-400 Rh Dry Cabinet

Outside Dimension

W600*D695*H1274MM

Internal Dimension

W598*D645*H1071MM

Capacity

413L

Shelves

3shelves

Power Consumption

6w/h(Ave); 145w/h(Max)

Color

White

Voltage

230V/110V



C15U-400 Rh Dry Cabinet

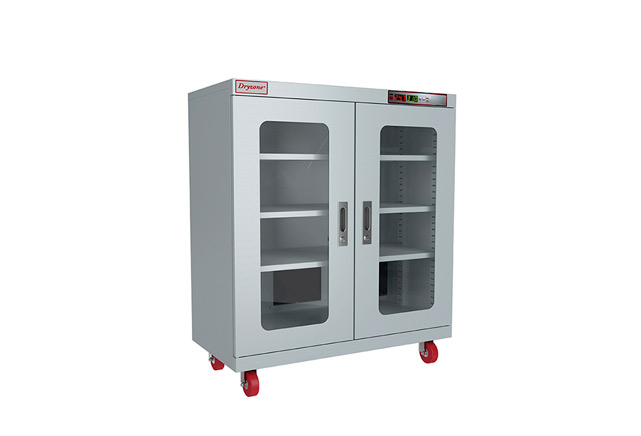

C15U-315 Desiccant Dry Cabinet

C15U-315 Desiccant Dry Cabinet

Outside Dimension

W905*D475*H1050MM

Internal Dimension

W903*D425*H869MM

Capacity

334L

Shelves

3shelves

Power Consumption

5.5w/h(Ave); 145w/h(Max)

Color

White

Voltage

230V/110V



C15U-315 Desiccant Dry Cabinet

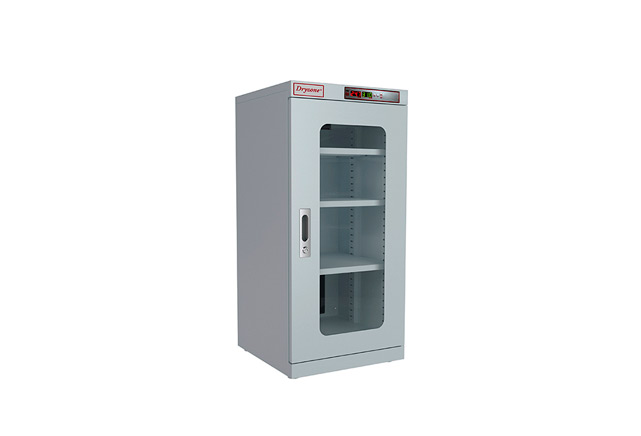

C15U-157 Dry Cabinet Box

C15U-157 Dry Cabinet Box

Outside Dimension

W600*D672*H1820MM

Internal Dimension

W448*D425*H869MM

Capacity

165L

Shelves

3shelves

Power Consumption

5w/h(Ave); 145w/h(Max)

Color

White

Voltage

230V/110V



C15U-157 Dry Cabinet Box

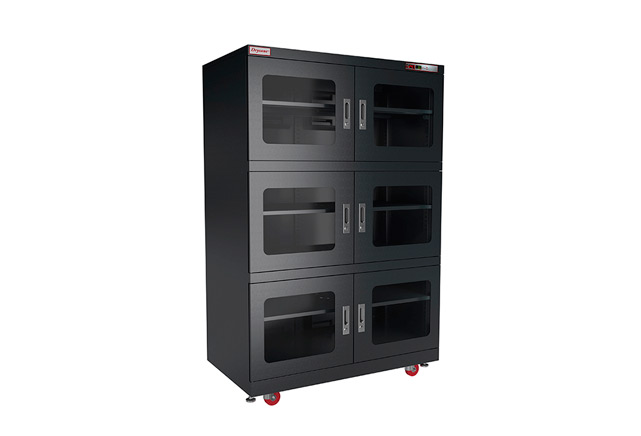

C15B-1200-6 Dry Box Desiccator

C15B-1200-6 Dry Box Desiccator

Outside Dimension

W1200*D695*H1820MM

Internal Dimension

W1198*D645*H1618MM

Capacity

1250L

Shelves

5 shelves

Power Consumption

9.5w/h(Ave); 145w/h(Max)

Color

Black

ESD Paint

106~109Ω (surface resistance)

Voltage

230V/110V



C15B-1200-6 Dry Box Desiccator

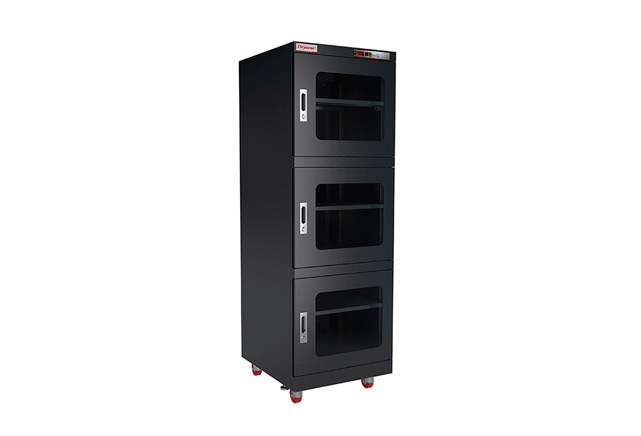

C15B-600 Rh Dry Cabinet

C15B-600 Rh Dry Cabinet

Outside Dimension

W600*D695*H1820MM

Internal Dimension

W598*D645*H1618MM

Capacity

624L

Shelves

5 shelves

Power Consumption

6.5w/h(Ave); 145w/h(Max)

Color

Black

ESD Paint

106~109Ω (surface resistance)

Voltage

230V/110V



C15B-600 Rh Dry Cabinet

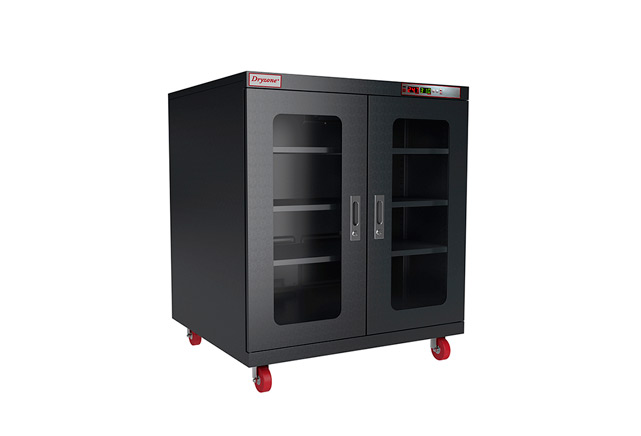

C15B-575 Desiccant Dry Cabinet

C15B-575 Desiccant Dry Cabinet

Outside Dimension

W905*D823*H1050MM

Internal Dimension

W903*D773*H869MM

Capacity

607L

Shelves

3shelves

Power Consumption

5.5w/h(Ave); 145w/h(Max)

Color

Black

ESD Paint

106~109Ω (surface resistance)

Voltage

230V/110V



C15B-575 Desiccant Dry Cabinet

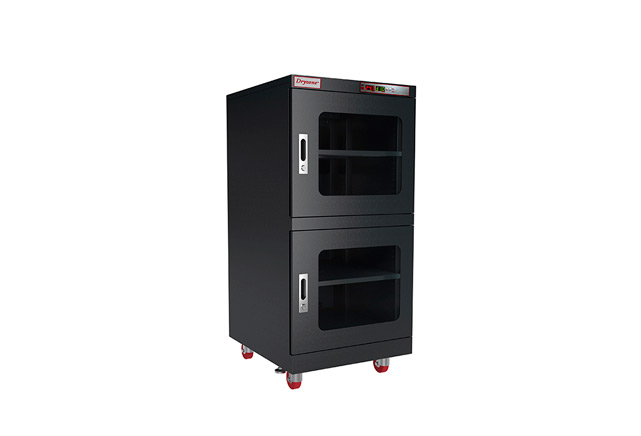

C15B-400 Dry Cabinet Box

C15B-400 Dry Cabinet Box

Outside Dimension

W600*D695*H1274MM

Internal Dimension

W598*D645*H1071MM

Capacity

413L

Shelves

3shelves

Power Consumption

6w/h(Ave); 145w/h(Max)

Color

Black

ESD Paint

106~109Ω (surface resistance)

Voltage

230V/110V



C15B-400 Dry Cabinet Box

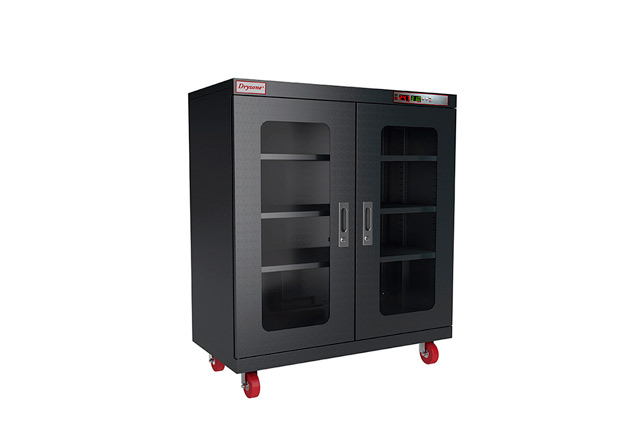

C15B-315 Dry Box Desiccator

C15B-315 Dry Box Desiccator

Outside Dimension

W905*D475*H1050MM

Internal Dimension

W903*D425*H869MM

Capacity

334L

Shelves

3shelves

Power Consumption

5.5w/h(Ave); 145w/h(Max)

Color

Black

ESD Paint

106~109Ω (surface resistance)

Voltage

230V/110V



C15B-315 Dry Box Desiccator

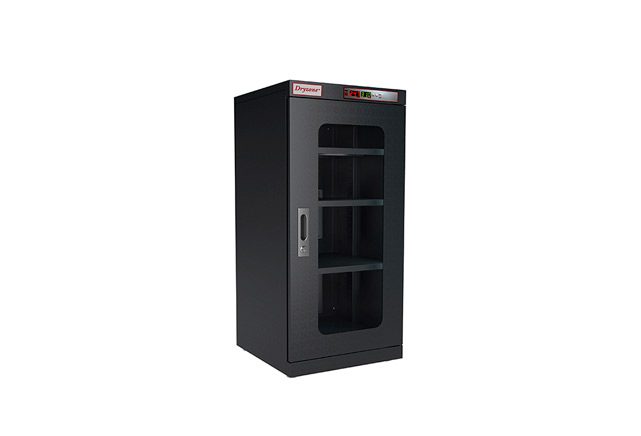

C15B-157 Rh Dry Cabinet

C15B-157 Rh Dry Cabinet

Outside Dimension

W600*D672*H1820MM

Internal Dimension

W448*D425*H869MM

Capacity

165L

Shelves

3shelves

Power Consumption

5w/h(Ave); 145w/h(Max)

Color

Black

ESD Paint

106~109Ω (surface resistance)

Voltage

230V/110V



C15B-157 Rh Dry Cabinet
