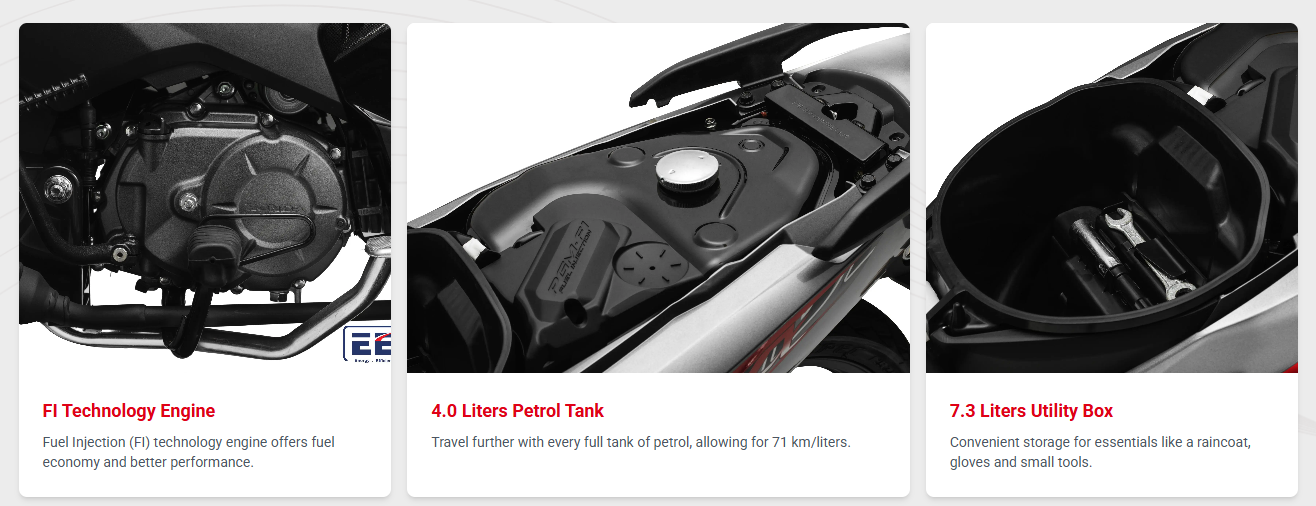

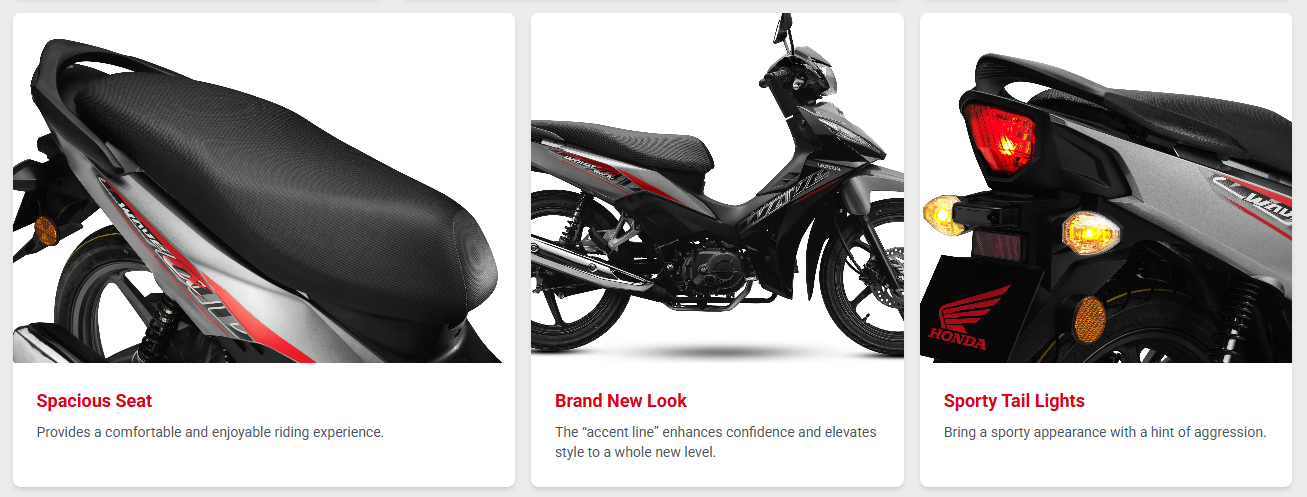

FEATURES
.png)
.png)
.png)
Specification
| Engine | ||
| Type | : | Single Cylinder, Air Cooled, SOHC 4-Stroke 2 Valve |
| Displacement | : | 109.2 cm³ |
| Bore x Stroke | : | 50.0 mm x 55.6 mm |
| Compression Ration | : | 9.3 : 1 |
| Max Power | : | 6.5 kW / 7,500 rpm |
| Max Torque | : | 8.7 Nm / 5,500 rpm |
| Engine Oil Capacity | : | 0.8 ! (After draining), 1.0 ! (After disassembly) |
| Fuel System | ||
| Carburation | : | PGM-FI (Programmed Fuel Injection) |
| Fuel Tank Capacity | : | 4.0 ! |
| Electrical System | ||
| Starter | : | Kick Starter with Electric Auto Start |
| Battery Capacity (A.h) | : | 3.0 A.h (10 HR) |
| ACG Output (V) | : | 12V |
| Drivetrain | ||
| Clutch Type | : | Automatic Centrifugal Clutch |
| Transmission Type | : | Constant Mesh, 4 speeds |
| Dimension and Weight | ||
| Frame Type | : | Back Bone |
| Dimensions (L x W x H) | : | 1,935 mm x 709 mm x 1,090 mm |
| Wheelbase | : | 1,227 mm |
| Seat Height | : | 768 mm |
| Ground Clearance | : | 138 mm |
| Kerb Weight | : | 98 kg |
| Suspension, Wheels & Brake | ||
| Front Suspension Type | : | Telescopic |
| Rear Suspension Type | : | Swing Arm with Double Suspension |
| Front Type | : | 70/90 – 17M/C (38P) (Tubeless) |
| Rear Type | : | 80/90 – 17M/C (50P) (Tubeless) |
| Front Brakes | : | Hydraulic Single Disc |
| Rear Brakes | : | Mechanical Leading Trailing |
