EVP - Oil Less Rotary Vane Type Vacuum Pump– RV Series
Description: Low temperature, low noise, equipped with exhaust muffler.
Product Info
Advantages of RV series oil-less rotary vane vacuum pump
1. Stable performance and easy maintenance.
2. Low temperature, low noise, equipped with exhaust muffler.
3. Environmental protection type, long service life
4. Air cooling, oil-free cleaning.
Application industry:
1. LED lighting industry;
2. Color picture tube line;
3. Packaging and printing industry
4. ACT test
5. Semiconductor industry
6. Automatic adsorption
7. Food and Drug Industry
Specifications:

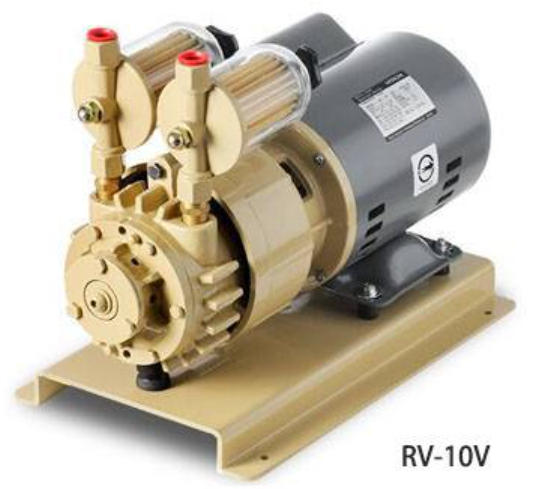

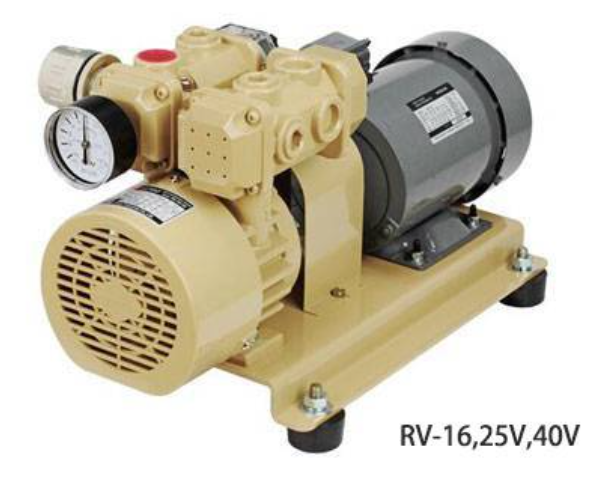

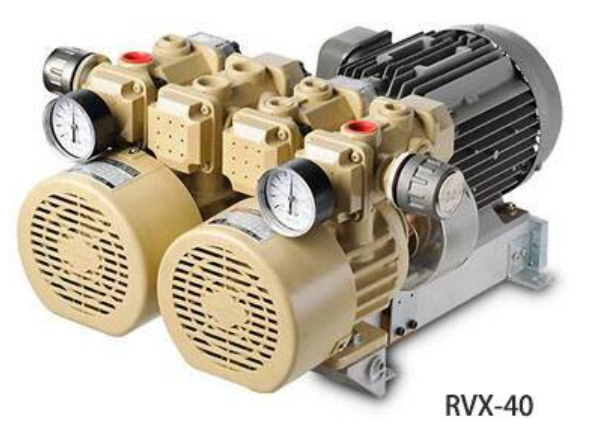

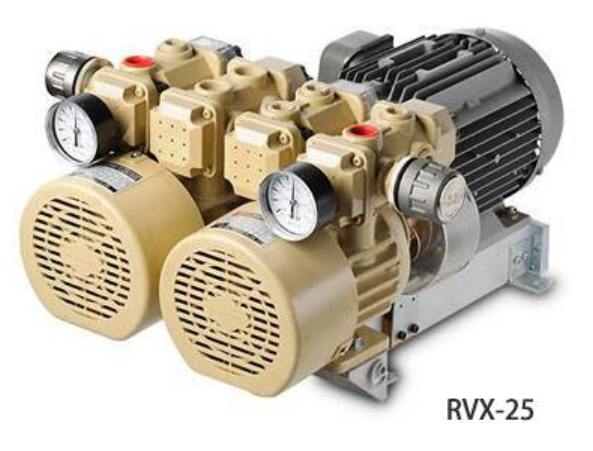

| Model | RV-10V | RV-16V | RV-25V | RV-40V | RVX-25 | RVX-40 | |
| Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. Air Flow | ℓ/min | 100/120 | 230/280 | 400/480 | 570/680 | 400/480 | 570/680 |
| Con. Vacuum | mmHg | -600 | -450 | -450 | -450 | -450 | -450 |
| kPa | -80 | -60 | -60 | -60 | -60 | -60 | |
| Max. Vacuum | mmHg | -720 | -650 | -650 | -650 | – | – |
| kPa | -96.0 | -86.6 | -86.6 | -86.6 | – | – | |
| Motor Pole | Pole | 4 | 4 | 4 | 4 | 4 | 4 |
| Motor Phase | φ | 1 | 3 | 3 | 3 | 3 | 3 |
| Motor Voltage | Volt | 110/220 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
| Motor Output | Watt | 250 | 400 | 750 | 1500 | 1500 | 2200 |
| Noise Level | dB | – | 67/68 | 69/70 | 75/76 | – | – |
| Ambient Temp. | ℃ | 7~40 | 7~40 | 7~40 | 7~40 | 7~40 | 7~40 |
| Net Weight | Kg | 15 | 22 | 26 | 37 | 53 | 69 |
| Dimensions | Size | ||||||
