Description

PHILIPS LAMP DRIVER FLUORESCENT EB-C 114 TL5 220-240V 50/60Hz 913713196214

913713196214 - EB-C 114 TL5 220-240V 50/60Hz

B-Certalume for TL D lamps

Affordable, reliable, high-frequency electronic ballast for TL5 fluorescent lamps, ideal alternative to electromagnetic fluorescent systems ;The cost-saving and reliable EB-C has energy efficiency class A2, and its robust design meets all necessary international standards for safety and EMC. ;The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application.

Product Data

General Information

Lamp type : TL5
Number of lamps : 1-4 piece/unit
Suitable for outdoor use : No
Automatic restart : No

Operating and electrical

Input Voltage : 220 to 240 V
Input Frequency : 50 to 60 Hz
Operating Frequency (Nom) : 40-60 kHz
Power Factor 100% Load (Nom) : 0.97
Mains Voltage Performance (AC) : 220-240V-50-60HZ
Mains Voltage Safety (AC) : -10%-+10%
Earth Leakage Current (Max) : 0.7 mA
Power Losses (Nom) : 3.5 W

Wiring

Connector Type Input Terminals : 250 manual connector [ Suitable for manual wiring and easy release button]
Color Input Terminals : Orange
Color Output Terminals : Grey
Connector Type Output Terminals : 250 manual connector [ Suitable for manual wiring and easy release button]
Cable Length Hot Wiring : 0.75 m
Wire Striplength : 7.5-8.5 mm
Dual Fixture Master/Slave : No [ Master/Slave operation not possible]
Input Terminal Cross Section 0.50-1.50 mm²
Output Terminal Cross Section : 0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Max) : 120 pF

System Characteristics

Rated Ballast-Lamp Power : 14 W
Rated Lamp Power on TL5 : 14 W
System Power on TL5 : 18.3 W
Lamp Power on TL5 : 14.8 W
Power Loss on TL5 : 3.5 W

Temperature

T-Case Lifetime (Nom) : 75 °C
T-Case Lifetime (Nom)-DUP(do not use) : 75 °C

Mechanical and housing

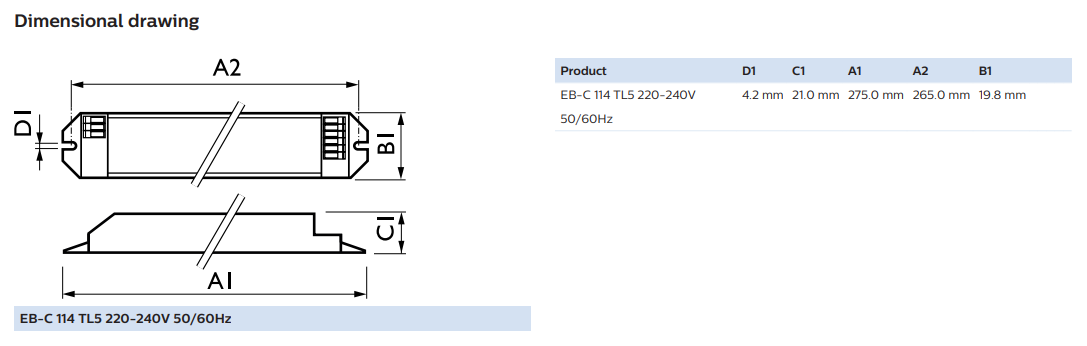

Housing : L275x20x21mm

Approval and application

Energy Efficiency Index : A2
IP Classification : IP 20 [ Ingress Protection 20]
Overvoltage Protection 276Vac : 48 h
EMI 9 kHz ... 30 MHz : EN55015
Vibration Standard : IEC68-2-6 F c
Bumps Standard IEC : 68-2-29 Eb
Humidity Standard : IEC 61347-2-3
Approval Marks : CCC certificate CB Certificate

Product Data

Full product code : 872790088654200
Order product name : EB-C 114 TL5 220-240V 50/60Hz
EAN/UPC - Product : 8711500998903
Order code : 913713196214
Numerator - Quantity Per Pack : 1
Numerator - Packs per outer box 50
Material Nr. (12NC) 913713196214
Net Weight (Piece) : 0.044 kg
