MAG SWB103 TUBULAR SWING BARRIER

SWB103 motorized swing barrier is a type of pedestrian gate typically installed
at the building entrance with an access control reader to restrict unauthorized access
while maintaining a welcoming atmosphere.
Users with luggage or wheelchair can pass through easily.
SWB103 offer the widest opening with smallest form factor among all pedestrian gate.

Description

You are worried that a typical high-speed swing gate smaller width might be uncomfortable
for a wheelchair to pass through.
What if you can save money on this very low traffic handicapped
lane and still wide enough for a wheelchair?

More robust to last longer

Built-in Automatic Rebounce system (ARS) protects door leaf and gearbox
from being easily damaged when someone kicks the door by force as vandalism attempt.
ARS senses and channels out the brute force. SWB103 uses DC brushless motor
to achieve ZERO maintenance thus minimizing your servicing cost.

Safety first

During a power failure, the swing barrier will automatically open up to avoid blocking the passage.
The swing barrier will automatically close back after the power resume.
You can trigger the swing barrier to open permanently until the fire alarm is disabled.
You can add optional SWB_RL railing with a safety IR beam to auto-reverse the gate upon
detecting an obstacle in the passageway to avoid hitting on the user that requires more effort.

Easier to accommodate project schedule

Unforeseen delay is common in most projects.
You are worried about the extra storage/penalty cost if the gate arrives too early or too late.
No more worry, MAG will keep stock for you. Just call us to collect the gate anytime when your site is ready.
All gate is 100% QC tested as per our ISO9001 procedure just before your collection

Specification:

Description	Parameter
Cabinet dimension	168mm (Diameter) x 1050mm (H)
Weight	30kg
Default gate length (transparent acrylic)	450mm
Cabinet material	# 304 stainless steel, 2.0mm
Power supply	AC220 ±10%V/50 ±10%HZ
Motor voltage	DC 24V (brushless motor)
Access device input voltage	Dry contact
Optimal flow rate	20 to 25 people per minute
Gate swing angle	90 deg per side
Gate opening speed	Programmable 0.9 - 2.8 sec
Initialization time	14 sec
Working environment	Indoor only
Working temperature	-25°C - 50°C
Relative humidity	≤ 90%
IP rating	IP 52
Power Consumption	30W

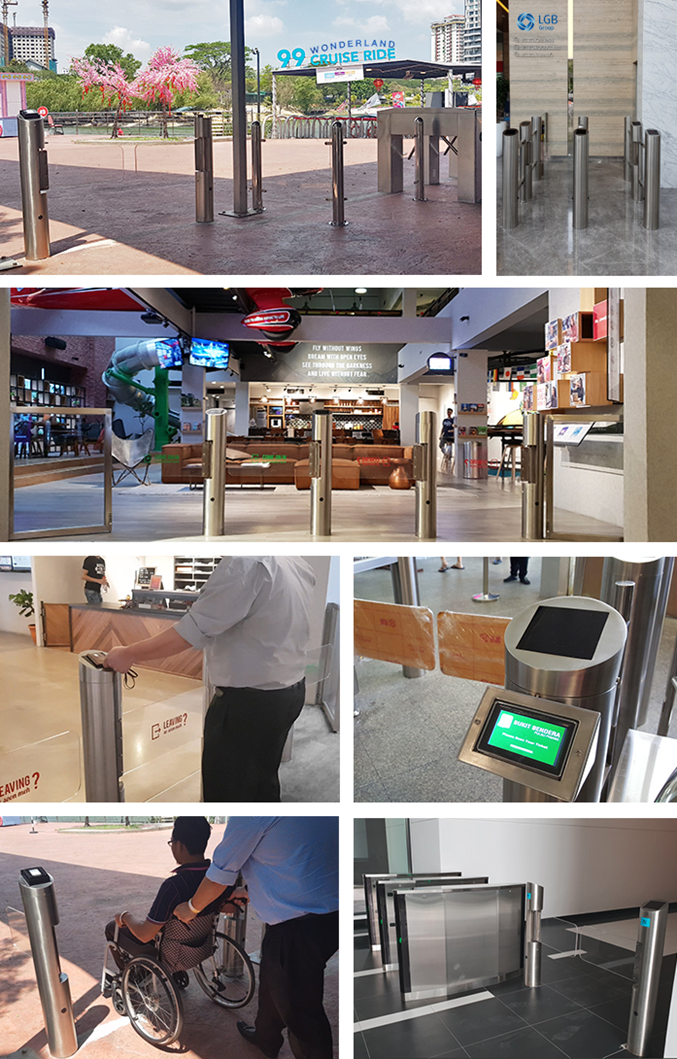

Site implementation:
