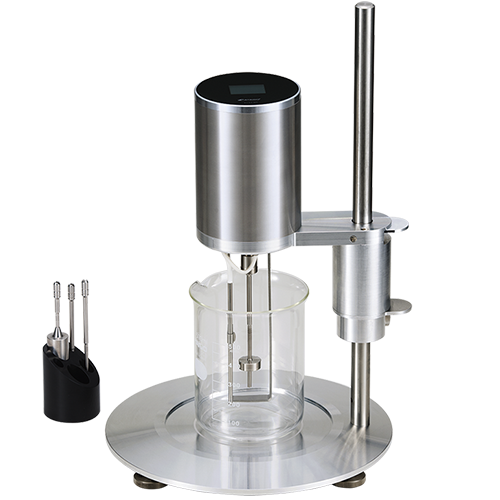

Atago VISCO™ B Digital Viscometer

Liberation from All Previous Hussle
New Type of Digital Viscometer

─ In compliance with ISO1652, ISO2555 ─





6 Points that Surpasses the Existing Digital Viscometer



Easy Operation

ATAGO’s VISCO ™ B offers a simple set up and all operations can be done by one dial button for measurements which allows anyone to easily assemble and use.



One Touch Spindle

Compared to the left-handed screw type that are commonly used with traditional Type-B viscometers, a spindle for VISCO™ B can be installed by simple one touch.



Smooth Height Adjustment

Many of the traditional Type-B viscometers that use left-hand screw requires to turn and twist screws to move it up and down causing tendonitis in some cases. With VISCO™ B, height can be adjusted simply by using a lever.



Digital Level Check

Traditional Type-B analog viscometers require visual check when leveling. VISCO™ B is digital and easily done.



Don’t let reference lines confuse you



Where to place a beaker is important. VISCO™ B has easy to follow guideline that takes away the ambiguity.



Stylish design



The VISCO™ B offers futuristic design that will brighten and bring fun to any measurement sites.



Function and Design





Technical Specifications

Model

VISCO™ B (L)

Cat. No.

6840

Measurement item

Viscosity (mPas/cP)
Temperature (˚C/˚F)
Torque (%)

Range

Viscosity: 1260,000,000mPaS, 1260,000,000cP
L1
 12600,000mPaS, 12600,000cP
L2
 303,000,000mPaS, 303,000,000cP
L3
 4812,000,000mPaS, 4812,000,000cP
L4
 24060,000,000mPaS, 24060,000,000cP
Recommended torque: 10.0 to 100.0%
Temperature: 0.0
100.0˚C, 32.0212.0˚F

Accuracy

Viscosity: ±1% of Maximum Viscosity
Temperature: ±0.2˚C, ±0.4˚F

Power Supply

LR6 / AA alkaline batteries (x4)
AC adapter

Computer Communication

Output: USB - PC

Dimensions & Weight

Main unit: (W) 178 × (D) 86 × (H) 194mm, 1.2kg
Base: φ240 × (H) 398mm, 2.8kg
Stand and Spindle: φ50 × (H) 120mm, 0.2kg



Calibration and Standard Solution

Calibration compares the true value and the value measured from the instrument. Calibration is an important task to ensure the reliability of the measurement results. Calibration is recommended when the measurement environment has changed drastically or when the measurement results are out of the norm. If you are considering routine calibration, we recommend that you decide the frequency based on the circumstance in which the instrument is used and past measurement results. ATAGO's viscometer VISCO™ provides the following standard solutions: The standard solutions are available in various viscosity. It is recommended to calibrate with a standard solution that is close to the viscosity of samples being measured.



VISCO™ standard solution

Part number

Part name

Contents

RE-89013

Viscosity Standard LiquidJS20

100mL

RE-89014

Viscosity Standard LiquidJS50

100mL

RE-89015

Viscosity Standard LiquidJS100

100mL

RE-89016

Viscosity Standard LiquidJS200

100mL

RE-89017

Viscosity Standard LiquidJS500

100mL

RE-89018

Viscosity Standard LiquidJS1000

100mL

RE-89019

Viscosity Standard LiquidJS2000

100mL



Accessories



Type and Measurement Principle of Viscometer

What is a Viscometer?

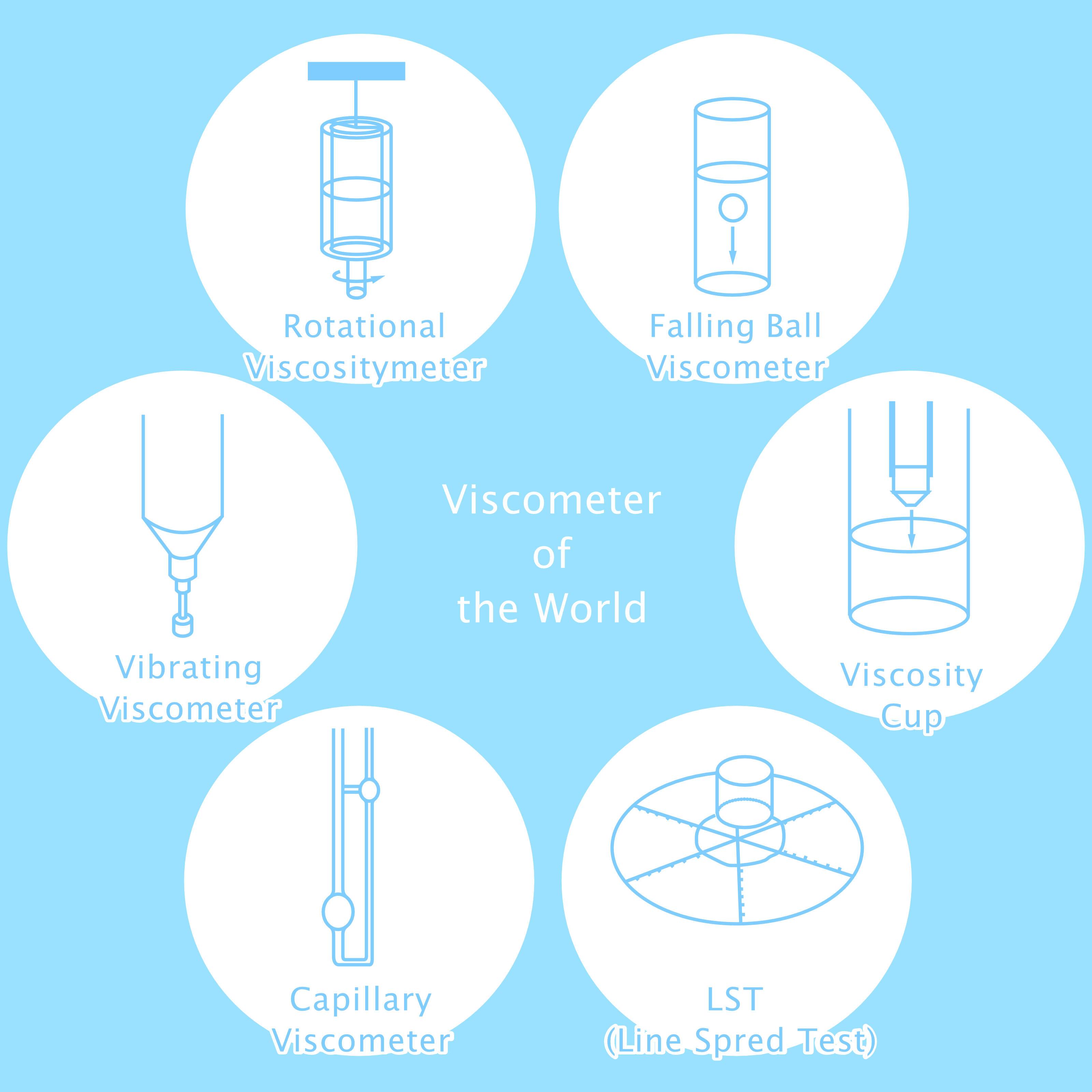

There are different types viscometers that uses various measurement methods. For example, in the Japanese Industrial Standard JIS Z 8803, viscometers are classified as follow:

There are also other measurement methods such as viscosity cups and Line Spread Tests (LST).

ATAGO's viscosity meter VISCO™ is measured on a principle called rotational viscosity.



Principle of Rotational Viscometer

Rotational viscometer is one of the most common viscometers used. The structure is simple, easy to use, and the measurement range is wide and can be measured with high accuracy. When a cylindrical spindle is placed in the sample and rotated at a constant speed, the viscosity is determined by measuring the torque (shear stress) acting on the cylindrical surface. There are different types of spindles: coaxial double cylinder, single cylindrical, and cone and plate. The cone plate type can determine the flow characteristics of non-Newtonian fluids by changing the rotational speed.
