L Shape Retaining Wall: Pinakamahusay na Pilihan sa Penang, Malaysia, Simpang Ampat PINTAS TRADING SDN BHD

L Shape Retaining Wall

Kategorya: Precast

Magagamit

May 36 mga bersyon na magagamit

Retaining Wall Toe

With ToeWithout Toe

Size [(Height (mm) x Width / Base (mm) x Length (Meter)]

900 x 1650 x 1m1200 x 1850 x 1m1500 x 2100 x 1m1800 x 2300 x 1m2100 x 2500 x 1m2400 x 2700 x 1m2700 x 2900 x 1m3000 x 3100 x 1m3300 x 3300 x 1m3600 x 3500 x 1m915 x 1050 x 1m1220 x 1250 x 1m1520 x 1420 x 1m1830 x 1650 x 1m2130 x 1800 x 1m2440 x 2000 x 1m2740 x 2200 x 1m3050 x 2450 x 1m3350 x 2550 x 1m3660 x 2900 x 1m900 x 850 x 1m900 x 1000 x 1m900 x 1350 x 1m1200 x 1050 x 1m1200 x 1250 x 1m1200 x 1600 x 1m1500 x 1300 x 1m1500 x 1450 x 1m1500 x 1800 x 1m1800 x 2000 x 1m2100 x 2200 x 1m2400 x 2400 x 1m2700 x 2600 x 1m3000 x 2800 x 1m3300 x 3000 x 1m3600 x 3200 x 1m

Deskripsyon

*As sizes can differ between brands, if the size you need isn't available in the variants, please WhatsApp us with your specific size request.*

Applications :

· Open drains
· Retaining wall
· As permanent or temporary storage / fencing walls

Benefits :

· Easily assemble or dismantle
· Simple application and maintenance-free products
· Assembly or dismantling can be attended to by unskilled labour
· Can be off loaded from transport and erected in one operation

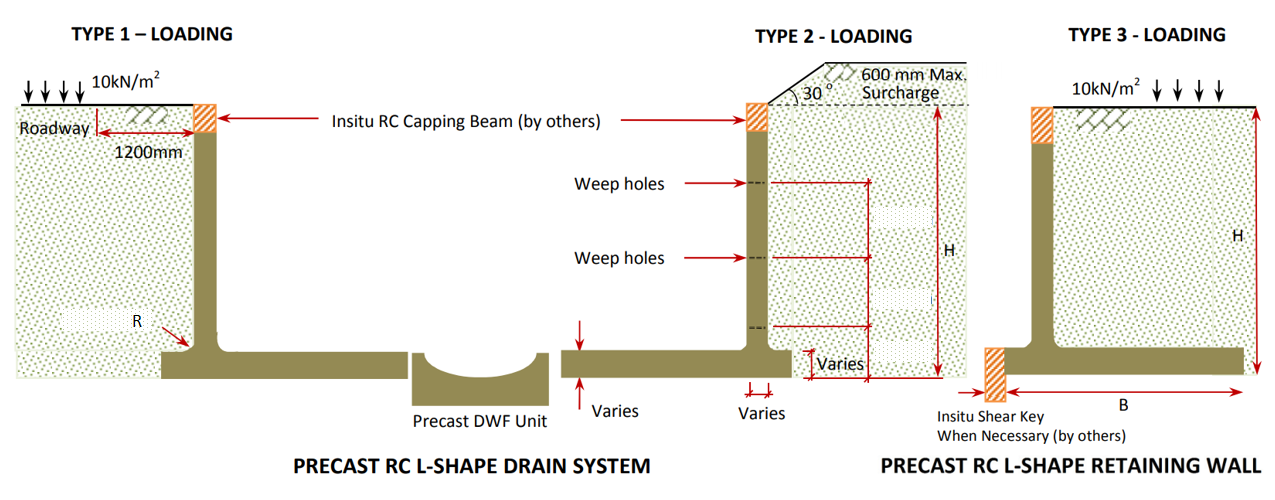

Types :

Open Drain – Short leg backfill with granular soil

Type 1: Level backfill with 10 kN/m2 of live load surcharge

Type 2: Non-level backfill with max of 600mm height from top of wall and slope gradient of 30 degree

Retaining Wall – Long leg backfill with granular soil

Type 3: Level backfill or non-level backfill similar to above type 1 and type 2 loading condition

* Starter Bars shall only be provided upon request if required for the construction of insitu capping beam.

Features :

Precast design is in accordance with BS8110: 1997
Concrete Grade/ Strength : 40N/mm2
Standard length of L-shape Unit is 1000mm
Non-standard sizes with different loading conditions can be specially designed
