Product feature
1. Six kinds of bore size three kinds of type & seven kinds of finger type.
2. Integrated design of linear guide roller high rigidity & high precision.
3. A positioning pin is attached to the bottom of the linear guide rail which can prevent the deviation of the positioning rail & body.
4. The squareness magnetic switch slots convenient to install DS1G/CS1G type inducting switch. The roundness magnetic switch slots convenient to install DS1H type inducting switch. Can be mounted from three directions: With mounting holes on the side & tail.
5. With positioning hole: The positioning hole can improve the precision & the consistency of repeated dismounting & positioning.
Specification
| Bore size(mm) | 10 | 16 | 20 | 25 | 32 | 40 |
| Port size | M3 X 0.5 | M5 X 0.8 | M5 X 0.8 | M5 X 0.8 | M5 X 0.8 | M5 X 0.8 |

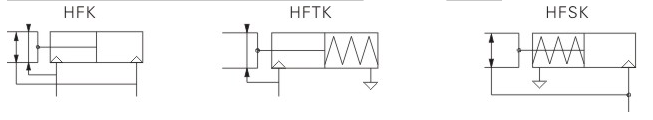

Symbol
