Sensor free available for 32 IO points controls.
Integration of ball circulation with block system to perform minor inertial motion.
Compact profile made from Aluminum frame with riveted rails.
|
Stepper Motor |
|||
|

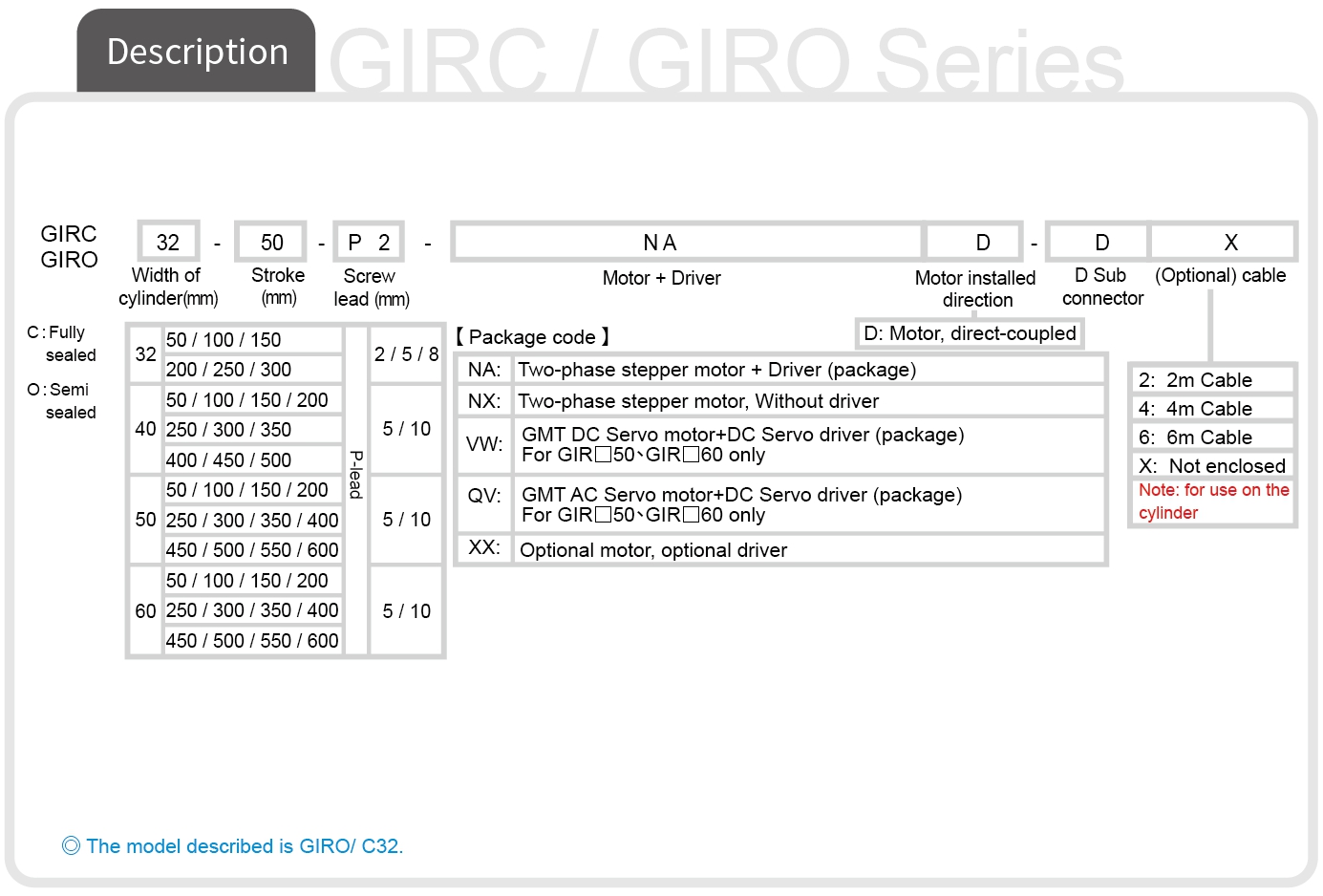

Model No. |
GIRO40 |
||
|
Mechanical Spec. |
Table Size (mm) |
40 |
|
|
Travel Stroke (mm) |
50 ~ 500 (Per 50mm) |
||
|
Drive Type |
Ball Screw Ø10 |
||
|
Lead (mm) |
5 |
10 |
|
|
Rail |
Circular Linear Ball Guiding |
||
|
Stage Material |
Aluminum Alloy / Black Anodized |
||
|
Wiring Method |
N：Horizontal Type；V：Vertical Type |
||
|
Precision Spec. |
Max. Speed (mm/s) |
150 |
300 |
|
Repeatability Precision (mm) |
± 0.005 |
||
|
Max. Thrust Force (N) |
66 |
30 |
|
|
Horizontal Load (Kgf) |
8.8 |
6.8 |
|
|
Vertical Load (Kgf) |
3.8 |
1 |
|
|
Electrical Spec. |

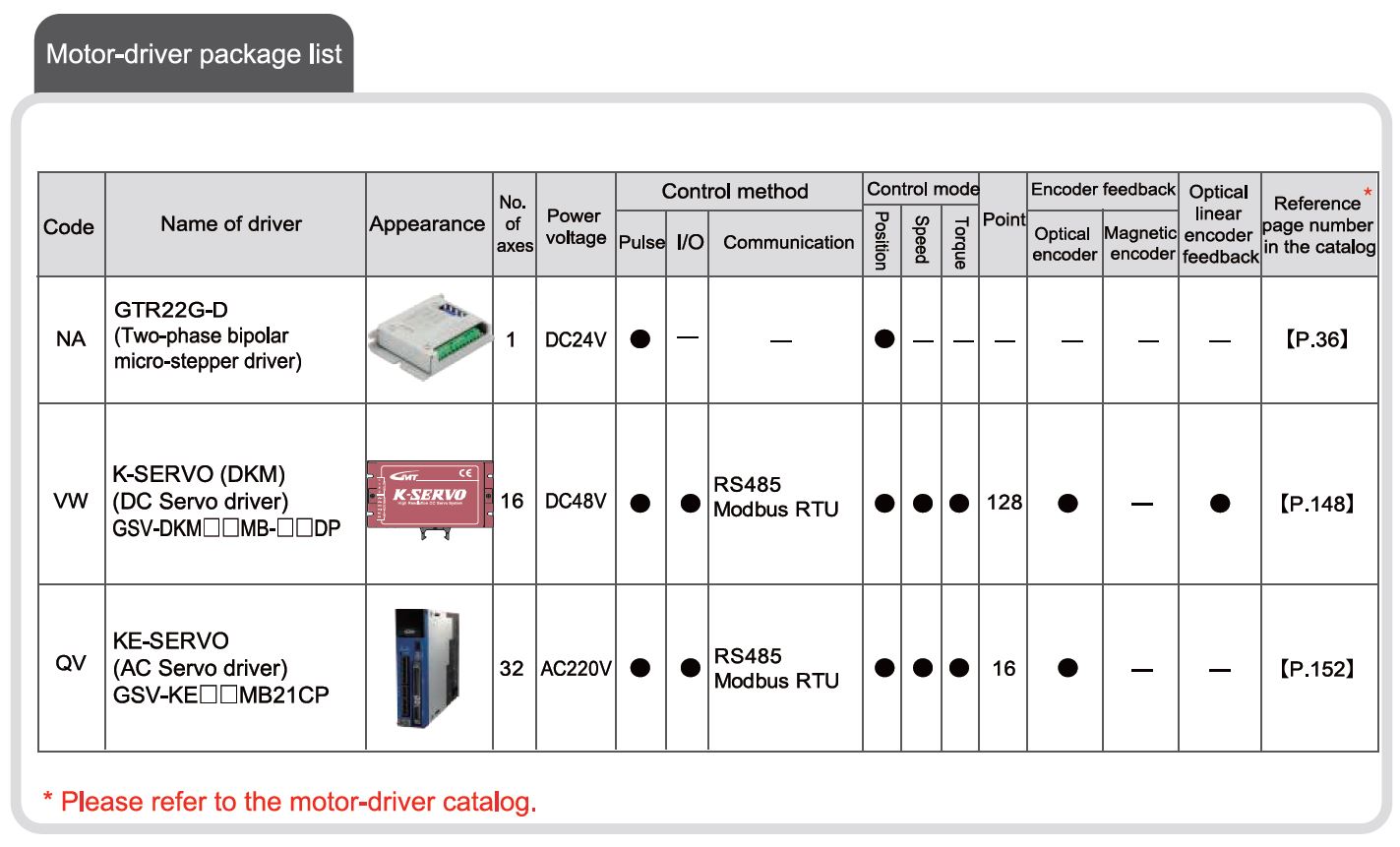

Open-loop Driver |
&35，GTR22G-D |
|
|
Stage Side Connector |
15-Pin male connector D-SUB |
||
|
Controller Side Connector |
15-Pin female connector D-SUB |
||
