TwisTorr 305 FS Turbo Pump



The TwisTorr 305 FS turbomolecular pump features an entirely new design and advanced connectivity options such as Bluetooth. This 300 L/s connected turbo pump can be driven wirelessly using the Vacuum Link app. The TwisTorr 305 FS turbo pump is ideal for academic research and industrial applications where compression ratio is an important factor. The pump’s low noise and vibration features make it a perfect solution for sensitive instruments, like electron microscopes and surface analysis.

Order Information

9699344 Vibration Isolator ISO 100
9699302 Inlet Screen CFF 6”
X3500-68000 Inlet screen ISO 100
9699347 Metric Water Kit 4 x 6 mm
9699304 Inlet Screen CFF 8”
X3500-68001 Inlet Screen ISO 160
X3513-68000 KF25 Foreline flange
9699345 Vibration Isolator ISO 160
9699334 Vibration Isolator CFF 6”
9699337 Water Cooling Kit for Turbopump
9699232 Purge valve 10 SCCM ¼ Swagelock - ¼ Swagelock
9699239 Purge valve 10 SCCM NW16KF - M12
9699241 Purge valve 20 SCCM NW16KF – M12
9699240 Purge valve 10 SCCM ¼ Swagelock - M12
9699242 Purge valve 20 SCCM ¼ Swagelock - M12
9699236 Purge valve 20 SCCM ¼ Swagelock - ¼ Swagelock
9699335 Vibration Isolator CFF 8”
X3500-68011 Air cooling kit for TwisTorr 305 remote controller
9699845 Vent Valve N.O. 1.2 mm Orifice
9699846 Vent Valve N.C. 1.2 mm Orifice
9699844 VENT VALVE N.O. 0,5 MM ORIFICE
9699940 5 m Small TMP Air Cooling Kit Extension Cable
X3513-64008 TwisTorr 305 FS ISO100 air cooling
X3513-64009 TwisTorr 305 FS CFF6, air cooling
X3513-64010 TwisTorr 305 FS ISO160 air cooling
X3513-64011 TwisTorr 305 FS CFF8, air cooling
X3513-64012 TwisTorr 305 FS ISO100 wat cooling
X3513-64013 TwisTorr 305 FS CFF6, wat cooling
X3513-64014 TwisTorr 305 FS ISO160 wat cooling
X3513-64015 TwisTorr 305 FS CFF8, wat cooling


Features


Specifications


Technical Specifications
Pumping speed ISO 100 K / CFF 6”/ ISO 160 K / CFF 8”
N2
He
H2
Ar
250 L/s
255 L/s
220 L/s
250 L/s
Max gas flow rate
N2 250 SCCM
Compression ratio
N2
He
H2
Ar
> 1 x 1011
> 1 x 108
1.5 x 106
> 1 x 1011
Max foreline pressure tolerance N2 12 mbar
Base pressure with recommended forepump  <1 x 10 -10 mbar
(<1 x 10 -10 Torr)
Inlet flange ISO 100 K, CFF 6”, ISO 160 K, CFF 8”
Foreline flange KF16 NW (KF25 - optional)
Rotational speed 60000 rpm (1010 Hz driving frequency)
Start-up time < 3 minutes (longer when soft start is used)
Recommended forepump Dry pumps: IDP-3 (no gas flow), IDP-7, IDP-10,
Mechanical: DS102, DS302
Operating position Any
Oper. ambient temperature +5 °C to +35 °C
Bakeout temperature Max 80 °C at inlet flange
Lubricant Permanent lubrication
Cooling requirements
Air cooling Natural convection (only with no gas load)
Forced air (5- 35 °C ambient temperature)
Water cooling Minimum flow: 50 l/h (0.22 GPM)
Temperature: +15 °C to +30 °C
Max pressure: 5 bar (75 psi)
Noise pressure level
(at 1m at full speed)
41 dB(A)
Storage temp. -40°C to +70°C
Weight kg (lbs)
TwisTorr 305 FS
ISO 100 K    5,84 kg (12,8)
CFF 6’’         8,16 kg (17,9)
ISO 160 K     6,28 kg (13,8)
CFF 8’’        10.43 kg (22.9)
Compliance with: EN 61010-1
EN 61326-1
EN 1012-2
EN 12100
EN 50581
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive
2014/30/EU Directive 2011/65/EU


Literature

TwisTorr 305 Turbo Pump Brochure

Learn about the TwisTorr 305-IC turbo pump with integrated control unit, TwisTorr 305 FS and Vacuum Link App - innovation in vacuum control and data sharing.

TwisTorr 305 FS and 305-IC Turbo Pumps Data Sheet

Technical specifications and ordering information for the TwisTorr 305 FS and TwisTorr 305-IC turbomolecular pumps.

Software

A-PLUS software release 2.0.2

A-PLUS software (formerly T-plus) - release 2.0.2 - communication, control and monitoring software designed to leverage the intelligence of Agilent vacuum products. 2 versions: 32-bit and 64-bit versions of Windows.

Related Products
Example category image description

Vacuum Link App

The powerful Vacuum Link app offers wireless remote pump control, making it easy to monitor your system. This turbo pump connectivity and monitoring ...

Category: Vacuum and Leak Detection Software
Example category image description

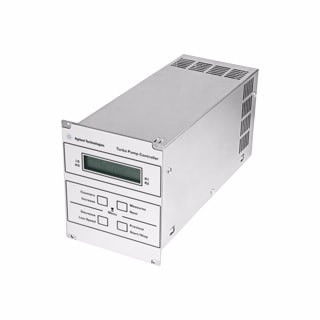

TwisTorr 305 FS Remote Controller

The remote control unit for the TwisTorr 305 FS turbo pump is able to drive the pump in real time. This turbo pump external ...

Category: High Vacuum Pumps

Support
FAQs
User Manuals

TwisTorr 305 FS user manual

Instructions for use and technical specifications for the TwisTorr 305 FS

TwisTorr 305 FS Quick Reference Guide

TwisTorr 305 FS Quick Reference Guide





TwisTorr 305 FS Turbo Pump     TwisTorr 305 FS Turbo Pump
TwisTorr 305 FS ISO 100K Turbo Pump Outline Drawing        TwisTorr 305 FS CFF6 Turbo Pump Outline Drawing


TwisTorr 305 FS Turbo Pump TwisTorr 305 FS Turbo Pump
TwisTorr 305 FS CFF 8 Turbo Pump Outline Drawing      TwisTorr 305 FS ISO 160K Turbo Pump Outline Drawing


TwisTorr 305 FS Turbo Pump  TwisTorr 305 FS Turbo Pump
TwisTorr 305 FS Compression Ratio                                               TwisTorr 305 FS Pumping Speed
