AGILENT / VARIAN TV 81-M TURBO PUMP
(These models already Obsoleted or Discontinue. Pls email us at [email protected] for replacement turbo pump model)

Order Information

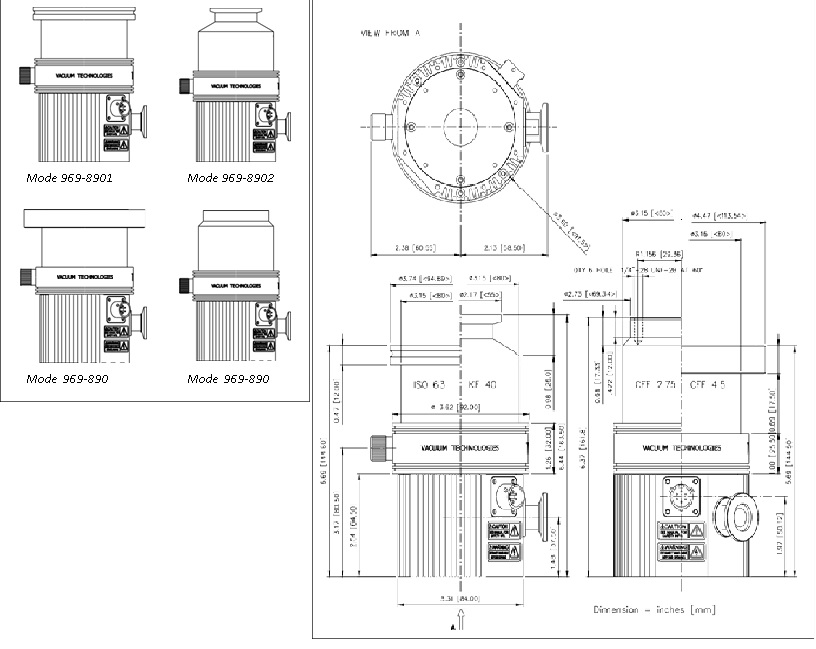

Part Number : 969-8901, 969-8902, 969-8903, 969-8904

Part number	Description
EX9698988	EXCHANGE TURBO-V 81-AG CONTROLLER BASE
EX9698989	EXCHANGE TURBO-V 81-AG CTRL RS 232/485
EX9698995	EXCHANGE V81 NAVIGATOR CONTROLLER 24V
EX9698996	EXCHANGE V81 NAVIGATOR CONTROL. 120/220V
EX9699538	EXCHANGE TURBO-V 81 PCB CONTROLLER 24VDC
9698988	TURBO-V81 AG 1/4 RACK CTRL 100-240V
9698989	CNT81-AG WITH RS232/485 OPTN
9698990	V81 AG 1/4 RACK CTRL 100-240V + PROFIBUS
9698995	TURBO-V81 NAVIGATOR CONTROLLER 24V
9698996	TURBO-V81 NAVIGATOR CONTROLLER 120/220V
9699538	TURBO-V81 24 PCB CONTROLLER
9698905	TURBO-V 81-T PUMP ISO 63
9698906	TURBO-V 81-T PUMP KF 40
9698907	TURBO-V 81-T PUMP CFF 4 1/2
9698908	Turbo-V 81-T Pump CFF 2.75 in
9699164	Controller Adapter Kit TV 70 - TV 81
9699801	Heater Band for Turbo-V70/V81, 220V
9699802	Heater Band for Turbo-V70/V81, 120V

ACCESSORIES AND SPARE PARTS

DESCRIPTION	PART NUMBER
Inlet screen, DN 40	969-9309
Inlet screen, DN 63	969-9300
Heater band 220 V	969-9801
Heater band 120 V	969-9802
Metallic water cooling kit	969-9823
Plastic water cooling kit	969-9824
Air cooling kit (0.5 m cable)	969-9290
Air cooling kit extension cable (5 m)	969-9940
Pump extension cable	969-9942
Vibration damper DN 63	969-9375
Vibration damper CFF 4.5''	969-9376
Mechanical pump DS 102	949-9315
Mechanical pump DS 42	949-9309
Dry scroll SH 100	SH01001 UNIV
Dry scroll SH 110	SH01101 UNIV
Rack controller 81-AG base	969-8988
Rack controller 81-AG RS232/485	969-8989
Rack controller 81-AG Profibus	969-8990
PCB 24 V	969-9538
Turbo-V 81-AG Navigator Controller 24 Vdc	969-8995
Turbo-V 81-AG Navigator Controller 100-240 Vac	969-8996

VENT VALVE MODEL SELECTION TABLE

CONTROL UNIT MODEL	VENT VALVE PART NUMBER
Turbo-V 81-AG Navigator Controller (cable 0.7 m) (any version)	N.O. 969-9844
Turbo-V 81-AG Rack Controller (cable 0.7 m) (any version)	N.O. 969-9844
Controller TV70 Navigator (P/N 969-8970, 969-8971)	969-9834
Turbo-V 70 Rack controller (P/N 969-9405, 969-9505)	969-9843

TECHNICAL SPECIFICATION

Pumping speed	With ISO 63 or CFF 4.5'' N₂: 77 l/s He: 65 l/s H₂: 50 l/s	With KF 40 NW or CFF 2.75'' N₂: 50 l/s He: 56 l/s H₂: 46 l/s
Compression ratio	N₂: 3 x 10⁸ He: 8 x 10⁴ H₂: 7 x 10³
Base pressure * (with recommended forepump)	mechanical: 5 x 10^-10 mbar (3.8 x 10^-10 Torr) diaphragm: 5 x 10^-9 mbar (3.8 x 10^-9 Torr)
Inlet flange	ISO 63 KF 40 NW CFF 4.5'' O.D. CFF 2.75'' O.D.
Foreline flange	KF16 NW
Rotational speed	1350 Hz (max)
Start-up time	< 60 seconds
Cooling requirements	Natural air convection Forced air or water optional
Recommended forepump	mechanical: Varian DS 42 DS 102 dry pump: Varian SH 100
Operating position	any
Coolant water	flow: 10 l/h (0.05 GPM) temperature: + 15 °C to + 35 °C pressure: 2 to 4 bar (30 to 60 Psi)
Operating ambient temperature with natural air convec- tion	+5 °C to +25 °C
Operating ambient temperature with forced air cooling or water	+5 °C to +35 °C
Bakeout temperature	120° C at inlet flange max. (CF flange) 80° C at inlet flange max. (ISO flange)
Vibration level	< 0.01 mm at inlet flange

(displacement)
Noise level	£ 45 dB (A) at 1 meter
Compliance with:	UNI EN 292-1 UNI EN 292-2 EN-CENELEC 55011 IEC 1000-4-2 (ex 801-2) IEC 1000-4-3 (ex 801-3) IEC 1000-4-4 (ex 801-4) EN 61010-1 (IEC 1010-1) EN 1012-2
Storage temperature	-20° C to +70° C
Input	60 Vac, three phase, 1350 Hz (max) 50 W max
Lubricant	permanent lubrication
Installation category	II
Pollution degree	2
Storage temperature	- 20° C to + 70° C
Weight kg (lbs):	ISO 63: 1.99 (4.39) KF 40: 1.96 (4.32) CFF 4.5'': 2.96 (6.53) CFF 2.75'': 2.77 (6.11)

* (According to standard DIN 28 28, the base pressure is that measured in a ea -free test dome, 8 hours after the comp e- tion of test dome ba e-out, with a Turbopump fitted with a Con- F at f ange and using the recommended pre-vacuum pump)
