LM4

Kategori: Proximity Sensor Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di winstonelectric.com.my

Penerangan

Main features:

compact volume
High precision of repeaed location
Diversified exterior structures
Good performance of anti-interference
Many output forms
High on-off frequency
Wide voltage range
Dust proof,vibration proof,water proof and oil proof
with short-circuit protection and inverted connecting protection
Long service life

Technical data

Output voltagc dropDC/AC NPN PNP<3V, Two wire<3.9V, AC<10V, DC<3V
Consumption current NPN PNP DC 12V 8mA, 24V 15mA, AC<10mA
Standard detected object 6X6X1(A3 iron)
Repeated precision 0.01
DC/AC 500Hz
Working environment temperature -25℃~+70℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67

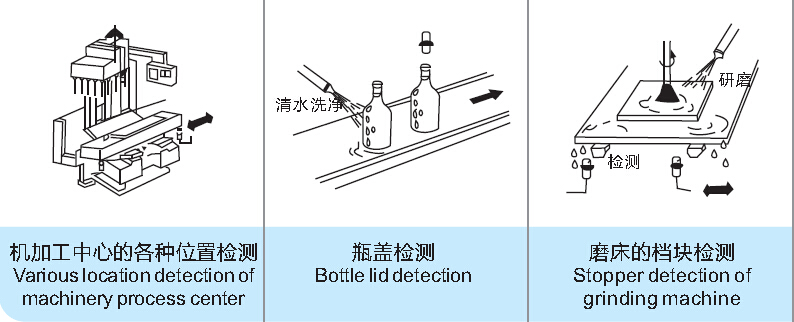

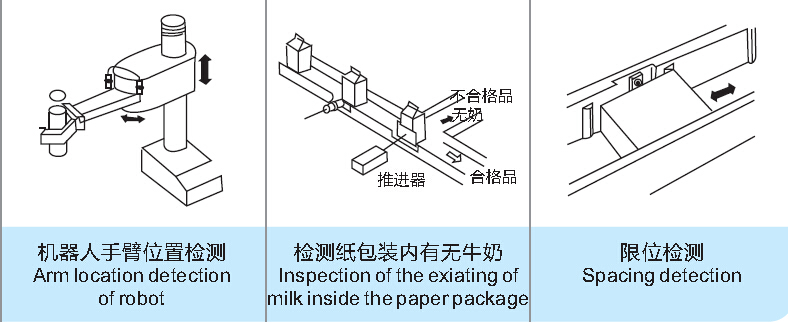

Application
