16 Amp DC switching capacity
Low hysteresis
Wide adjustment range
DIN rail mountable

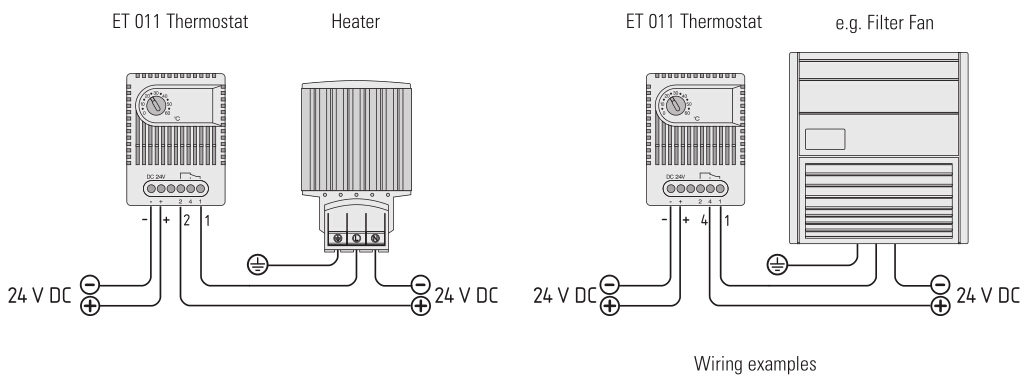

The ET 011 is an electronic thermostat for regulating high performance DC 24 V equipment. Heating or cooling equipment, as well as signal devices, can be switched via the SPDT (changeover) contact.

A relatively small hysteresis sets the ET 011 Thermostat apart from less accurate mechanical
thermostats.

Switching difference	approx. 5.4 °F ± 1.8 °F tolerance (3 K ± 1 K)
Sensor element	PTC
Contact type	SPDT / change-over contact
Service life	> 100,000 cycles
Max. switching capacity	16 A @ DC 28 V
Connection	5-pole terminal, clamping torque 0.5 Nm max.:
	solid wire - AWG 14 max. (2.5 mm²)
	stranded wire (w/ wire end ferrule) - AWG 16 max. (1.5 mm²)
Housing	plastic, UL 94V-0, light grey
Mounting	clip for 35 mm DIN rail, EN 60715
Mounting position	vertical
Operating temperature	+32 to +140 °F (0 to +60 °C)
Storage temperature	-49 to +176 °F (-45 to +80 °C)

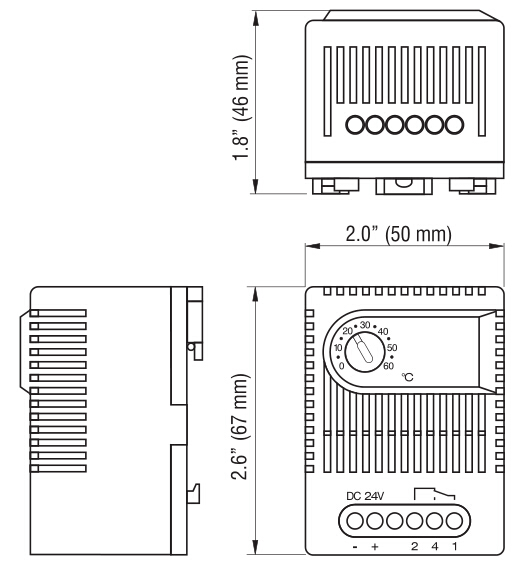

Dimensions	2.6 x 2.0 x 1.8” (67 x 50 x 46 mm)
Weight	approx. 2.8 oz. (80 g)
Protection type	IP20
