Penerangan

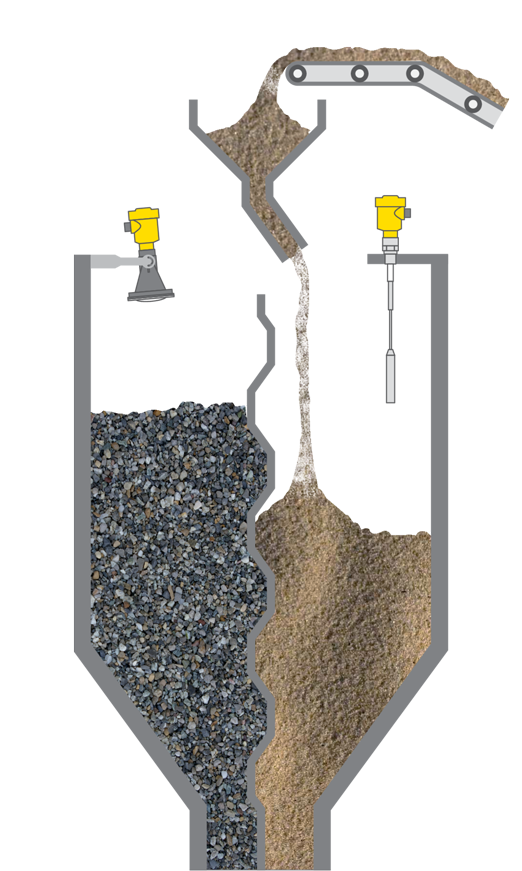

Mixing tower

Level measurement and point level detection in mixing towers

Level measurement and point level detection in mixing towers


Process data

Measuring task
Level measurement and point level detection
Measuring point
Silo
Measuring range up to
25 m
Medium
Sand, gravel and grit
Process temperature
-40 … +50 °C
Process pressure
0 … 0 bar
Special challenges
Abrasion, dust and large struts

Application

Materials such as concrete and mortar are needed in widely different compositions depending on the application. The various raw materials are stored in segmented towers, which then blend cement, lime and other aggregates according to specific requirements. In each individual segment, reliable level measurement and point level detection ensure the constant availability of the raw materials and cost-effective operation of the plant.

Your benefit

Reliable
Reliable measurement in all types of media
Cost effective
Optimal material storage
User friendly
Maintenance-free operation


Recommended products

VEGAPULS 69

Radar sensor for non-contact level measurement in mixing towers

  • Easy alignment of the measuring instrument thanks to integrated swivel mount and app for smartphones
  • Reliable measurement in spite of dust, noise and internal structures
  • Wear and maintenance-free, ensures continuous operation of the plant
Measuring range - Distance
120 m
Process temperature
-40 ... 200 °C
Process pressure
-1 ... 20 bar


VEGACAP 65

Point level detection with capacitive probe in mixing towers

  • Reliable measurement despite buildup and dust
  • Long service life thanks to robust construction
  • Simple installation and setup
Process temperature
-50 ... 200 °C
Process pressure
-1 ... 64 bar
Version
Cable ø 6 mm with screening tube without weight
Cable ø 6 mm with screening tube and gravity weight
Cable ø 6 mm with gravity weight
Cable ø 8 mm with abrasion protection without weight
Cable ø 8 mm with abrasion protection and gravity weight
Cable ø 8 mm with gravity weight
PA cable ø 12 mm with screening tube and gravity weight
