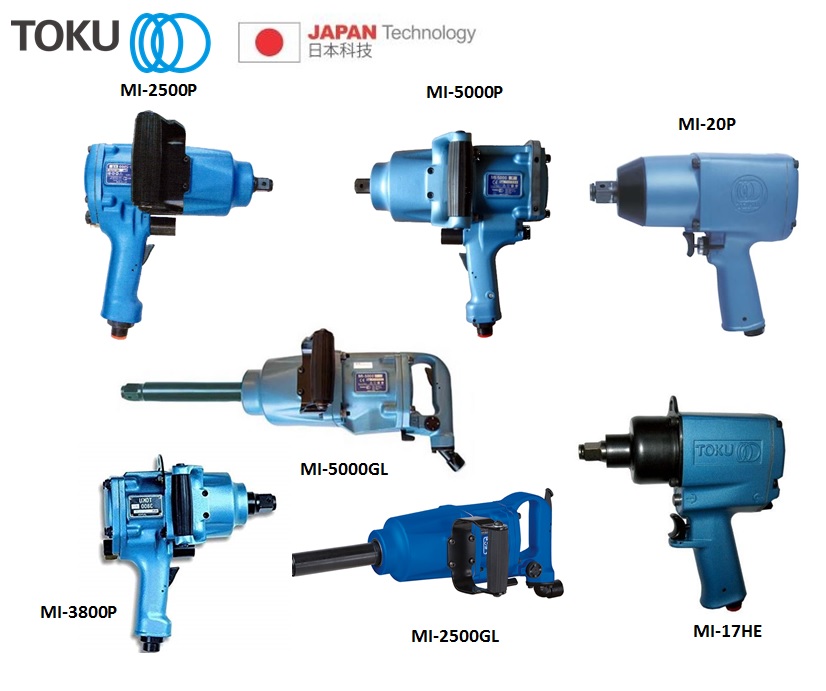

TOKU MI-3800P AIR IMPACT WRENCH 1" 50-150KG.M PIN-LESS CLUTCH

Penerangan

Model: MI-3800P (Short Shank)
IMPACT WRENCH  MI-3800P is used to tighten and loosen nut quickly. The Impact lock is designed to produce large torques and the K Impact is widely used in the automotive and maintenance industries.
The impact power is directly conveyed to anvil by unifying the hammer and the hammer pin.
The pin less clutch mechanism is Toku's development.
Specification

• Model   MI-3800P
• Drive  (in)            1
• Bolt size (mm)   38
• Torque range (kg’m)       50 - 150
• Max Torque (kg’m)          200
• Net Weight (kg) 9.5
• Overall Length (mm)       276
• Free Speed (rpm)             4700
• Maximum air consumption (m3/min)      1.6
• Air inlet (PT)       1/2
• Hose size (in)     1/2
• Features
• Pin-less clutch mechanism
• 2-step throttle for precise control
• Elastomer side handle grip
• 360° free rotating exhaust
• 4-Position regulator


Features:
- Pin-less clutch mechanism
- 2-step throttle for precise control
- Elastomer side handle grip
- 360° free rotating exhaust
- 4-Position regulator

Specifications:
- Square Drive (inches)  1
- Bolt Size (mm) 38
- Torque Range (kg.m)    50 - 150
- Maximum Torque (kg.m)            200
- Net Weight (kg)             9.5
- Overall Length (mm)    276
- Free Speed (rpm)          4700
- Avg. Air Consumption 35 cfm 1.0m3/min
- Air Inlet (pt)     1/2
- Hose Size (inches) 1/2

Shank Size           N/A
- Air pressure required : 6 kg/cm2 = 6 bar
- Torque : 1.0 kg.m = 9.807Nm = 7.233 ft.lb
- All impact wrench contains forward and reverse actions.
