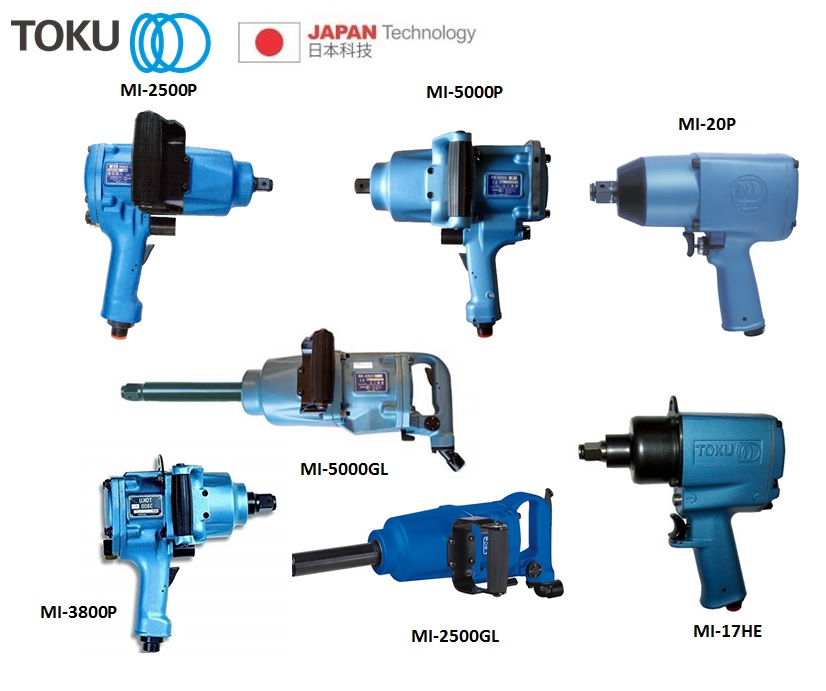

IMPACT WRENCH MI-5000P is used to tighten and loosen nut quickly. The Impact lock is designed to produce large torques and the Impact is widely used in the automotive and maintenance industries.
The impact power is directly conveyed to anvil by unifying the hammer and the hammer pin.
Model: MI-5000PL (230mm Long Shank)
Features
- Pin-less clutch mechanism
- 2-step throttle for precise control
- Elastomer side handle grip
- 360° free rotating exhaust
- 4-position regulator
Specifications
- Square Drive (inches) 1
- Bolt Size (mm) 50
- Torque Range (kg.m) 50 - 220
- Maximum Torque (kg.m) 270
- Net Weight (kg) 14.3
- Overall Length (mm) 420
- Free Speed (rpm) 3700
- Avg. Air Consumption 35 cfm 1.0m3/min
- Air Inlet (pt) 1/2
- Hose Size (inches) 1/2
- Shank Size 230 mm
- Air pressure required : 6 kg/cm2 = 6 bar
- Torque : 1.0 kg.m = 9.807Nm = 7.233 ft.lb
- All impact wrench contains forward and reverse actions
