IMPACT WRENCH MI-2500P is used to tighten and loosen nut quickly. The Impact lock is designed to produce large torques and the K Impact is widely used in the automotive and maintenance industries.
The impact power is directly conveyed to anvil by unifying the hammer and the hammer pin.

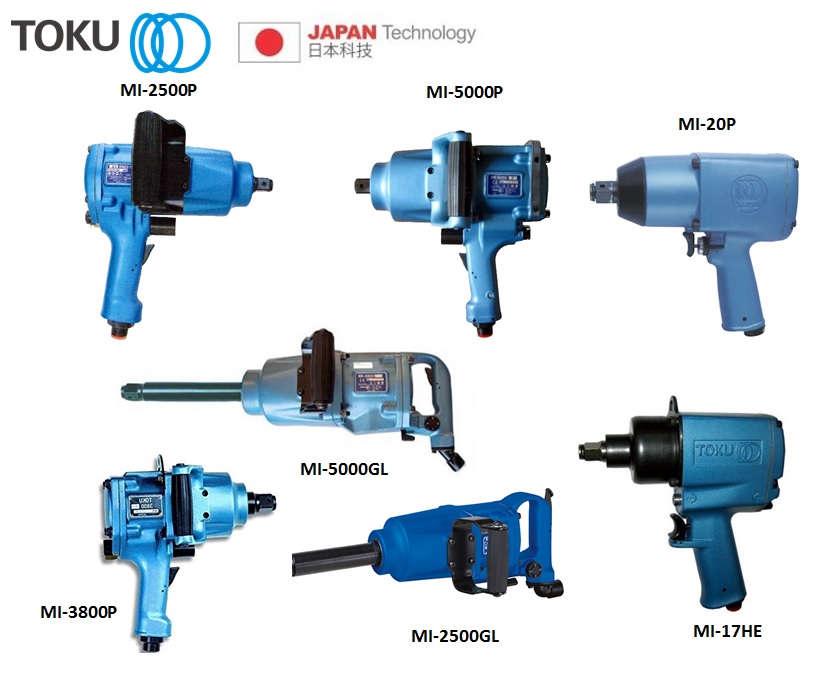

Model: MI-2500P (Short Shank)
Features
- Pin-less clutch mechanism
- 2-step throttle for precise control
- Elastomer side handle grip
- 360° free rotating exhaust
- 4-Position regulator
Specifications
- Square Drive (inches) 3/4
- Bolt Size (mm) 25
- Torque Range (kg.m) 50 - 110
- Maximum Torque (kg.m) 130
- Net Weight (kg) 8.2
- Overall Length (mm) 265
- Free Speed (rpm) 5300
- Avg. Air Consumption 24 cfm 0.7 m3/min
- Air Inlet (pt) 3/8
- Hose Size (inches) 1/2
- Shank Size N/A
- Air pressure required : 6 kg/cm2 = 6 bar
- Torque : 1.0 kg.m = 9.807Nm = 7.233 ft.lb
- All impact wrench contains forward and reverse actions
