TIME2510 Coating Thickness Gauge: Pilihan Utama di Kuala Lumpur (KL), Malaysia, Selangor, PJ HHM Machinery & Instruments Sdn Bhd

Penerangan

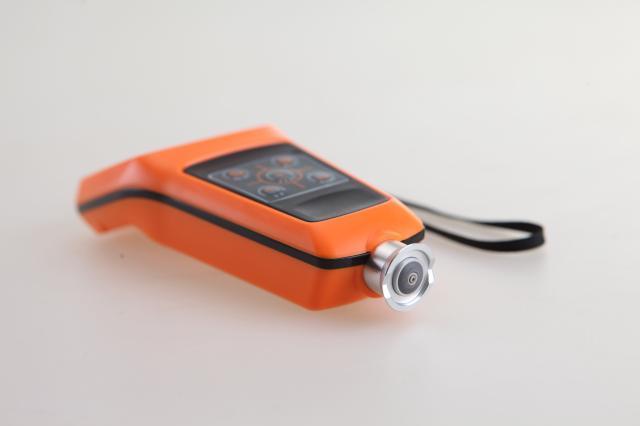

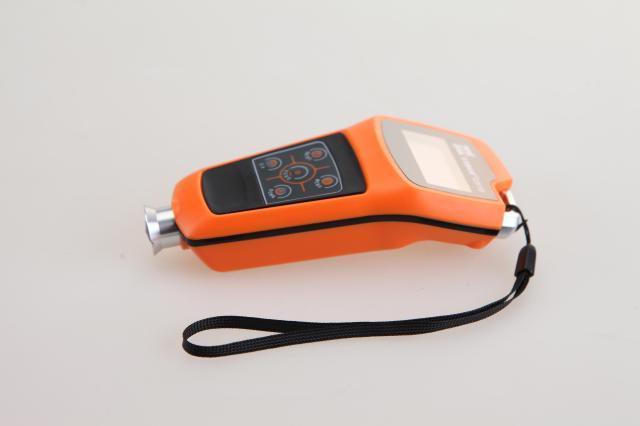

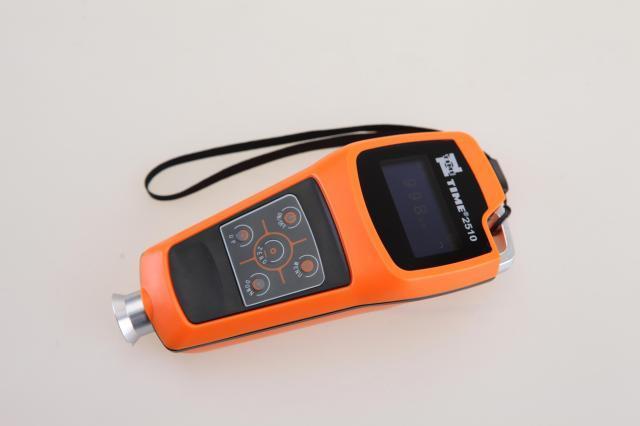

TIME2510 Coating Thickness Gauge – Ferrous & Non-Ferrous Measurement

The TIME2510 Digital Coating Thickness Gauge offers fast, accurate, and non-destructive measurement of coating thickness on both ferrous and non-ferrous metal substrates. Using magnetic induction and eddy current principles, it automatically detects substrate type and provides reliable data for quality control, paint inspection, and surface analysis.

Key Features:

- Dual measurement principles: Magnetic Induction (F) & Eddy Current (NF)

- Automatic substrate recognition

- High-contrast digital display with backlight

- Modes: Direct & Batch; Measurement Types: Continuous & Single

- Statistical data: Mean, Max, Min, Count, Standard Deviation

- 500 data memory with easy data deletion

- Integrated printer compatibility (optional)

- Zero-point and two-point calibration

- Audible operation alert and error alarm

- Low battery indicator, manual/auto shutdown

Ideal For:

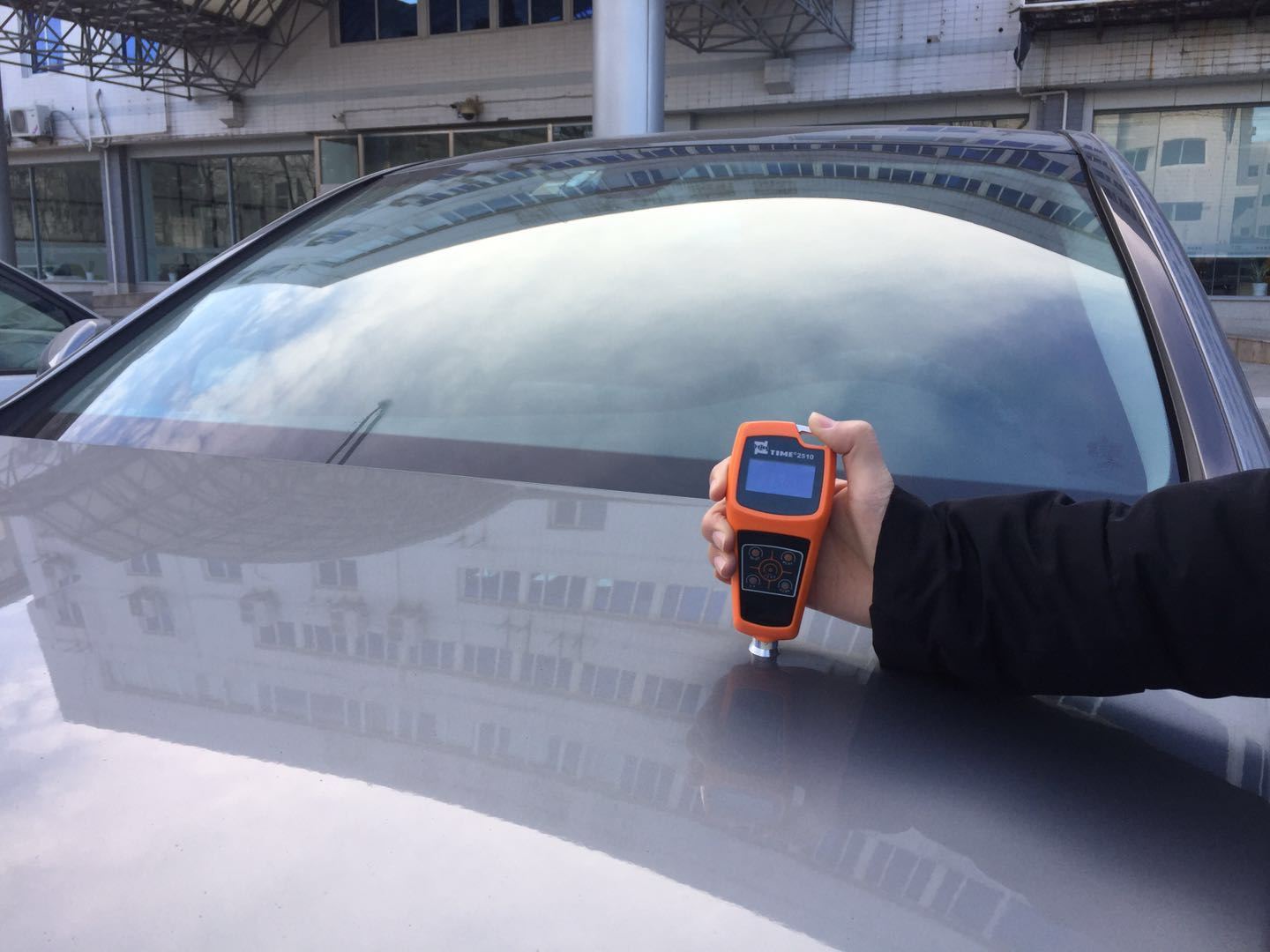

- Automotive paint inspection

- Industrial coating testing

- Manufacturing quality control

- Surface finish inspection

Standard Accessories Included:

- Main unit x1

- Substrates x2

- Calibration foil x1

- AAA 1.5V batteries x2

- TIME certificate x1

- Warranty card x1

- Instruction manual x1

Warranty: 6 Months

Brand: TIME Instruments

Technical Specification:

Probe types		F	N
Working principle		Magnetic induction	Eddy current
Measuring range		0-1250 μm	0-1250 μm, 0-40μm (for chrome plate on copper)
Minimum resolution		0.1μm
Tolerance	Zero point calibration H means the thickness of tested piece	±(3%H+1) μm	±(3%H+1.5) μm
Tolerance	Two points calibration H means the thickness of tested piece	±{(1-3)%H+1}μm	±{(1-3)%H+1.5}μm
Measuring condition	Min. curvature radius	Convexity 1.5 mm	Convexity 3 mm
	Min. area diameter	Φ7 mm	Φ5 mm
	Critical thickness of the base	0.5 mm	0.3 mm
Operating environment		Temperature: 0°C – 40°C
		Humidity: 20%-90%
		No strong magnetic field
Power		2 pcs AAA 1.5 V battery
Dimension		110 x 50 x 23 (mm)
Weight		100 g
