BELIMO LM230A OPEN-CLOSE NON-SPRING-RETURN DAMPER ACTUATOR 5NM, 230VAC, 50/60HZ

Kategori: BELIMO

Tersedia

Penerangan

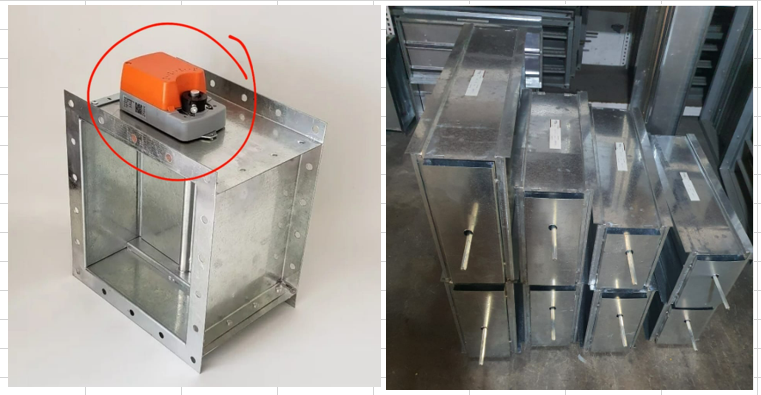

BELIMO LM230A OPEN-CLOSE NON-SPRING-RETURN DAMPER ACTUATOR 5NM, 230VAC, 50/60HZ

Replaced

LM230/LMU230

LM230A
Rotary actuator 5 Nm
AC 230 V, Open/close, 3-point
Running time motor 150 s / 90°
IP54, Manual override with push-button, can be locked
Connection Cable 1 m PVC
Direction of motion motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Mechanical interface Universal shaft clamp 6...20 mm

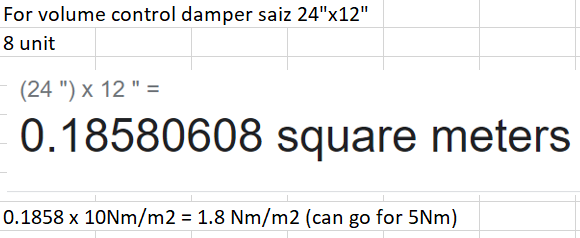

DAMPER ACUATOR SELECTION / CALCULATION

Nm = Damper area, m2 x 10Nm/m2
Calculate the torque required

And the spec required

Spring / non spring

Modulating /onoff

Model Selected

BELIMO LM230A OPEN-CLOSE NON-SPRING-RETURN DAMPER ACTUATOR 5NM, 230VAC, 50/60HZ (REPLACED:LM230/LMU230)
