Penerangan
100% fully copper wired motor
Heavy duty induction motor for heavy use and long lasting
Cast iron V-Twin pump with cast iron heads
Belt-drive single stage oil-lubricated pump for quietly and delivers long pump life
Portability with wheels for easy movement
Efficient heat removal from pulley-fan for cooler running
Two Outlets
Specifications

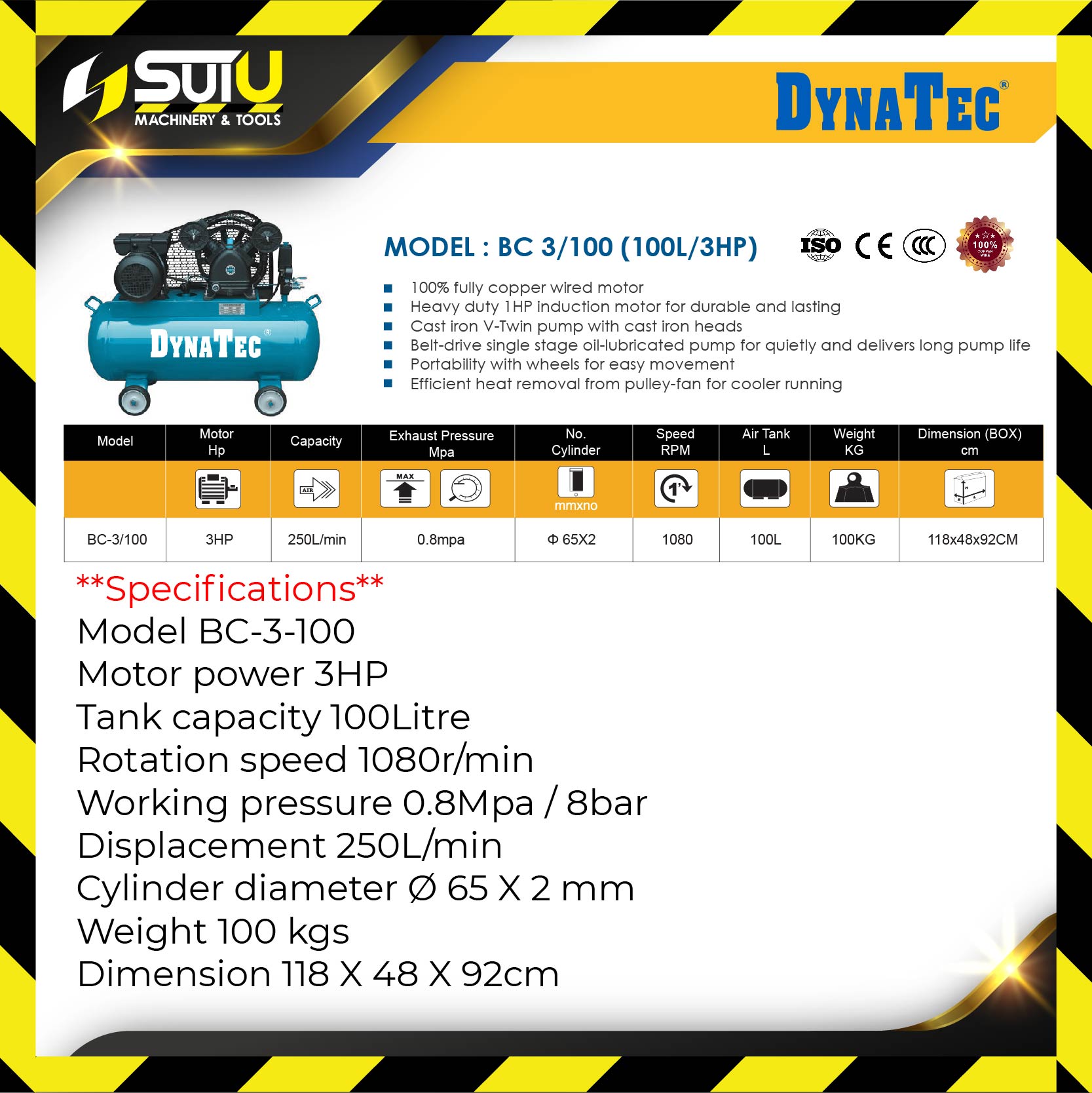

Model BC-3-100
Motor power 3HP
Tank capacity 100Litre
Rotation speed 1080r/min
Working pressure 0.8Mpa / 8bar
Displacement 250L/min
Cylinder diameter Ø 65 X 2 mm
Weight 100 kgs
Dimension 118 X 48 X 92cm
